O. Mustad & Son 3570

Mustad 3570 Double Fly Hook

Marks: P photographically · V verified · I inferred · E estimated · S speculative What they mean

Photographic record

3 photographs

Mustad 3570 Double Fly Hook — full hook profile showing sproat bend and tapered shank — size No. 2 — japanned black finish
IMG-2Mustad 3570 Size No. 2 Double Hook — Full Profile (P) Full view of the two recurved bends, paired points and barbs, and shanks converging at a blind terminal. Grid calibration and exact bend-family classification remain unconfirmed.

Identify

The Mustad Quality 3570 is identified on its photographed label as a double fly hook P. The example shown has two barbed points and a shared tapered terminal without a formed eye P. Its precise manufacture date, the faded package size mark and model-level market standing have not been established.

How to identify it

Look for “Qual. 3570” at the upper right of the label, the key-shaped Trade Mark emblem at left, and “Double Fly Hooks” in the main description P. “Superior” specifies the point style; “Tapered Japanned” states the advertised construction and finish P. The photographed size mark after “No.” is too faint to read reliably.

Measurements & specifications

Features of the model, as recorded
FeatureRecordedEvidence
EyeBlind — Tapered Shank
Show noteHide note

P No formed eye is visible. The shanks converge into a tapered terminal that appears rounded at its visible end; its cross-section is unknown.

OBS-1OBS-2
WireHeavy (1X Heavy), Round
ShankStandard — Tapered
BendSproat, Standard gap
Show noteHide note

P Both bends are smoothly recurved and broadly similar. I Their outlines may resemble a Sproat bend; the label does not name a bend family.

OBS-3LBL-5
PointSuperior
Show noteHide note

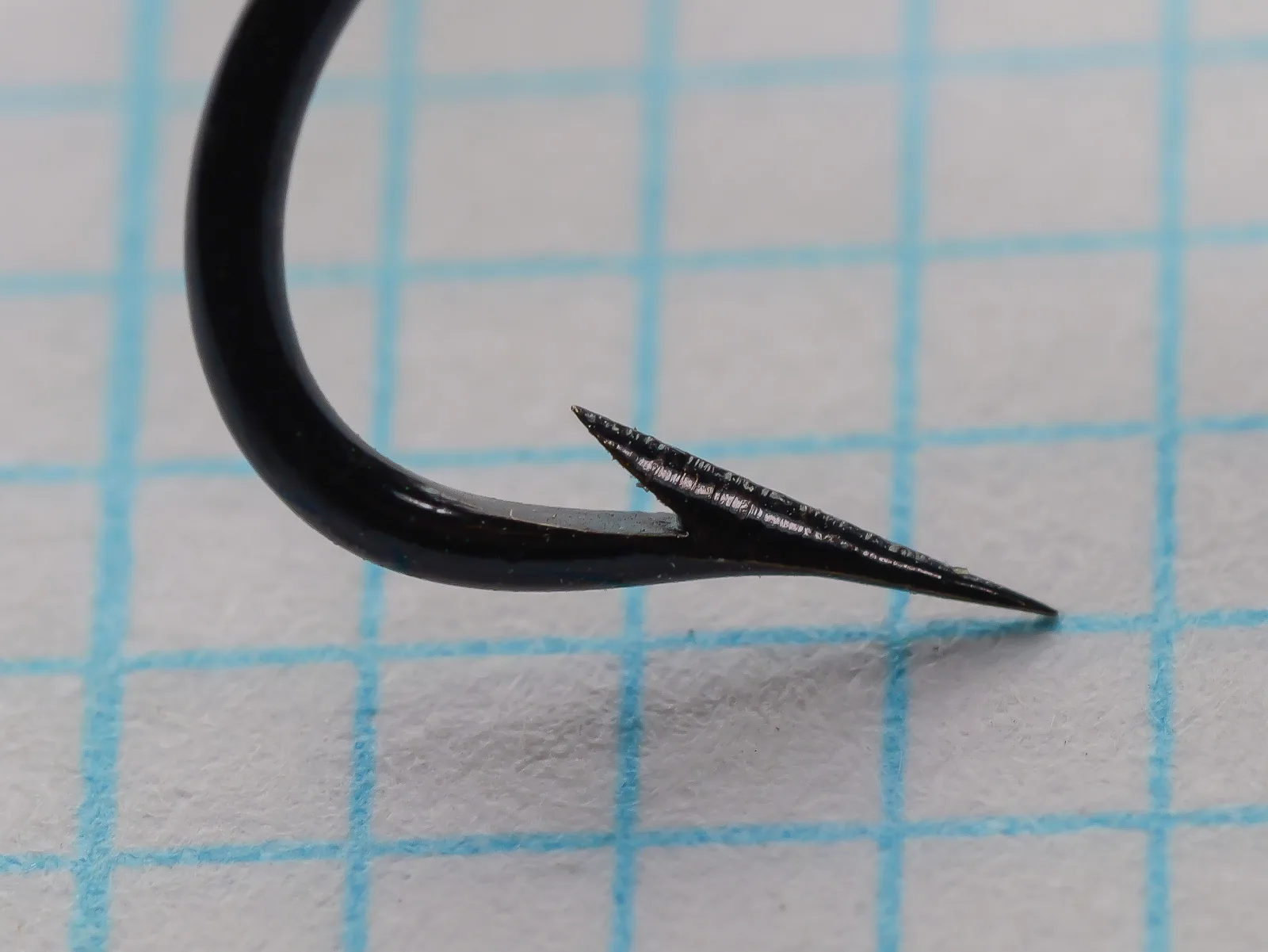

P Each point has one pronounced inner barb. In the close-up, the barb rises to an acute tip and slopes toward the hook point.

OBS-5
FinishBlack Japanned — stated on packaging
Show noteHide note

P The label specifies Japanned, and the hook appears glossy black with minor surface marks. Coating composition and originality are untested.

LBL-5OBS-6
ConstructionDoubleOBS-5

The photographed example has two smoothly recurved hook bends ending in separate barbed points P. The magnified point shows a long, nearly straight inner taper consistent with the “Superior” point terminology printed on the label P. Both shanks converge toward an eyeless terminal P; a tapered blind shank allows a leader attachment to be whipped to the shank rather than passed through an eye I. The label specifies a japanned finish, consistent with the hook’s glossy black appearance P. The exact bend classification, wire-grade designation and finish chemistry are not established by the photographs.

Measurements

Overall length31 mm PcaliperMEA-1
Shank length22.5 mm PcaliperMEA-3
Gap width9 mm PcaliperMEA-4
Wire diameter0.04 mm PcaliperMEA-5 Check: The evidence record measured 0.97 mm (MEA-5).

Size 2, specimen S1. Bend depth, weight and the shank-to-gap ratio are in the full table.

All recorded values
Per size, with how each dimension was taken
SizeOverall lengthShank lengthGap widthBend depthWire diameterWeightShank:gap
2Specimen S131 mm PcaliperMEA-122.5 mm PcaliperMEA-39 mm PcaliperMEA-4—0.04 mm PcaliperMEA-5 Check: The evidence record measured 0.97 mm (MEA-5)..455g Pmethod not recorded~2.49:1
How the measurements are defined
How hook dimensions are measuredA hook outline with dimension lines for overall length, shank length, gap, bend depth, and wire diameter.Overall lengthShank lengthGapBend depthWire diameter
Overall length
Eye to the farthest point of the bend.
Shank length
Eye to the start of the bend.
Gap
Point to shank, at right angles to the shank.
Bend depth
Shank to the bottom of the bend.
Wire diameter
Across the wire, measured by caliper where possible.
Own this hook? Help us measure it.

We have measurement for size 2. Know any others? Submit calipered measurements and we'll review and add them. Thank you!

Use & alternatives

  • Streamer / bucktail
  • Salmon
  • Sea trout

Primary application

The printed name “Double Fly Hooks” identifies the 3570 as a fly-hook pattern P. Its two barbed points and tapered blind shank are visible P. The supplied evidence does not identify particular flies, fish species or fishing conditions for this model.

Fly patterns

Atlantic Salmon wet flies, traditional streamer patterns, classic double-hook salmon flies

Label & packaging

Specimens, packaging, and label

This record documents one specimen. It describes that specimen only, not every example of the model.

S1 · Recorded size 2 double fly hook and associated label

Size
2 (from the existing record)
Container
Loose (no packaging)
Hook condition
(P) Two complete-looking barbed points, dark glossy finish and minor surface marks; actual sharpness and hidden corrosion untested.
Packaging condition
Fair — significant wear, partially legible
Measured
size 2
Photographs
IMG-1IMG-2IMG-3
Detailed condition observations
Wear
label perimeter, upper margin, lower border, and lower left: Brown-yellow spotting and discoloration occur around the printed border and on the paper. The lower paper edge is irregular and appears torn or roughly cut; localized surface wear and ink loss are visible. LBL-9

The hook and isolated label are grouped provisionally as one recorded specimen. Size 2 is the stored identity; the photographed size mark is not legible. The reverse and complete container have not been shown.

Full label transcription
LBL-1 printed · upper left, above key trademark from IMG-3
Trade
LBL-2 printed · upper right from IMG-3
Qual. 3570
LBL-3 printed · upper center, manufacturer block from IMG-3
O MUSTAD & SON
MANUFACTURERS
CHRISTIANIA - NORWAY
LBL-4 trademark · left column, beneath key trademark from IMG-3
Mark
LBL-5 printed · central product description from IMG-3
Superior
Double Fly Hooks
Tapered Japanned
LBL-6 printed · left lower margin, quantity and size fields from IMG-3
1/2 Gr.
No.
LBL-7 printed · bottom center from IMG-3
Made In Norway
LBL-8 handwritten · lower left, immediately right of No. from IMG-3
[?]
Trademark
Large black key-shaped emblem with rounded bow, straight stem and right-pointing toothed bit; printed Trade above and Mark below.
As entered on the specimen record
Trade
Qual. 3570
O MUSTAD & SON
MANUFACTURERS
CHRISTIANIA - NORWAY
Mark
Superior
Double Fly Hooks
1/2 Gr.
Tapered Japanned
No.
Made In Norway
Layout
Quality number at upper right; key trademark and Trade/Mark wording at left; manufacturer block in the upper center; product description centrally arranged; quantity and size field at lower left; Made In Norway at bottom. The initial O punctuation and printed In case remain uncertain.
Typeface
Manufacturer name is in heavy uppercase type; the product name is in large mixed-case type. Printed border uses a repeating dark ornamental motif.
Printed marks
Qual. 3570; 1/2 Gr.; No.; Made In Norway; repeating floral or snowflake-like border.
Later marks
Faint purplish mark following No.: [?]; its character cannot be confirmed.

Care of this specimen: Keep hook and label stored separately in dry, protective materials, with their photographic association documented. Avoid tape on the worn label.

Condition

P Both points and barbs appear complete, with minor surface marks on the black finish. The label has spotting, discoloration and an irregular lower edge; actual sharpness and hidden corrosion are untested.

Storage and Preservation

Keep the hook dry and avoid prolonged handling of the metal. Store the detached label flat in an archival sleeve or acid-free enclosure, without applying tape or adhesives to the paper. Keep a record linking the hook photographs and label so their association is not lost.

Inspect the dark finish and the label periodically for developing corrosion, staining or additional edge damage. Do not abrade the hook or attempt to clean the printed surface without suitable conservation advice.

Label and source analysis

Reading the Mustad 3570 Label

Source: Photographed Mustad Quality 3570 label (IMG-3); Christiania/Oslo naming reference (SRC-1)

The surviving label prints “Qual. 3570” at the upper right. At the left is a key-shaped Trade Mark emblem. The central text reads “O MUSTAD & SON,” “MANUFACTURERS,” “CHRISTIANIA – NORWAY,” “Superior,” “Double Fly Hooks,” and “Tapered Japanned” P. A period after the initial O is uncertain, and the photograph does not show a diaeresis in SON.

At left the quantity reads “1/2 Gr.”, meaning a nominal half gross of 72 hooks, above a “No.” size field whose marking is too faint to transcribe P. “Made In Norway” appears along the bottom P. “Superior” denotes the point style rather than a product-quality grade. “Tapered Japanned” records the specified shank construction and finish.

“CHRISTIANIA – NORWAY” is useful dating context: the city adopted the official name Oslo on January 1, 1925 V. The wording alone does not date manufacture of Quality 3570 or establish the last use of this label design.

History & dating

Series

The surviving label identifies Quality 3570 as “Double Fly Hooks” and prints the terms “Superior” and “Tapered Japanned” P. This record contains no dated Mustad catalog entry fixing the model’s introduction, discontinuation or position in a wider numbered series.

Design lineage

In the photographed example, the paired bends lead into two shanks that converge toward a shared blind terminal P. The construction is consistent with attaching a leader directly to the shank rather than through a formed eye I. No documented predecessor or successor for Quality 3570 has been established in this record.

Dating

P The label reads CHRISTIANIA - NORWAY. V The city officially changed its name to Oslo on January 1, 1925. The imprint alone does not establish when this label was printed or ceased to be used, or when Quality 3570 was manufactured.

O. Mustad & Son — The label identifies CHRISTIANIA - NORWAY P. The name Oslo became official on January 1, 1925 V, but the label does not establish the production years of Quality 3570. Read the maker’s history →

Value & buying

6 / 10CollectabilityRarity: Scarce

The model has a documented double-hook, tapered blind-shank configuration P. This record does not establish how hard Quality 3570 is to find or how strongly collectors seek it.

Basis: This record does not establish model-level scarcity or collector demand.

Keep the identifying label with the hook: “Qual. 3570” and the printed construction and finish terms supply information that cannot all be read from the metal alone P. The record does not establish the model’s frequency of appearance in collections or the degree of collector demand. Condition and completeness should be assessed for each physical example rather than used to assign the model a rarity rating.

No recorded sold sales for Quality 3570 appear in this evidence record. A sold-price value range is therefore not established.

Where to find

When comparing prospective examples, check the exact Quality 3570 code and the wording on the accompanying label. For valuation, retain dated completed-sale records rather than listing prices.

Sources & research

Sources & documentation

This specimen and its packaging — photographed, 3 images
Supports: Quantity per packageConstructionIs snelledFinishBendEye
+24 morefewerBarbCondition notesShank gap ratioMeasurement notesDating rangeManufacturer period contextPackagingCollectability summaryRarity basisMarket value lowMarket value highMarket sold observationsMarket value basisMarket value notesWhere to findFun fact titleFun factSummaryIdentificationTechnical notesSeries historyDesign lineagePrimary applicationCollectability detail

Open questions

  1. Do you have a dated Mustad catalog listing Quality 3570?The label establishes the model but not its first or last catalog appearance, complete size range or catalog bend designation.Can you help? Send scans showing the catalog cover/date and the page containing Quality 3570.
