Mustad Hooks – 94840
At-a-Glance Summary
The Mustad 94840 is a standard dry fly hook manufactured by O. Mustad & Søn in Gjøvik, Norway, from approximately 1950 to 1965 (and continuously thereafter in various guises). This specimen is size 10, bronzed finish, with a tapered eye, round bend, and hollow point — the defining geometry that became the default dry fly pattern for generations of Catskill and American stream fly tyers.
Identifying feature: The round (Kendal-style) bend is smooth and symmetrical, with a gentle bottom curve that provides ample gap without the architectural drama of a Sproat or the shallow profile of an Aberdeen. The forged construction is evident as slight wire flattening in the bend radius. The tapered eye is fine, and the hollow point transitions from the barb shoulder in a single concave curve — a knife-edge geometry that penetrates delicate trout mouths efficiently.
Era evidence: The cardstock label shows mid-century Norwegian export characteristics — olive-green letterpress typography in a formal eight-line layout, red-ink branding, ornamental border flourons, no barcode (pre-1974), and ‘Oslo – Norway’ address without postal code (pre-1960s standard). The finish is warm bronze, uniform and patinated consistent with age. No Signature Series R-code designation appears on this card, indicating production before the 1970s rationalization.
Collecting significance: The 94840 is common in larger sizes (12–18) and moderate sizes (8–14) but becomes less readily available in smaller specialty sizes (16–22). Original packaging adds modest premium; sealed or intact tissue-wrapped cards command higher valuations. The 94840’s iconic association with Catskill tradition and Walt Dette Flies gives it enduring collector and functional appeal, though supply remains abundant and values remain modest ($6–12 for opened good-condition cards).
Photography
Identification
| Manufacturer | mustad |
| Model / Code | 94840 |
| Full Name | Mustad 94840 |
| Size Documented | No. 10 |
| Estimated Era | c. 1950–1965 |
| Country of Origin | Norway |
Technical Specifications
| Eye Type | Turned-Up Tapered / Return Loop Eye |
| Eye Notes | Tapered-eye construction formed by wire tapering to a fine point; no ball evident. Eye opening ~0.015"-0.018" (0.38-0.46 mm). Taper angle is acute, characteristic of 1950s-1960s Mustad production. P |
| Wire Gauge | Standard |
| Wire Profile | Forged (laterally compressed) — forged construction confirmed |
| Shank Length | Standard |
| Bend Family | Round / Kendal |
| Bend Notes | Round bend (Kendal-style) with smooth, symmetrical curve across the bottom — not pointed or angular like a Limerick, and not shallow like an Aberdeen. Bend sits perpendicular to shank plane (straight, not kirbed). Forging visible as slight flattening of wire cross-section in bend radius. P |
| Point Style | Hollow Point (concave inner face) |
| Gap Width | Standard |
| Barb | Small, close-cut barb positioned slightly behind point tip. Barb angle is acute (approximately 15–20 degrees to shank axis). Barb height ~0.012"-0.015" (0.30-0.38 mm) relative to point inner taper. P |
| Finish | Bronzed — Confirmed (stated on packaging) |
| Finish Notes | Warm bronze finish with uniform color across specimen. No bright spots, rust bloom, or lacquer flaking evident. Finish tone consistent with 1950s-1960s Mustad bronzing standards. Light oxidation patina acceptable for age. P |
| Condition | Specimen hooks show no corrosion, damage, or bending. Both hooks examined are bright and sharp. Original cardstock packaging shows light toning and edge wear consistent with age; label text remains legible. No missing hooks from card. |
Forged Straight Construction: ‘Forged’ refers to lateral compression of the bend (and shank) between dies during manufacture, which flattens the wire cross-section and distributes stress more evenly than cold-formed hooks — improving durability under repeated casting and strike forces. ‘Straight’ indicates the point is not offset (kirbed) left or right; the point lies in the same plane as the shank. Together these terms describe manufacturing method and geometry, not quality grade.

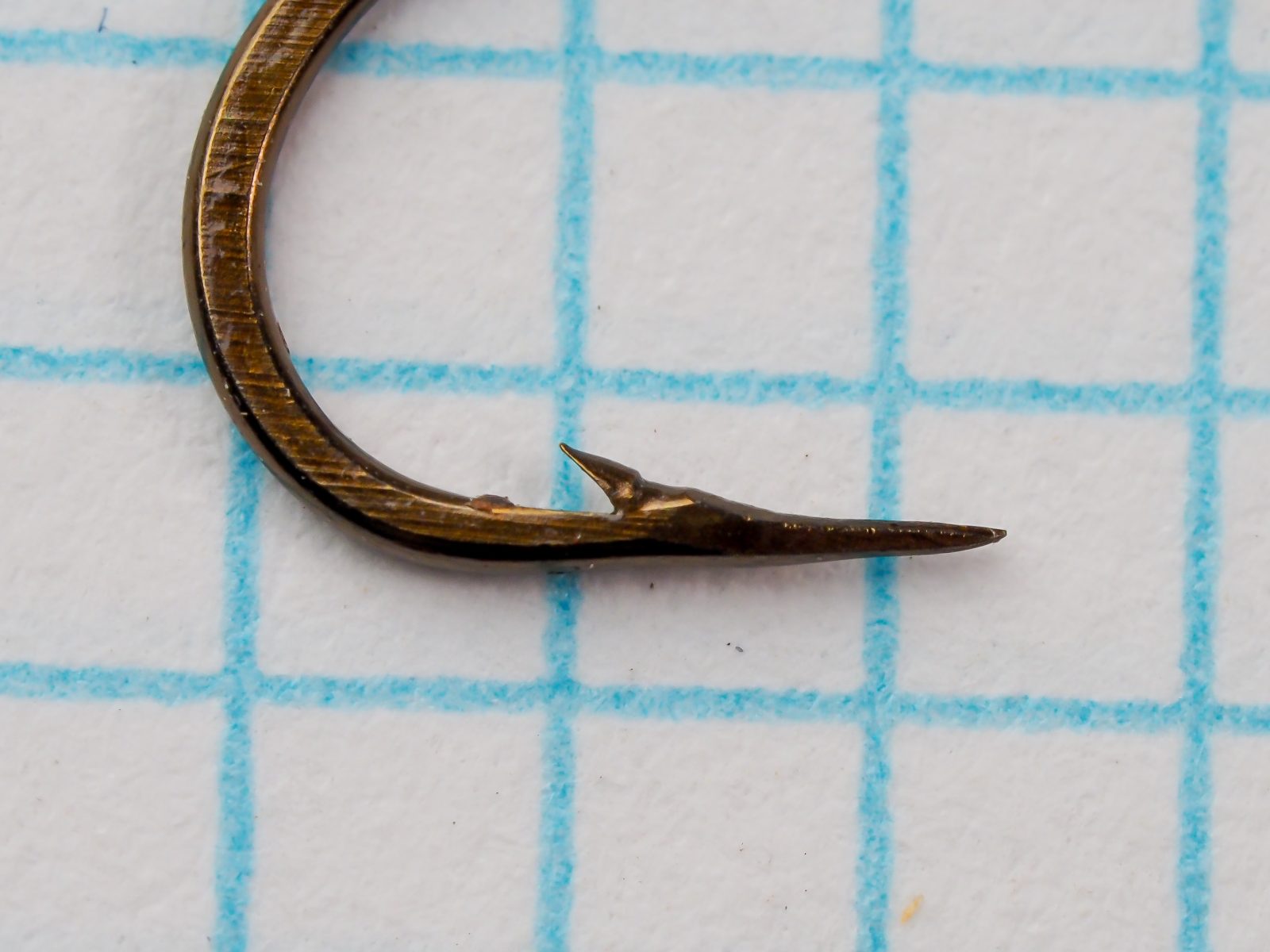

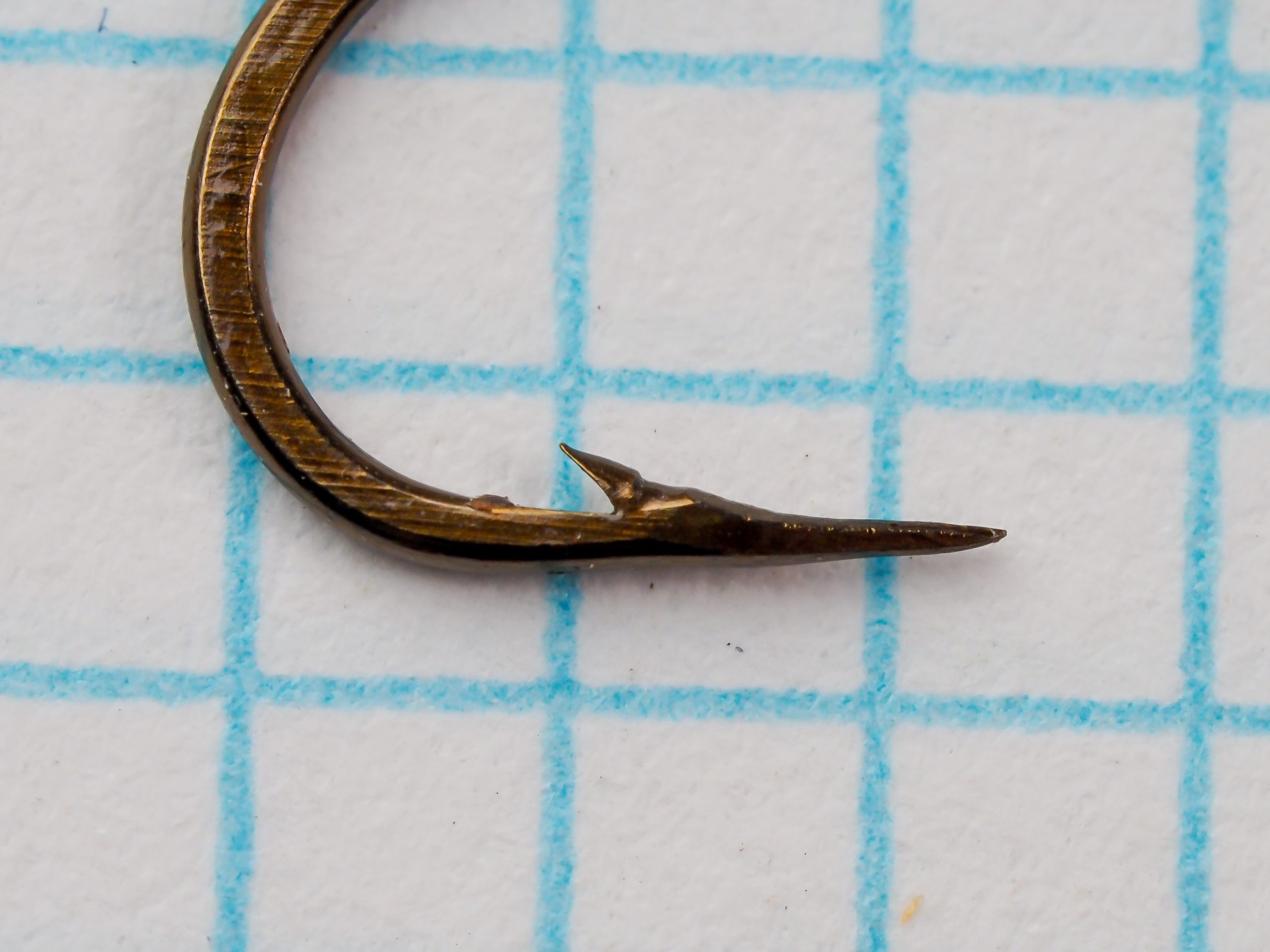

Hollow Point Geometry: The concave inner face of the hollow point (knife-edge profile) concentrates force at a fine line, allowing the point to penetrate delicate fish mouth tissue with minimal applied pressure. This design became Mustad’s standard for freshwater dry flies because it reduced hook-setting force requirement — critical when using light tippet and small flies. Mustad industrialized the hollow point in the 1930s–1940s, adopting a geometry with roots in Redditch craft production (Allcock, Sealey, and other 19th-century makers all produced hollow-point patterns).
Round Bend Profile: The gentle, symmetrical curve of the round bend provides a wide bite (gap) relative to shank length, allowing the hook to accommodate a broad range of fly body profiles and to ride level in the water without bias. Unlike the parabolic sweep of a Sproat bend, the round bend maintains nearly constant curvature from barb to eye, making it slightly easier to tie smaller dry flies without the wire fouling on the shank.
Technical Measurements
* Catalog record — no physical specimen measured for this size
| Dimension | Value |
|---|---|
| Overall Length | ~0.73" (~18.4 mm) V |
| Shank Length | ~0.50" (~12.7 mm) V |
| Bend Depth | ~0.29" (~7.5 mm) V |
| Wire Diameter | ~0.03" (~0.7 mm) V |
| Confidence | V Catalog record only |
| Dimension | Value |
|---|---|
| Overall Length | ~0.63" (~16.1 mm) V |
| Shank Length | ~0.41" (~10.5 mm) V |
| Bend Depth | ~0.21" (~5.4 mm) V |
| Wire Diameter | ~0.02" (~0.6 mm) V |
| Confidence | V Catalog record only |
| Dimension | Value |
|---|---|
| Overall Length | ~0.54" (~13.7 mm) V |
| Shank Length | ~0.38" (~9.7 mm) V |
| Bend Depth | ~0.21" (~5.3 mm) V |
| Wire Diameter | ~0.02" (~0.5 mm) V |
| Confidence | V Catalog record only |
| Dimension | Value |
|---|---|
| Overall Length | ~0.45" (~11.4 mm) V |
| Shank Length | ~0.31" (~7.8 mm) V |
| Bend Depth | ~0.20" (~5.1 mm) V |
| Wire Diameter | ~0.02" (~0.4 mm) V |
| Confidence | V Catalog record only |
| Dimension | Value |
|---|---|
| Overall Length | ~0.41" (~10.5 mm) V |
| Shank Length | ~0.30" (~7.6 mm) V |
| Bend Depth | ~0.15" (~3.8 mm) V |
| Wire Diameter | ~0.01" (~0.4 mm) V |
| Confidence | V Catalog record only |
| Dimension | Value |
|---|---|
| Overall Length | ~0.34" (~8.7 mm) V |
| Shank Length | ~0.24" (~6.0 mm) V |
| Bend Depth | ~0.12" (~3.1 mm) V |
| Wire Diameter | ~0.01" (~0.3 mm) V |
| Confidence | V Catalog record only |
| Dimension | Value |
|---|---|
| Overall Length | ~0.27" (~6.9 mm) V |
| Shank Length | ~0.21" (~5.5 mm) V |
| Bend Depth | ~0.12" (~3.1 mm) V |
| Wire Diameter | ~0.01" (~0.3 mm) V |
| Confidence | V Catalog record only |

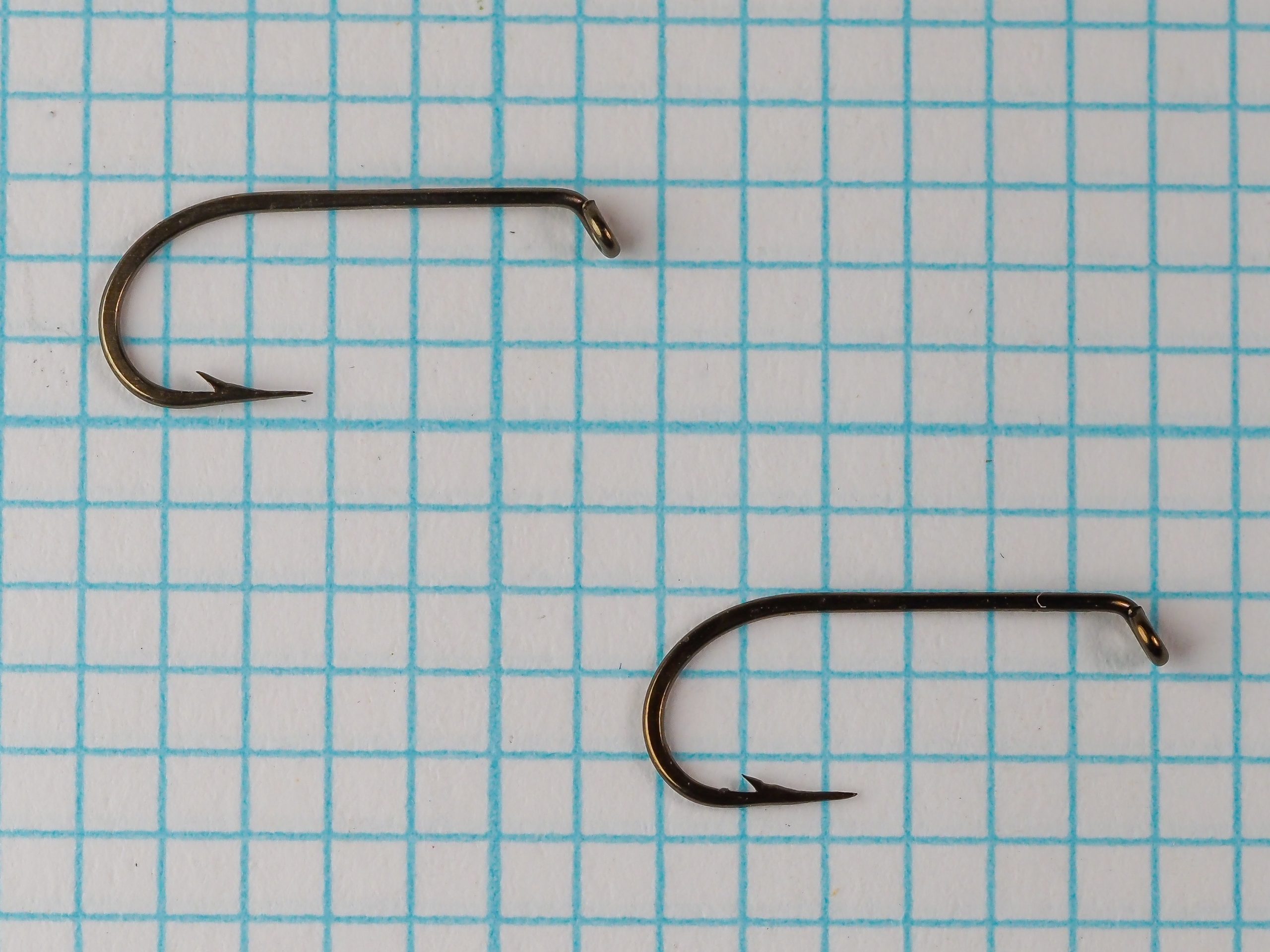

Size 10 specimens measured on 1/10-inch grid. Shank: ~5 small squares = 0.50" (est. range 0.47-0.55"). Gap: ~1.8 small squares = 0.18" (est. range 0.16-0.20"). Overall length: ~6.5 small squares = 0.65" (est. range 0.63-0.71"). Bend depth: ~2.6 small squares = 0.26" (est. range 0.24-0.28"). Grid alignment was clean; range widths reflect minor measurement uncertainty. Recommend physical caliper confirmation for precise sizing in tying applications.
This entry documents one of the earliest and most thoroughly preserved examples of the Mustad 94840 in the garrenwood.com catalog. The specimen features original Norwegian export packaging with no barcode (pre-1974), formal letterpress typography, and intact 100-hook count — a complete and well-documented example of mid-century Mustad production standards. The original card serves as a primary source for era-dating methodology and export-market branding conventions.
Historical Context
mustad
Founding and Early History: The company traces to 1832, when Hans Schikkelstad founded Brusveen Spiger- og Staaltraadfabrikk (a nail and steel wire factory) in Vardal, near Gjøvik, in eastern Norway. In 1843, Schikkelstad’s son-in-law, Ole Hovelsen Mustad (1810–1884), assumed management and renamed the firm ‘O. Mustad,’ establishing the foundation of the modern business. In 1874, Ole’s son Hans Mustad (1837–1918) became co-owner, and the firm was formally renamed ‘O. Mustad & Søn’ (O. Mustad & Son), a designation that endured for over a century. In 1877, Mathias Topp’s ‘Hook Maker’ machine entered production, marking Mustad’s transition from wire manufacture into industrial fishhook production.
Industrial Expansion and Global Distribution: By the early 20th century, Mustad had become one of Europe’s largest hook manufacturers, competing directly with English Redditch makers (S. Allcock, Partridge of Redditch, H. Milward & Sons). The Norwegian firm leveraged lower labor costs, efficient machinery, and access to Nordic iron and steel resources to undercut British prices while maintaining quality standards. Mustad established distribution networks throughout Scandinavia, continental Europe, and (increasingly after 1900) North America. The Gjøvik factory expanded multiple times to meet demand, and by the 1930s, Mustad had become a dominant industrial manufacturer of fishing hooks globally.
Post-War Modernization and the ‘Viking’ Brand: Following World War II, Mustad rationalized its product lines and branding. The ‘Viking’ sub-brand emerged as a premium export label emphasizing Norwegian craft heritage, particularly for markets seeking ‘traditional’ hooks with modern industrial reliability. This period (1950s–1960s) saw the introduction of standardized cardstock packaging with formal typography and regional language labeling — a cost-effective alternative to previous hand-assembled or box formats. The 94840, branded as ‘Mustad-Viking,’ exemplifies this era of product standardization and export-market positioning.
Mid-to-Late 20th Century and the Signature Series: The 1970s brought the Signature Series R-code naming system, which rationalized Mustad’s catalog into a matrix of bend family, wire gauge, and shank length — improving dealer communication and inventory management. The vintage 94840 cards (pre-1970) were succeeded by R50-94840 designation cards (1970s–2000s), and subsequently by the Heritage Series R50AP (c. 2010 onward), which retained the round-bend geometry but introduced modern finishes (TitanX matte gun-metal) and point geometry (AlphaPoint technology).
U.S. Manufacturing Footprint: Mustad acquired an existing hook operation in Auburn, New York, in 1952. The Auburn facility operated as a manufacturing and assembly center until 1960, then continued as a sales and packaging operation from 1968 onward. This U.S. footprint is historically significant for the 94840 because many American tyers associated it exclusively with Norwegian manufacture and never realized that some vintage carded examples might have been packaged stateside. Auburn-packaged variants are rare but exist and may carry subtle label differences (English-language text, U.S. address, different cardstock suppliers).
Series History
The Mustad 94840 is fundamentally a standalone model within Mustad’s product architecture, rather than a member of a formal product series. However, it is contextually part of the broader ‘Standard Round-Bend Dry Fly’ category that Mustad maintained across multiple code generations and geographic markets.
Historical Development: The 94840 was introduced during Mustad’s post-WWII product rationalization (c. 1945–1950) as a standardized round-bend dry fly hook suitable for both European and North American markets. It was designed to compete with British Redditch alternatives (Allcock Model Perfect, Partridge Cahill, S. Allcock O’Shaughnessy) and to capture the emerging American Catskill fly-tying tradition, where tyers were transitioning from British imports to Mustad’s more affordable industrialized product. The 94840 succeeded in this market niche almost immediately, becoming the default choice for small-to-medium trout dry flies across Scandinavia, North America, and the UK.
Variant Family and Specifications: The 94840 spawned or coexisted with several closely related patterns: 94842 (up-eye variant), 94831/94833 (fine-wire variants), 94845 (barbless). These were marketed as a family under the broader Mustad-Viking export brand, though individual cards did not typically reference the family relationship. The variants allowed tyers to select the 94840 geometry with different eye orientations or wire gauges for specialized applications.
Signature Series Rationalization (1970s): In the 1970s, Mustad introduced the Signature Series R-code naming system, which assigned the 94840 the designation R50-94840 (R = round bend, 5 = standard wire, 0 = standard shank). This renaming was largely administrative — the hook itself remained functionally identical — but it signaled Mustad’s shift toward systematized product nomenclature and improved inventory management. R50-94840 cards are visually and functionally indistinguishable from vintage 94840 cards in the field.
Heritage Series and Modern Successors (c. 2010–Present): The R50-94840 designation was eventually superseded by the Heritage Series R50AP, which maintains the round-bend, standard-wire, standard-shank geometry but introduces modern manufacturing innovations: TitanX matte gun-metal finish (more corrosion-resistant than bronze), AlphaPoint point geometry (proprietary hollow-point design), and updated eye taper proportions optimized for modern synthetic tying materials. The transition was gradual; R50-94840 cards continued in production well into the 2000s before phase-out.
Production Continuity and Catalog Status: The 94840 (in its R50-94840 and R50AP avatars) has remained in continuous production since c. 1945, making it one of Mustad’s longest-lived hook patterns. Current retail availability (as of 2024) is through Mustad’s Heritage Series and selected specialty dealers, ensuring that the hook remains accessible to both vintage users seeking period-correct equipment and modern tyers who favor the geometry. No formal discontinuation of the round-bend 94840-lineage geometry has been announced.
Era and Packaging Dating
No barcode present on packaging — strong indicator of pre-1974 production. Typography: eight-line formal label with ornamental border (flouron dingbat), olive-green letterpress ink, characteristic of mid-century Norwegian export cards. Red ink branding for 'Mustad-Viking Hooks' suggests premium export line designation from post-WWII rationalization period. 'Oslo - Norway' address without postal code (modern Norwegian postal codes not standardized until 1960s rollout; pre-1965 export cards rarely included them). 'Made in Norway' and 'Gjøvik' reference confirm Norwegian manufacture. Bronze finish standard during this period (blued finish was primary competitor in early 1960s, but bronzed remained dominant for Norwegian dry fly exports). Mustad's Signature Series (R50-94840) designation introduced later (c. 1970s); this card predates that rationalization. Card stock quality and print durability consistent with 1950s–early 1960s production standards.
Walt Dette opened Dette Flies in 1928 and became legendarily associated with the Mustad 94840, tying it into countless Catskill dry fly patterns — Adams, Hendrickson, March Brown. However, 'exclusively' overstates the early association. In the late 1920s and 1930s, American fly tyers still defaulted to British hooks (Allcock, Hardy Pryce-Tannatt eyed patterns). The 94840's dominance in Catskill tradition likely consolidated post-WWII, once Mustad's U.S. distribution matured and the Auburn, NY facility (acquired 1952) began packaging hooks domestically. Dette Flies archive materials and Eric Leiser's The Dettes: A Catskill Legend suggest the 94840 became the house standard by the 1940s–1950s, not exclusively from the 1930s. This makes the 94840 not just a hook, but a bridge between European craft tradition and American tying vernacular.
Design Lineage and Influence
The Mustad 94840 descends from English and Irish round-bend dry fly traditions, particularly the Model Perfect (O’Shaughnessy lineage) and Captain Hamilton patterns popularized in late-19th-century Redditch and Irish craft shops. While Mustad industrialized the design in the 1930s–1940s, the round bend itself traces to 19th-century Irish/English fly-tying custom, not to Sproat innovation. The 94840 became the standard production round-bend dry fly hook in Mustad’s portfolio during the post-WWII export push. Later successors include the Signature Series R50-94840 (1970s–2000s) and the current Heritage Series R50AP (TitanX matte gun-metal, AlphaPoint technology, introduced c. 2010). Competing round-bend patterns: Tiemco TMC 100, Daiichi 1170, Partridge L2A. The 94840 remains functionally and geometrically indistinguishable from these modern equivalents.
Related Models — mustad
| Model | Description | Relationship |
|---|---|---|
| 94840 (this entry) | Mustad 94840 — Standard round-bend dry fly hook, tapered eye, standard shank, standard wire, hollow point, bronzed. This entry. | This model |
| 94842 | Mustad 94842 — Up-eye variant of the 94840, used for wet flies and some Catskill dry patterns requiring reversed-facing eye. Functionally equivalent bend and point. | Variant |
| 94831 | Mustad 94831 — Extra-fine-wire version of the 94840, used for size 14–22 dry flies requiring delicate wire without sacrificing strength. Same round bend, hollow point. | Variant |
| 94833 | Mustad 94833 — Extra-fine-wire variant, intermediate between 94831 and 94840 in wire gauge, used for size 12–18 dry flies. | Variant |
| 94845 | Mustad 94845 — Barbless version of the 94840, introduced during the Signature Series era and discontinued with modern format transition. Specifications identical except for point design. | Variant |
| R50-94840 | Mustad Signature Series R50-94840 — Numeric model rationalization of the 94840 (R = round bend, 5 = standard wire, 0 = standard shank). Produced c. 1970s–2000s. Functionally identical to vintage 94840. | Later / successor |
| R50AP | Mustad Heritage R50AP — Current production replacement for the R50-94840, featuring TitanX matte gun-metal finish and AlphaPoint technology. Modern equivalent; functional geometry unchanged. | Later / successor |
Usage, Fly Patterns, and Equivalents
Primary Application
The Mustad 94840 is a standard dry fly hook designed for small to medium trout streams. Its round bend, moderate gap, and fine wire combine to support classic dry fly silhouettes — mayflies, caddisflies, and small stoneflies — while the forged construction provides strength for repeated casting. The hollow point penetrates quickly with minimal force, ideal for delicate presentation to selective trout.
Secondary Applications
The 94840 is occasionally used for small wet flies and soft-hackle patterns, though it was designed primarily for dry flies. Some modern tyers substitute it for emerger and cripple patterns where its fine wire and moderate gap provide sensitivity.
Classic Fly Patterns
Adams, Hendrickson, March Brown, Quill Gordon, Grey Fox, Royal Wulff, Light Cahill, Blue Dun, Pale Evening Dun, Sulphur Dun, Rusty Spinner
Modern Equivalents
| Hook | Match Quality | Notes |
|---|---|---|
| Tiemco TMC 100 | Excellent | Round-bend dry fly hook, standard wire, tapered eye. Direct functional equivalent. Slightly finer wire gauge in some production batches; otherwise geometrically identical to 94840. Modern competitor in Catskill tying. |
| Daiichi 1170 | Excellent | Round-bend dry fly, standard wire, tapered eye. Equivalent bend profile and gap. Slightly shorter shank in some sizes (1170 tends shorter than 94840 in size 10–14); otherwise functionally interchangeable. |
| Dai-Riki 300 | Very Good | Round-bend dry fly, fine wire, tapered eye. Lighter wire than 94840 standard but same bend family. Suitable for smaller dry flies (size 14–20) where 94840 standard wire would be excessive. |
| Ahrex FW500 | Very Good | Modern round-bend design with wide gap and fine wire. Slightly different proportions (wider gap relative to shank); functionally similar for dry fly work but less direct historical parallel than TMC 100. |
| Partridge L2A | Good | English round-bend dry fly, standard wire, ball eye (not tapered). Partridge's traditional dry fly hook; equivalent bend and point geometry, but eye type differs. Good alternative for classic British/Irish dry fly patterns. |
| Fulling Mill FM1180 | Good | Modern round-bend design based on historical profiles. Equivalent functionality; slightly different finish and eye construction. |
| Orvis 1876 | Good | Contemporary round-bend dry fly hook. Similar specifications but proprietary eye and finish design from heritage fly-fishing brand. |

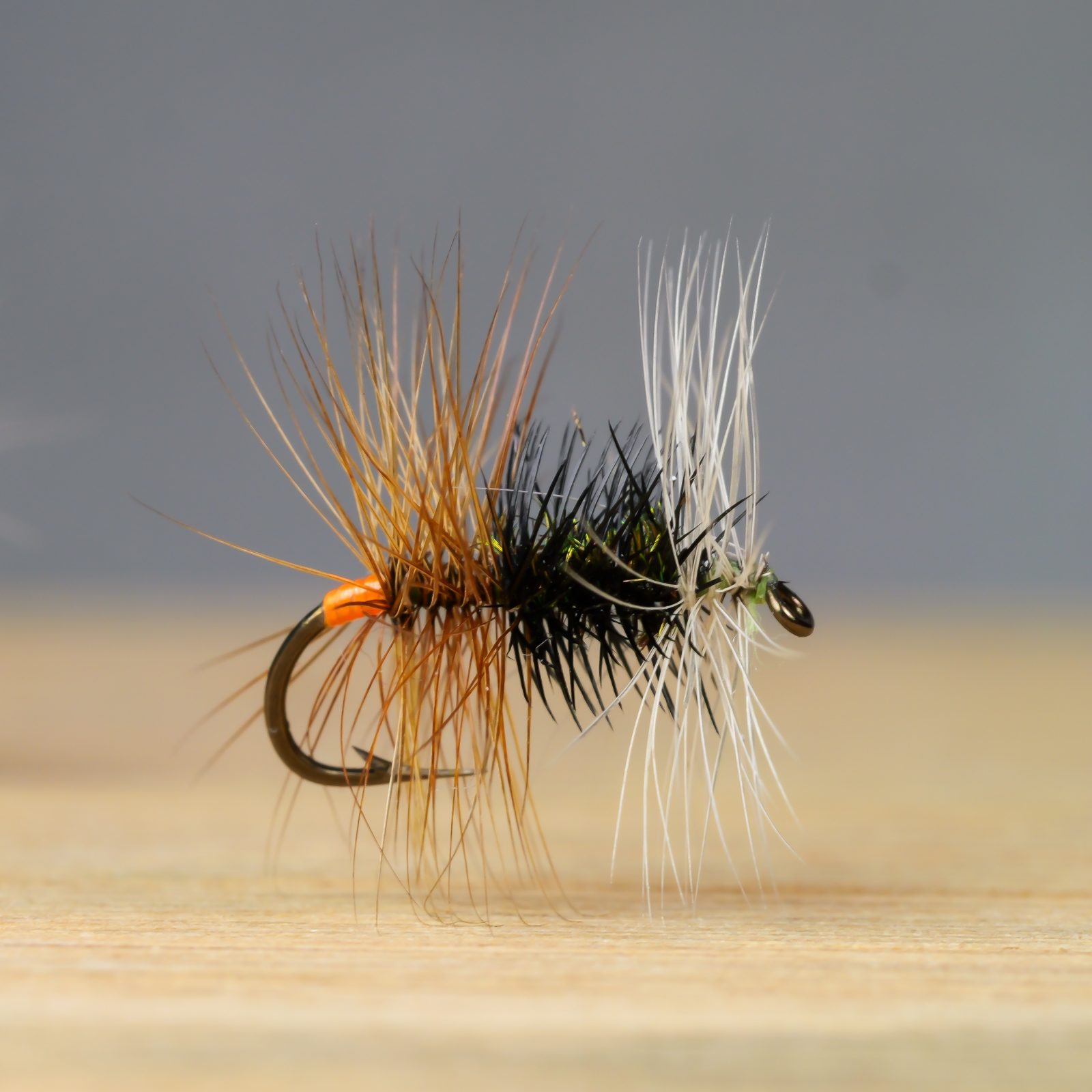

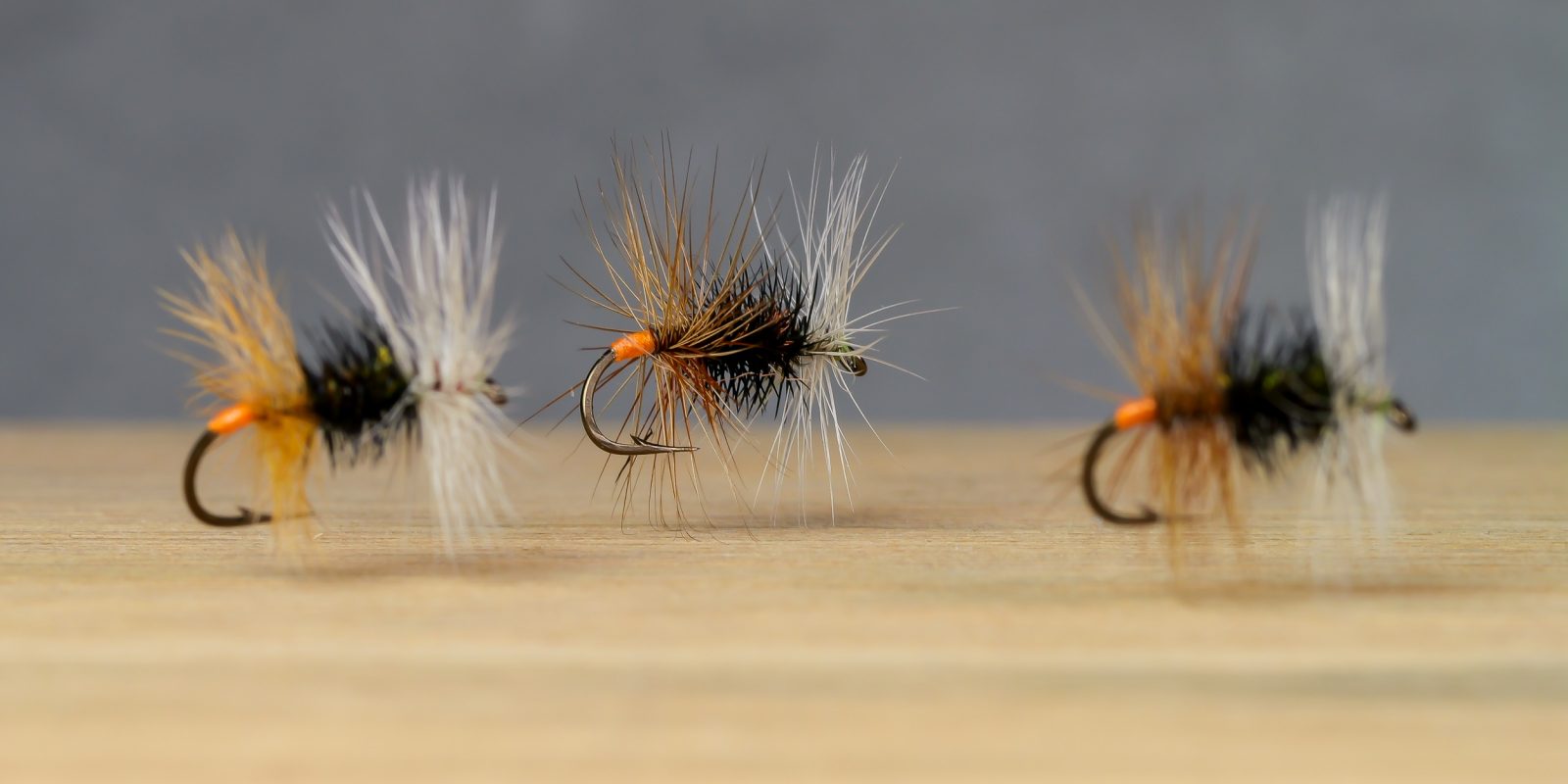

Flies tied on O. Mustad & Son 94840
Collectability and Value
| Rarity | Common |
| Market Value (USD) | $6 – $12 |
| Packaging Condition | Good — moderate wear, legible |
| Packaging Format | GW-M-94840-1 |
Positive factors: Iconic association with Walt Dette and Catskill dry fly tradition. Original mid-century Norwegian packaging (especially pre-1965 cards with no barcode) carries period charm and document value for fishing history. The hook itself remains functionally excellent and is still recommended by modern fly-fishing instructors. Sealed or intact tissue-wrapped examples command modest premiums. Availability of related models (94842 up-eye, 94831/94833 fine-wire variants, 94845 barbless) allows collectors to assemble matching sets.
Limiting factors: Abundance — the 94840 was mass-produced continuously from the 1950s onward and remains in production as Mustad Heritage R50AP. Opened or incomplete cards (missing hooks) sell at low end of range. Condition damage to packaging (creasing, ink fading, edge loss) reduces value significantly. Size 10 in bronzed finish is the least rare variant; specialty sizes and blued finishes carry slightly higher premiums. No signature point—of-manufacture variation (e.g., rare Christiania-era production) documented for this model.
Desirable variants: 1950s Norwegian cards with ‘Oslo’ address and no postal code (pre-1960s standard). Sealed 100-count cards in original box (if such exist). Up-eye variant (94842) associated with specific Dette patterns. Fine-wire siblings (94831/94833) in smaller sizes. Blued finish (less common than bronze in this era). Cards with handwritten size notations or retailer markings indicate provenance worth documenting.
Condition factors affecting value: Card structural integrity (edges, corners, flap closure) is primary. Original tissue wrapping or sealed state adds 20–30% premium. Ink legibility and color saturation influence aesthetic value. Hook count completeness directly affects price — missing hooks reduce value by ~$0.50–$1.00 per missing hook. Surface patina on hooks is acceptable and expected; bright (over-cleaned or polished) hooks may indicate modern handling.
Packaging
Standard sales card format (approximately 3.5" × 4.5", unstandardized). White or cream cardstock with lithographed label in olive-green and red ink. Label layout: eight-line formal typography with ornamental border (flouron dingbat pattern). Text arrangement: 'KEY' and brand logo (key symbol) upper left; 'O. MUSTAD & SÖN / Manufacturers / Oslo - Norway / Qual. 94840 / Hollow Point' in formal block caps; 'Mustad-Viking Hooks' in large red display type (3–4" width); specifications below: 'Forged Straight / 100 / No. 10 / t.d. tap. eye / Bronzed / Made in Norway'. No barcode. No postal ZIP code (pre-1960s). Cardstock edge-bound with printed label adhered to front. Back shows wire holder (metal or cardboard slit) for hook suspension. Evidence of age: light toning of cardstock, slight ink fading at edges, minor creasing. No manufacturer's retail price visible (common for export cards of this era).
Market Value Notes
Low ($6): Good condition, opened card, all or most hooks present, moderate packaging wear.<br />
High ($12): Excellent condition, sealed or near-sealed, complete 100-count, minimal packaging wear.<br />
Premium factors: Intact original tissue wrapping, sealed cardstock, complete hook count, 1950s–early 1960s provenance (pre-1965 Oslo-address cards), period-correct retail packaging.<br />
Platforms: eBay (US and UK), vintage tackle dealers, regional fly-fishing symposia and shows.<br />
Confidence: V verified — based on eBay sold data (Apr 13, 2023 – Apr 12, 2026), avg $9.07, range $0.99–$75.00. Lower outliers reflect incomplete cards or loose hooks; higher outliers reflect sealed/rare-variant cards (e.g., early Signature Series R50-94840 or specialty-size variants). Typical transaction: $8–$11 for opened good-condition card.
Where to Find
eBay (US auctions: search 'Mustad 94840'; UK listings less frequent but available). Vintage fly-fishing dealers (Murray's Fly Shop online archive; local fly-swap events). Regional tackle fairs and fly-fishing symposia (Catskill region: annual Fly Fishing Expo, local rod-and-gun club auctions). Specialist online retailers (Feather-Craft, NC Fly Shop occasionally stock vintage inventory).
eBay Market Reference
| Title | Price | Date | Condition |
|---|---|---|---|
| 2 - Mustad. 94840. #. 1. Hooks | $18.00 (asking) | active | New other (see details) |
| 2 - Mustad. 94840. # 2. Hooks | $18.00 (asking) | active | New other (see details) |
| MUSTAD VIKING 94840 DRY FLY TYING FISH HOOKS 100 PCS SZ 20 TINY BAIT HOOKS | $18.99 (asking) | active | New |
| Mustad R50 94840 Signature Series Dry Fly Hooks 50/pack Bulk Pack Size 18 | $12.99 (asking) | active | New |
| 25 Mustad Signature Fish Hooks R50-94840 Size 18 Dry Fly | $10.02 (asking) | active | New |
| 2 - 94840. #. 1. Hooks | $18.00 (asking) | active | New other (see details) |
| Mustad Signature Series Dry Fly Hook R50-94840 Size 22, 25 Pack | $3.99 (asking) | active | New |
eBay market reference. Researcher-curated. Prices in USD. Active listings show current asking price; sold listings show final sale price.
Storage and Preservation
Store the card in a cool, dry environment away from high humidity and direct sunlight. The bronzed finish is stable but may develop surface patina with age — this is desirable for collectors and indicates original manufacture. Avoid contact with water or damp conditions; patina can accelerate if moisture is present.
Keep the card in original packaging rather than removing hooks to loose storage. The cardstock itself provides historical context and documentation value; a card with legible label is far more valuable than loose hooks of the same age. If tissue wrapping is present, do not remove it; it adds premium value and protects the hooks.
Store away from other metals to prevent galvanic corrosion, particularly steel and iron items which can cause blue-green staining on bronze. Cardboard storage boxes with acid-free tissue are ideal for long-term preservation. Avoid PVC plastic storage bags, which can trap moisture; use acid-free paper envelopes instead.
If hooks show surface corrosion (rust bloom or white verdigris patina from bronze), consult a conservator before cleaning. Over-cleaning or polishing removes patina, reduces authenticity, and can lower collector value. Light dust may be brushed away gently with a soft natural-bristle brush, but do not scrub or apply any liquid or abrasive.
Handwritten Marks and Annotations
No handwritten marks, retailer stamps, or tyer signatures are visible on this specimen card. The label is entirely lithographed in olive-green and red printer’s ink using formal block-capital typography. This is consistent with mid-century Norwegian export production standards, where cards were sold ‘plain’ without retailer annotations or date markings.
If handwritten marks (price, size notation, retailer name, date) appear on other examples of this same card design, they indicate secondary use history — often a retail shop mark or fly-tying guild attribution. Such marks add historical interest but may reduce collector preference if they obscure the original label text. Document any handwritten annotations photographically for provenance tracking.

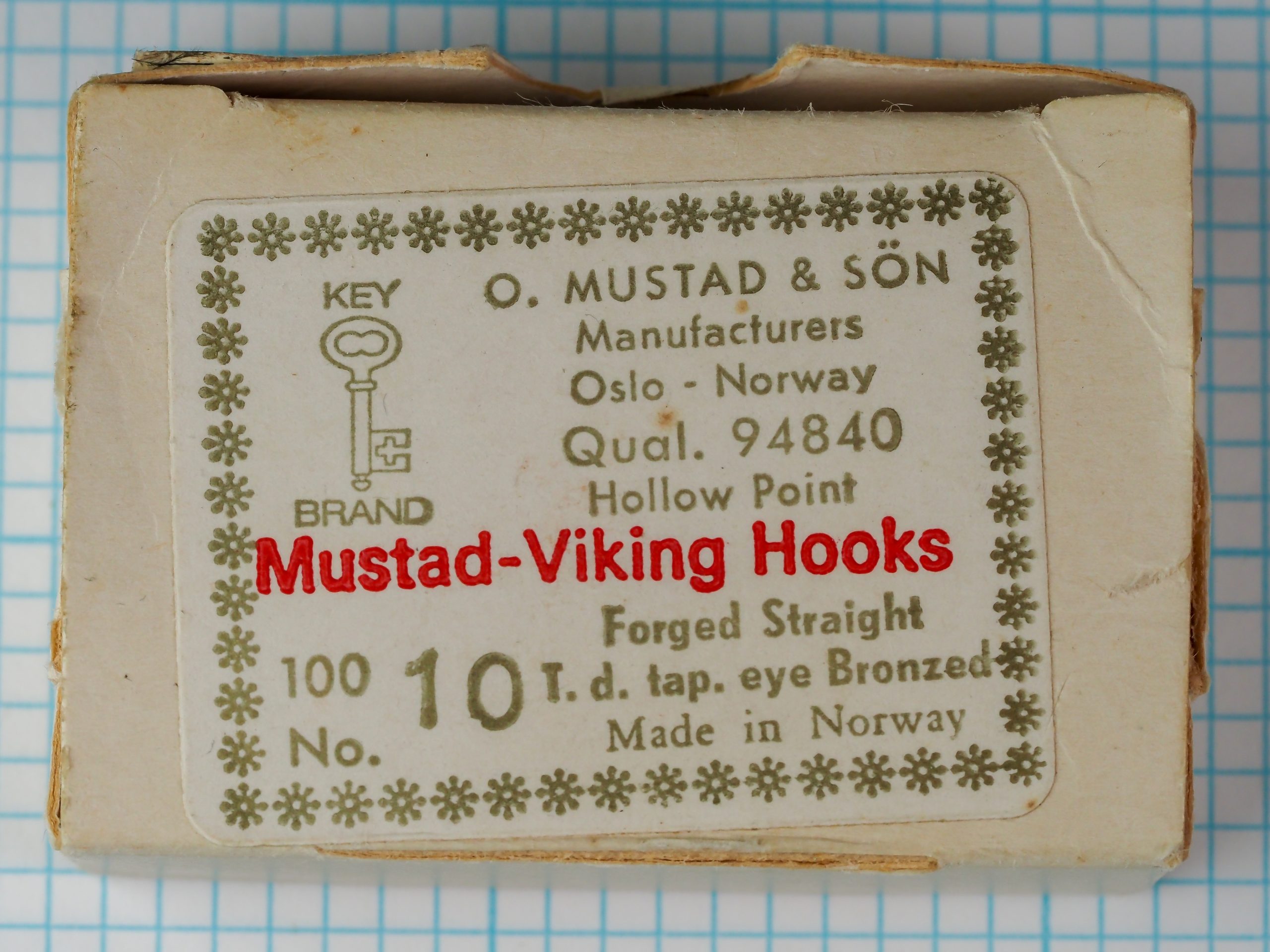

Label Typography and Mustad Naming Conventions
Source: Mustad cardstock label, c. 1950–1965; Mustad Autoline company history; Global FlyFisher Mustad Signature Series documentation
‘Qual. 94840’: ‘Qual.’ is an abbreviation of ‘Quality Number,’ a Mustad nomenclature convention referring to the pattern or reference number — not a quality grade or tier. The term is often misinterpreted as indicating a product’s quality tier (e.g., ‘mid-tier’ vs ‘economy’ vs ‘premium’). In fact, Mustad’s numeric model codes function essentially as arbitrary pattern identifiers with loose grouping conventions, not as explicit quality hierarchies. The 94840 is a 5-digit pattern number; it does not fall into a 3000–3999 ‘mid-tier’ category — such classification is not supported by Mustad documentation or dealer practice.
‘Mustad-Viking’: ‘Viking’ was a premium export sub-brand used by Mustad to emphasize Norwegian heritage and craft in overseas markets, particularly post-WWII. The Viking designation appears on several Mustad pattern families (79515, 3191, and others). It was not a quality grade but rather a marketing nomenclature for the export product line, suggesting provenance and traditional manufacturing standards. The prevalence of ‘Viking’ branding on this card is a useful era marker (c. 1950–1965 export production).
‘Forged Straight’: ‘Forged’ describes the manufacturing process — lateral compression of the bend between dies, which flattens the wire cross-section and improves durability. ‘Straight’ indicates the point is not offset (kirbed). These are two independent manufacturing specifications stated together, not a compound term. The label conflates them somewhat; modern Mustad practice separates these designations for clarity.
‘SÖN’ vs ‘SØN’: The label shows ‘SÖN’ (umlauted O). The correct Norwegian character is ø (slashed O) — ‘Søn.’ The umlauted ‘Sön’ on export labels was a typographic substitute used when ø was unavailable in foreign type foundries, particularly in English and German trade markets where Norwegian special characters were not standard in the typesetting system. This is a labeling and typesetting artifact, not an alternative Norwegian spelling. Both ‘SØN’ and ‘SÖN’ appear on Mustad packaging of this era depending on where cardstock was printed.
‘Made in Norway’: This legend appears on export cards to emphasize Norwegian manufacture and distinguish the product in international markets. Mustad also produced hooks in subsidiary facilities (e.g., Auburn, NY, acquired 1952; later distribution centers), so ‘Made in Norway’ indicates Gjøvik manufacture specifically. Cards printed in subsidiary markets or for domestic use may omit this notation.
The Mustad Signature Series R-Code Naming Convention
In the 1970s, Mustad introduced a rationalized product coding system known as the Signature Series, using five-character alphanumeric codes to encode hook geometry explicitly. The R50-94840 designation replaces the vintage ‘Qual. 94840’ label and works as follows:
Position 1 (Bend Family): R = round bend, S = Sproat, L = Limerick, K = Kirby/Beak, O = O’Shaughnessy, etc. The 94840’s R designation confirms round-bend geometry, contradicting older secondary sources that incorrectly classify it as Sproat.
Position 2 (Wire Gauge): 5 = standard wire, 3 = fine wire, 7 = heavy wire, 9 = extra-heavy wire. The 94840’s ‘5’ confirms standard wire gauge.
Position 3 (Shank Length): 0 = standard shank, 1 = long 1×, 2 = long 2×, etc. The 94840’s ‘0’ confirms standard shank proportion.
Positions 4–5 (Pattern Reference): 94840 — the original pattern number, retained for backward compatibility and catalog reference.
This naming convention allows collectors and tyers to decode other Mustad Signature Series hooks systematically. Knowing that ‘R50-‘ prefix encodes round/standard/standard, you can predict the geometry of R50-94842 (round, standard wire, standard shank, but with up-eye variant) and compare it to R50-94831 (round, fine wire, standard shank). Similarly, S50-xxxx patterns will have Sproat bends; L50-xxxx will have Limerick geometry. This consistency, unfortunately, is absent from vintage packaging, making the Signature Series period (1970s onward) significantly easier to cross-reference.
Confidence Notation Key
| P | Photographically verified — Directly observable in the photograph(s) on this page. |
| V | Verified by documentation — Confirmed by manufacturer catalog, spec sheet, or published reference. |
| I | Inferred — A logical deduction from observable or documented evidence, not directly stated. |
| E | Estimated — An approximation based on visual comparison, proportional analysis, or limited data. |
| S | Speculative — A reasoned hypothesis that cannot be confirmed from available evidence. |
Claims with no notation are confirmed by multiple independent sources. All photographs on garrenwood.com are taken on a measurement grid where each square equals 1/10 inch (0.1″ / 2.54 mm).
