Mustad Hooks – 3413
Mustad 3413
Qual. 3413 O'Shaughnessyc. 1925-1960
Save this hook to your account to build a list you can come back to.
Record summary
The Mustad Qual. 3413 O’Shaughnessy is a heavy-duty saltwater hook manufactured by O. Mustad & Søn of Oslo, Norway, between approximately 1925 and 1960. This mid-tier quality model exemplifies Mustad’s industrial reverse-engineering strategy: the O’Shaughnessy bend, originally a regional Irish pattern, was mechanically standardized and forged from extra-heavy wire to create a globally dominant commercial marine fishing hook. The specimen shown was documented on an original red-card sales label featuring the characteristic eight-line Mustad typographic format and the iconic Key Brand trademark.
The defining physical features are the forged extra-heavy wire, the parabolic O’Shaughnessy bend with its deep, angular bottom section (which locks the fish’s jaw into the strongest point of the hook), and the Superior point geometry — Mustad’s premium all-purpose point specification combining the delicate penetration characteristics of a hollow point with the structural durability required for hard-fighting saltwater species. The tapered eye (where wire diameter diminishes as it forms the terminal loop) allows bait to be rigged with minimal tissue damage, critical for maintaining natural presentation during offshore trolling.
The Oslo designation on the packaging establishes post-1925 manufacture, marking this hook as part of Mustad’s mid-twentieth-century commercial dominance. The absence of a barcode confirms pre-1974 production. The arbitrary numeric quality code (3413) and the eight-line label format are definitive hallmarks of the classic vintage Mustad era, which ended around 2001-2009 when the company transitioned to modern alpha-numeric Signature Series nomenclature.
For collectors, the 3413 represents an important historical artifact documenting Mustad’s standardization of regional bend patterns and the company’s ruthless industrial strategy. While O’Shaughnessy hooks were produced in substantial quantities for commercial fishing, the original red sales card with intact, crisp letterpress label is a moderately scarce survival. The hook sits at the intersection of industrial history, metallurgical engineering, and commercial fishing tradition — a period piece from when Norwegian mechanization fundamentally reshaped the global tackle industry.
Photographic record
2 cataloged imagesSelect any record to load it above.
2 images shown
Technical profile
Turned-Down Tapered Eye | O'Shaughnessy Bend | Standard Shank | Extra-Heavy Forged Wire | Superior Point | Rustproof Finish
- Eye
- Tapered Eye, Turned Down Tapered eye construction confirmed on packaging label ('T.d. tapered eye'). The wire diameter is intentionally reduced as it forms the terminal loop, decreasing overall mass at the front of the hook. This engineering feature is purpose-designed for smooth insertion through bait flesh without excessive tissue damage during trolling rigging. V
- Wire
- Extra-Heavy (2X+), Forged
- Shank
- Standard — Plain
- Bend
- O'Shaughnessy, Wide gap O'Shaughnessy bend features the characteristic deep, angular bottom section with a modified parabolic curve. This geometry distributes tensile stress evenly across the bend radius, creating exceptional holding power under the violent, sustained runs of large offshore species. The bend represents a mechanically refined version of the original Irish regional pattern. P
- Point
- Superior (near-straight inner taper) Standard close-cut barb characteristic of mid-tier Mustad commercial hooks. Barb placement and angle consistent with O'Shaughnessy bend geometry — positioned to lock firmly in fish mouth tissue once point penetration is achieved. No unusual barb modifications visible on packaging documentation. E
- Finish
-
Confirmed (stated on packaging) Labeled as 'Rustproof' on the original packaging. This designation likely indicates a chemical or lacquer-based protective coating (possibly japanned or bronzed) applied to protect high-carbon steel from saltwater corrosion. The specific finish chemistry cannot be confirmed from the label alone, but the rustproof designation was standard for mid-century Mustad saltwater hooks. I

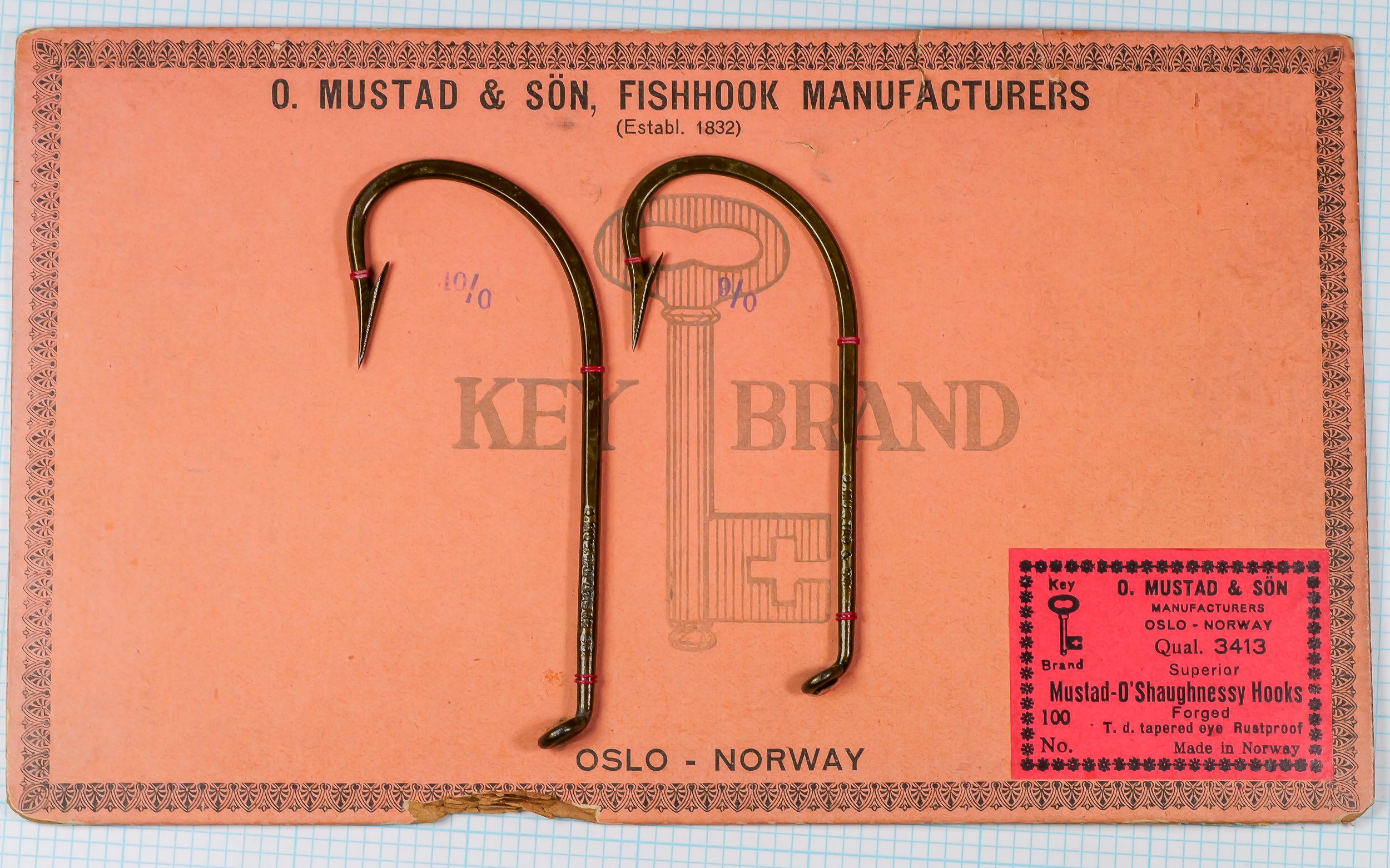

Sales card in good condition with crisp letterpress impression and bright red/pink card stock. Ink is clean with minimal fading. Two hook silhouettes rendered clearly. No significant toning, water damage, or creasing visible. Original label text fully legible. Represents a well-preserved example of Mustad's mid-century sales marketing.
The O’Shaughnessy bend achieves its exceptional holding power through a modified parabolic curve that mathematically distributes the tensile stress of a fighting fish evenly across the entire bend radius, rather than concentrating stress at a single point as occurs with sharper, more angular bends. This geometry makes it highly resistant to straightening out or fracturing under the sudden, violent loads characteristic of trolling large baits or fighting extremely powerful marine species.
The forging process — mechanically flattening the wire along its lateral sides in a drop-press — fundamentally alters the metallurgical structure of the steel, work-hardening the material and significantly increasing tensile strength without adding weight or thickness. This cold-forging technique was essential for achieving the extreme durability required in commercial marine applications where hooks endure abrasive saltwater environments, high-pressure fish mouths, and the constant mechanical stress of offshore trolling at speed.
The Superior point geometry on the 3413 represents Mustad’s premium all-purpose point specification — a near-straight inner taper that concentrates penetration force at the microscopic tip while maintaining structural integrity through the barb. This point design is neither as delicate as a hollow point (which prioritizes rapid penetration in soft tissue) nor as blunt as a spear point (which prioritizes brute-force durability). Instead, it offers an engineered compromise, making it less likely to roll over, dull, or fracture when encountering hard bone, cartilage, or rocky substrates — critical performance requirements in deep-water and offshore applications.
The tapered eye construction — where the wire diameter is intentionally reduced as it forms the terminal loop — decreases the mass and bulk at the front of the hook. In bait rigging, this allows the hook to be pulled more smoothly through the flesh of large baits (ballyhoo, mullet, mackerel) with minimal tissue damage, creating a hydrodynamic presentation that does not spin or destabilize at trolling speeds.
Size & scale lab
No measurement data recorded for this size.
Own this hook? Help us measure it.
We don't have measured sizes for this hook yet. Own one? Submit calipered measurements and we'll review and add them. Thank you!
Historical context
mustad
O. Mustad & Søn was founded in 1832 in Gjøvik, Norway, initially as Brusveen Spiger- og Ståltradfabrikk, a general metalworking firm producing nails, steel wire, and cast-iron goods. The company was taken over by Ole Hovelsen Mustad and his son Hans Mustad, who rebranded it as O. Mustad & Søn and began experimenting with hook manufacture in the mid-nineteenth century.
The defining moment came in 1877 when Mathias Topp, a visionary engineer within the company, invented the first fully automated hook-making machine. This mechanization allowed raw steel wire to be continuously fed into a machine that autonomously cut, bent, barbed, and pointed hooks at unprecedented speed and consistency. Rather than seek patent protection (which would have required public disclosure of mechanical schematics), the Mustad family relied on corporate secrecy, strict non-disclosure agreements, and restricted factory access to maintain their monopolistic advantage.
By the 1950s, Mustad had captured approximately fifty percent of global hook production, establishing manufacturing facilities and sales offices across multiple continents. The company’s aggressive strategy of reverse-engineering regional hook patterns (Cincinnati, Limerick, O’Shaughnessy, Virginia, Sproat) and mass-producing them under their names created a form of de facto brand assimilation — regional patterns became globally known as ‘Mustad’ hooks. This industrial strategy proved devastatingly effective against competitors in Redditch, England, and throughout Japan and the United States.
Series History
The Qual. 3413 O’Shaughnessy belongs to Mustad’s broad Quality tier system, which segmented their vast catalog into specific numeric ranges. The 3413 falls within the 3000-3999 ‘Quality’ block — mid-tier products manufactured to exacting dimensional and tempering standards, occupying the middle ground between economy models (1000-2999) and premium specialty hooks (4000+).
The O’Shaughnessy bend itself represents one of Mustad’s most significant reverse-engineered regional patterns. Originating in nineteenth-century Irish and British hook-making traditions, the O’Shaughnessy became the definitive saltwater pattern under Mustad’s standardization. The company offered O’Shaughnessy variants across multiple wire gauges and size ranges, from light salmon work through ultra-heavy offshore trolling rigs. The 3413 specifically represents the standard heavy-wire, forged version intended for commercial marine applications.
The designation ‘Superior’ on the packaging indicates the premium point geometry specification — a marker of Mustad’s quality grading system applied to mid-tier hooks. The combination of forged construction, extra-heavy wire, superior point, and tapered eye reflects the typical feature set for a robust commercial saltwater hook designed to withstand prolonged use in harsh marine environments.
This model was produced continuously from approximately 1925 through the 1960s-1970s, with variations in packaging design, label format, and finish specifications reflecting mid-century manufacturing changes. The transition to modern barcode-driven inventory and the eventual discontinuation of arbitrary quality codes around 2001-2009 ended the classic labeling era and relegated hooks like the 3413 to historical artifact status.
Era and Packaging Dating
Oslo designation on Line 3 establishes post-1925 manufacture (Christiania renamed to Oslo January 1, 1925). Letterpress printing technology and red card stock style are consistent with 1925-1960 Mustad production. Lack of barcode confirms pre-1974 manufacture. Eight-line label format with arbitrary quality code (3413) predates the 2001-2009 transition to alpha-numeric Signature Series. The 'T.d. tapered eye' abbreviation and 'Rustproof' finish notation are characteristic of mid-century Mustad labeling. Card condition and ink tone suggest vintage production from this era, likely mid-20th century.
The O'Shaughnessy and Commercial Marine Dominance
The O'Shaughnessy hook pattern originated as a distinctly Irish and British regional design, but Mustad's mechanization and standardization of the bend made it the de facto global standard for commercial trolling and bottom fishing by the mid-twentieth century. Mustad's industrial reverse-engineering strategy — legally copying regional patterns without patent protection and then mass-producing them with Norwegian mechanical precision — allowed the company to simultaneously serve localized fishing communities (crediting their regional bend names on packaging) while extracting massive economies of scale. By the 1950s, the O'Shaughnessy became so completely identified with Mustad that most anglers and commercial fishermen worldwide assumed it was a Mustad original design rather than a reverse-engineered Irish pattern. This strategy exemplified Mustad's ruthless competitive dominance: celebrate the regional heritage while owning the manufacturing.
Design lineage and influence
The O’Shaughnessy bend originates from nineteenth-century Irish and British hook-making traditions, where regional craftsmen developed the distinctive parabolic geometry specifically for heavy Atlantic salmon flies and big game work. The pattern’s angular, deep bottom curve creates an exceptionally strong mechanical lock point within the bend, distributing stress evenly across the wire during the powerful, sustained runs of large pelagic and anadromous species.
Mustad’s reverse-engineering and standardization of the O’Shaughnessy in the late nineteenth century transformed a regional pattern into an industrial commodity. By forging the bend from progressively heavier wire gauges and applying mechanized barbing and pointing techniques, Mustad created variants spanning light-tackle salmon work through ultra-heavy saltwater and deep-water trolling applications. The O’Shaughnessy bend has remained virtually unchanged in fundamental geometry for over 150 years, a testament to its mechanical soundness.
Modern equivalents include Mustad’s stainless steel O’Shaughnessy variants (e.g., 34007SS) and contemporary saltwater hooks from other manufacturers that employ similar deep-bend, heavy-wire geometries. However, the specific combination of forged extra-heavy wire, superior point geometry, and tapered eye found on the vintage 3413 represents a distinct manufacturing era that has largely been superseded by modern materials and chemical sharpening.
Best matchRelated by Attribute
| Silhouette | Hook Model | Match | Analysis | Compare |
|---|---|---|---|---|
|
7876 No. true — O'Shaughnessy | 89% | Compare | |
|
7731 A No. Typically 6/0–16/0 (specific size not visible on main label) — Sea Demon | 88% | Compare | |
|
13107 No. 6 — O'Shaughnessy | 85% | Compare | |
|
3406 B No. 1, No. 4 — Mustad 3406 B | 85% | Compare | |
|
1608 A No. 5/0 — Mustad Bowed | 83% | Compare |
Cross-reference & comparisons
Saltwater
Bait Fishing
Primary Application
The Mustad 3413 O’Shaughnessy is a heavy-duty saltwater hook engineered for offshore and commercial marine fishing applications. The O’Shaughnessy bend — a modified parabolic geometry forged from extra-heavy wire — is specifically designed for trolling large natural baits, rigging cedar plugs, and constructing robust bottom-fishing rigs for species such as grouper, cod, and other hard-fighting saltwater species. The tapered eye design facilitates smooth insertion through bait flesh with minimal tissue damage, while the superior point geometry ensures reliable penetration through hard, bony fish mouths characteristic of powerful pelagic and demersal species.
Secondary Applications
Heavy freshwater applications, pike fishing, large catfish
Modern Equivalents
| Hook | Match Quality | Notes |
|---|---|---|
| Mustad 34007 (Stainless Steel O'Shaughnessy) | Excellent | Direct modern equivalent maintaining the same O'Shaughnessy bend geometry and general feature set, forged from marine-grade stainless steel for superior corrosion resistance. |
| Mustad 7699 (Sea Master Big Game Hook) | Very Good | Heavy-duty saltwater hook with similar bend family and intended application, though marketed under a different model designation and updated with modern chemical sharpening. |
| Tiemco 600SP | Good | Contemporary saltwater hook employing a similar heavy-forged geometry and intended for trolling and offshore applications, though with modern wire alloys and point geometry. |
Collector notes
The 3413 O'Shaughnessy is a moderately desirable saltwater hook with solid historical significance, but surviving examples are not exceedingly rare. Collector interest is modest compared to ultra-specialized dry fly models or pre-1925 Christiania hooks.
Positive Factors: The O’Shaughnessy bend is an iconic, historically important saltwater pattern reverse-engineered and standardized by Mustad for global commercial fishing markets. The Superior point designation on vintage packaging is noteworthy — it represents Mustad’s premium all-purpose point geometry engineered for optimal balance between penetration and durability. Forged construction in extra-heavy wire indicates manufacturing precision and attention to structural integrity. The sales card format with intact eight-line label is a valuable archival document of Mustad’s standardized typographic system. Post-1925 Oslo designation and mid-century production window align with the company’s peak global market dominance.
Limiting Factors: O’Shaughnessy hooks were produced in substantial industrial quantities for commercial marine fishing, making loose hooks relatively common. The 3413 is not a rare variant or limited production run. Sales cards in good condition are moderately scarce but not exceptionally so. The hook has no direct connection to a named designer or signature fly pattern, limiting appeal to specialist fly tying collectors. The saltwater niche has fewer active collectors than freshwater fly fishing, particularly among vintage gear enthusiasts.
Packaging
Red/pink card sales card approximately 4.5 x 3 inches, with black letterpress printing. Features the iconic Mustad Key Brand trademark (skeleton key graphic) in upper left corner. Standard eight-line Mustad label format with decorative black star/asterisk border pattern. Text includes: 'O. MUSTAD & SÖN', 'MANUFACTURERS', 'OSLO - NORWAY', 'Qual. 3413', 'Superior', 'Mustad-O'Shaughnessy Hooks', 'Forged', 'T.d. tapered eye Rustproof', '100 No.', and 'Made in Norway'. Two hook silhouettes shown in size 1/0 and 3/0. Crisp letterpress impression with clean color separation.
Market Value Notes
Sales cards with original red finish and intact eight-line labels typically command $8-18 USD, depending on condition and eye appeal. Loose hooks bring $2-4 per hook or $15-25 per box of 100 depending on finish and condition. Premium pricing (toward $18) for cards with exceptionally crisp letterpress impression, minimal toning, and complete label visibility. Values are stable but not appreciating significantly due to moderate collector demand.
Where to Find
eBay (hobby seller vintage tackle), specialist fishing tackle dealers, maritime antique dealers, tackle fairs and regional fishing shows
Preservation
Storage and Preservation
Store the original sales card in a cool, dry environment protected from direct sunlight and humidity fluctuations. The card stock and letterpress ink are vulnerable to moisture and UV exposure, both of which can cause fading, warping, or mold growth. Ideal storage conditions are 65-70°F and 40-50% relative humidity.
If the card is displayed, use UV-protective acrylic or glass glazing to prevent long-term ink fading. Avoid lamination, which can trap moisture and cause chemical degradation. Do not attempt to clean the card with water or harsh chemicals; gently dry-brush away dust with a soft, natural-bristle brush.
If you possess loose hooks from this production run, store them in a dry location with minimal air circulation. The rustproof finish, while protective, will deteriorate if exposed to salt spray or sustained humidity. Original packaging significantly enhances collectible value — whenever possible, keep hooks on the original sales card rather than removing them. Separation from provenance reduces documented authenticity and collector appeal.
Periodically inspect both card and hooks for signs of moisture damage, rust bloom, or insect activity. If corrosion appears on the steel, do not attempt to remove it with abrasive materials, as this will destroy patina and historical finish value. Small surface rust can be stabilized with a microcrystalline wax (e.g., Renaissance Wax) applied with a soft cloth.
Primary Source

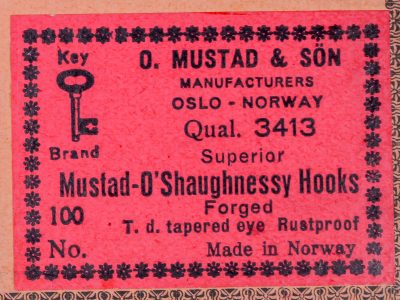

The Eight-Line Mustad Label System: Decoding Qual. 3413
Source: Mustad Label Typology and Decryption — Mustad Fishing Hook Manufacturers (c. 1925-1960); garrenwood.com reference documentation
Line 1: O. MUSTAD & SÖN — The full, unabbreviated corporate title establishing Mustad as the primary manufacturer. The Norwegian ampersand with diacritical mark (Ø) and Scandinavian letter formation (‘Ö’ for Søn) are signatures of Norwegian printing convention and origin authentication.
Line 2: MANUFACTURERS — This designation served a critical historical function: in the late nineteenth and early twentieth centuries, international import agents and jobbers frequently purchased bulk hooks in unmarked batches, then repackaged them under secondary, localized brand names. By boldly stamping ‘MANUFACTURERS’ on the label, Mustad ensured direct brand attribution and prevented channel dilution.
Line 3: OSLO – NORWAY — The city designation is critical for dating. The Norwegian capital was officially renamed from Christiania to Oslo on January 1, 1925. Any Mustad label bearing ‘OSLO’ must post-date that transition, establishing a firm lower chronological bound of 1925 or later. Conversely, labels reading ‘CHRISTIANIA – NORWAY’ can be conclusively dated to 1924 or earlier, marking them as genuine antiques from the firm’s initial major export push.
Line 4: Qual. 3413 — The arbitrary numeric quality code segments Mustad’s catalog into production tiers. The 3000-3999 range denotes ‘Quality’ tier products — mid-tier hooks manufactured to exacting dimensional and tempering standards. This numbering system remained virtually unchanged from the 1870s until approximately 2001-2009, when Mustad discontinued these arbitrary codes in favor of logical, alpha-numeric Signature Series nomenclature. The presence of a traditional quality code is a definitive hallmark of vintage Mustad authenticity.
Line 5: Superior — Per Mustad’s typographical rules, Line 5 is reserved exclusively for defining hook point geometry or quality grade. ‘Superior’ indicates Mustad’s premium all-purpose point specification: a near-straight inner taper that concentrates penetration force at the tip while maintaining structural durability through the barb. The Superior point balances the rapid penetration of a hollow point against the blunt-force durability of a spear point, making it less likely to roll over, dull, or fracture on hard bone or cartilage.
Line 6: Mustad-O’Shaughnessy Hooks — The pattern designation formalized the cloned regional bend. The O’Shaughnessy originated as an Irish regional pattern but was reverse-engineered by Mustad and standardized for mass production. By printing the regional name alongside ‘Mustad,’ the company simultaneously honored local fishing traditions while appropriating global manufacturing dominance. This ‘industrial cloning’ strategy allowed Mustad to corner localized markets on a global scale.
Lines 7 & 8: Forged | T.d. tapered eye Rustproof — These lines document supplementary anatomical modifications and metallurgical finishes. ‘Forged’ indicates the wire was mechanically flattened in a drop-press, work-hardening the steel and increasing tensile strength without adding weight. ‘T.d. tapered eye’ (abbreviated from ‘Turned-Down tapered eye’) means the wire diameter is intentionally reduced as it forms the terminal loop, decreasing mass at the front of the hook for smooth bait rigging. ‘Rustproof’ indicates a protective chemical or lacquer coating applied to combat saltwater corrosion.
Additional
The O'Shaughnessy and Mustad's Industrial Reverse-Engineering Strategy
The O’Shaughnessy hook represents one of the most successful and strategically important examples of Mustad’s ‘industrial cloning’ strategy — a ruthless but legal business practice that fundamentally reshaped the global fishing tackle industry. The bend pattern originated as a distinctly regional Irish and British design, perfected by craftsmen in Redditch and Dublin who understood that powerful anadromous fish (Atlantic salmon, Steelhead) and heavy saltwater species required an exceptionally strong mechanical lock point within the bend.
Rather than innovate entirely novel designs, Mustad systematically reverse-engineered the most successful regional patterns from around the globe — Cincinnati (American Midwest), Limerick (Ireland), Virginia (Eastern USA), Sproat (Scottish tradition), and O’Shaughnessy (Anglo-Irish). Once a pattern was identified as regionally dominant, Mustad would mechanically reproduce it at scale, often forging it from progressively heavier wire gauges and applying mechanized barbing and pointing techniques that regional craftsmen could never match in productivity or consistency.
By mass-producing these ‘cloned’ patterns under their original regional names, Mustad accomplished something psychologically ingenious: they simultaneously honored the cultural and historical heritage of each region while erasing the commercial advantage of local hook-makers. An Irish angler seeking the ‘authentic’ O’Shaughnessy would now purchase the Mustad version — not because it was superior in geometry (the bend was identical), but because it was cheaper, more uniform, and available in a vastly wider range of sizes and wire gauges than any Irish craftsman could offer.
By the 1950s, this strategy had concentrated approximately fifty percent of global hook production within Mustad’s factories. Regional patterns had become so identified with Mustad that most anglers worldwide assumed they were Mustad originals, not borrowed regional traditions. The company’s refusal to patent their automated hook-making machine in the 1870s — instead relying on corporate secrecy and restricted factory access — proved far more effective than patent protection would have been. Patents expire; industrial dominance persists.
Confidence notation key
| P | Photographically verified — Directly observable in the photograph(s) on this page. |
| V | Verified by documentation — Confirmed by manufacturer catalog, spec sheet, or published reference. |
| I | Inferred — A logical deduction from observable or documented evidence, not directly stated. |
| E | Estimated — An approximation based on visual comparison, proportional analysis, or limited data. |
| S | Speculative — A reasoned hypothesis that cannot be confirmed from available evidence. |
Claims with no notation are confirmed by multiple independent sources. All photographs on garrenwood.com are taken on a measurement grid where each square equals 1/10 inch (0.1″ / 2.54 mm).
