Fly Tyers Dungeon BH200 — Big Game

Summary

The BH200 is a Fly Tyers Dungeon hook labeled Big Game BH200 on its packet P. The maker’s page places it in a big game line made for large predator fish V.

Size 1/0 is documented here with a side-view photograph, a packet label photograph, and caliper measurements P.

Photographic record

2 photographs

Glossy dark fishhook lying flat on blue graph paper, with the eye at the right end of a straight shank, a round bend at the left, and the point returning toward the eye.

IMG-1Fly Tyers Dungeon — New entry — image 1 Fly Tyers Dungeon BH200, size 1/0, side view: straight shank, round bend, straight point with a cut barb, and a closed eye (P).

Details

IMG-1Hooks

Fly Tyers Dungeon — New entry — image 1

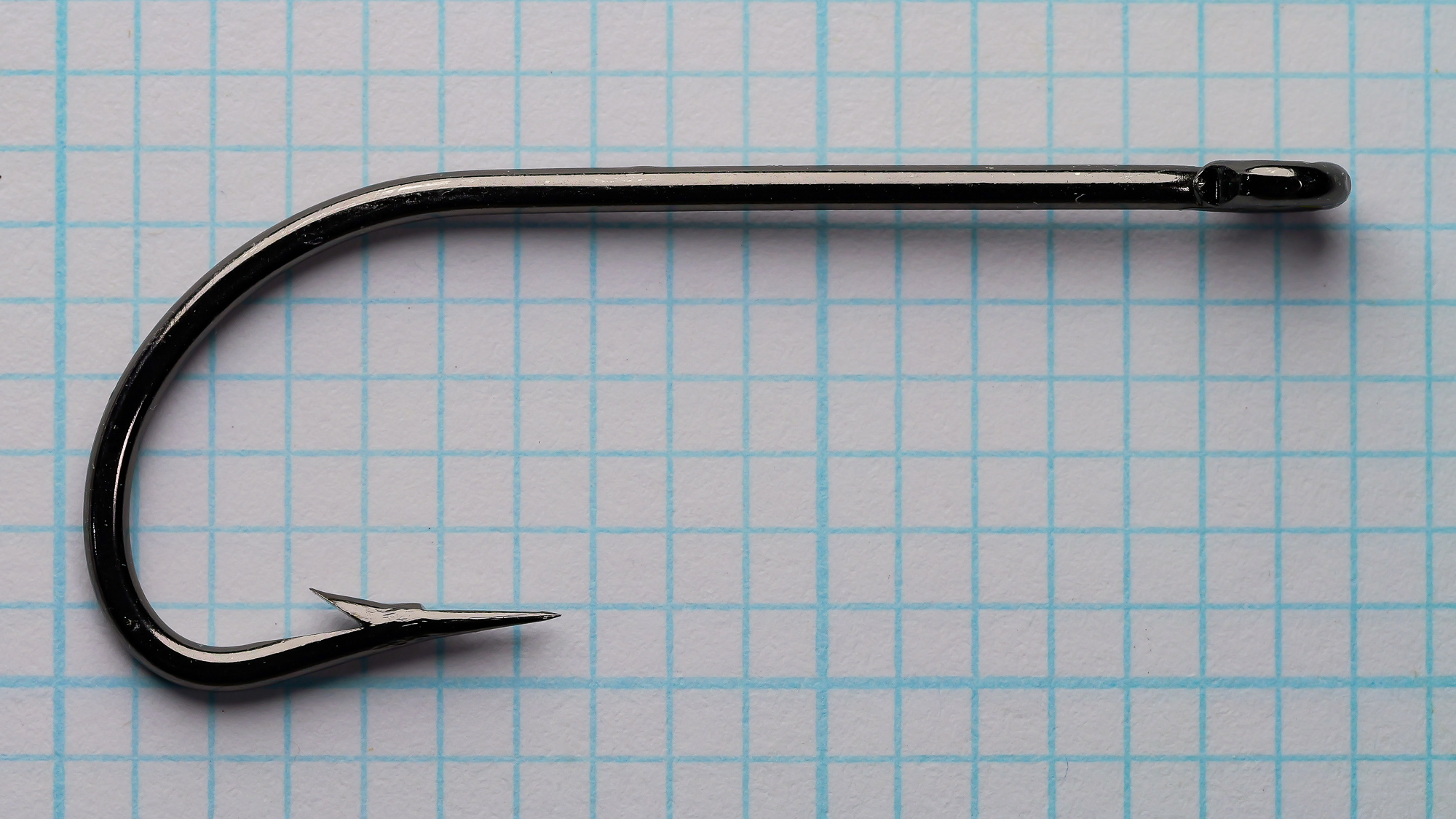

Fly Tyers Dungeon BH200, size 1/0, side view: straight shank, round bend, straight point with a cut barb, and a closed eye (P).

Read from this photograph

OBS-1eyeClosed eye at the right end of the shank: a rounded head slightly thicker than the wire, in line with the shank axis in this view (no turn up or down). A diagonal groove or seam crosses the wire just
OBS-2bendShank runs straight and level, then curves in one continuous round arc through the bottom of the hook with no angular corner. The curve begins roughly a quarter to a third of the hook length in from t
OBS-3pointPoint leaves the bend bottom on a straight line angled slightly upward toward the shank and tapers to a fine tip with bright facets; no curve at the tip. Point and barb lie in the same plane as the be
OBS-4barbOne cut barb on the inside of the point: a small wedge that rises from the point and leans back toward the bend. Its tip looks sharp and intact.
OBS-5shankPlain straight shank with no visible ridges, kinks, bait-holder cuts, or curve. Small bright flecks sit along the upper edge of the shank in several places. This photograph does not resolve whether th
OBS-6finishGlossy dark gunmetal-to-black finish over the whole hook, with bright silver highlights along the upper shank edge and the bend. The eye head looks slightly more matte. The photograph shows colour and
OBS-7conditionFinish looks intact. A few fine surface scratches and small dark specks show on the outer bend and near the lower edge of the shank, and light flecks lie along the upper shank edge. No rust, pitting,

Cited in the specifications

Eye Bend Point Finish

File

Original 2000 × 1125 pxOpen original ↗

#gw-catalog-media-viewer .gw-bench-body{grid-template-columns:minmax(0,1fr);grid-template-rows:var(--gwb-stage-h) auto auto auto;grid-template-areas:"panes" "cap" "rail" "side"}#gw-catalog-media-viewer .gw-bench-side{display:block}#gw-catalog-media-viewer .gw-bench-side-in{position:static}

How to identify it

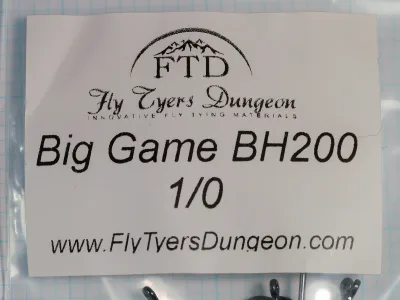

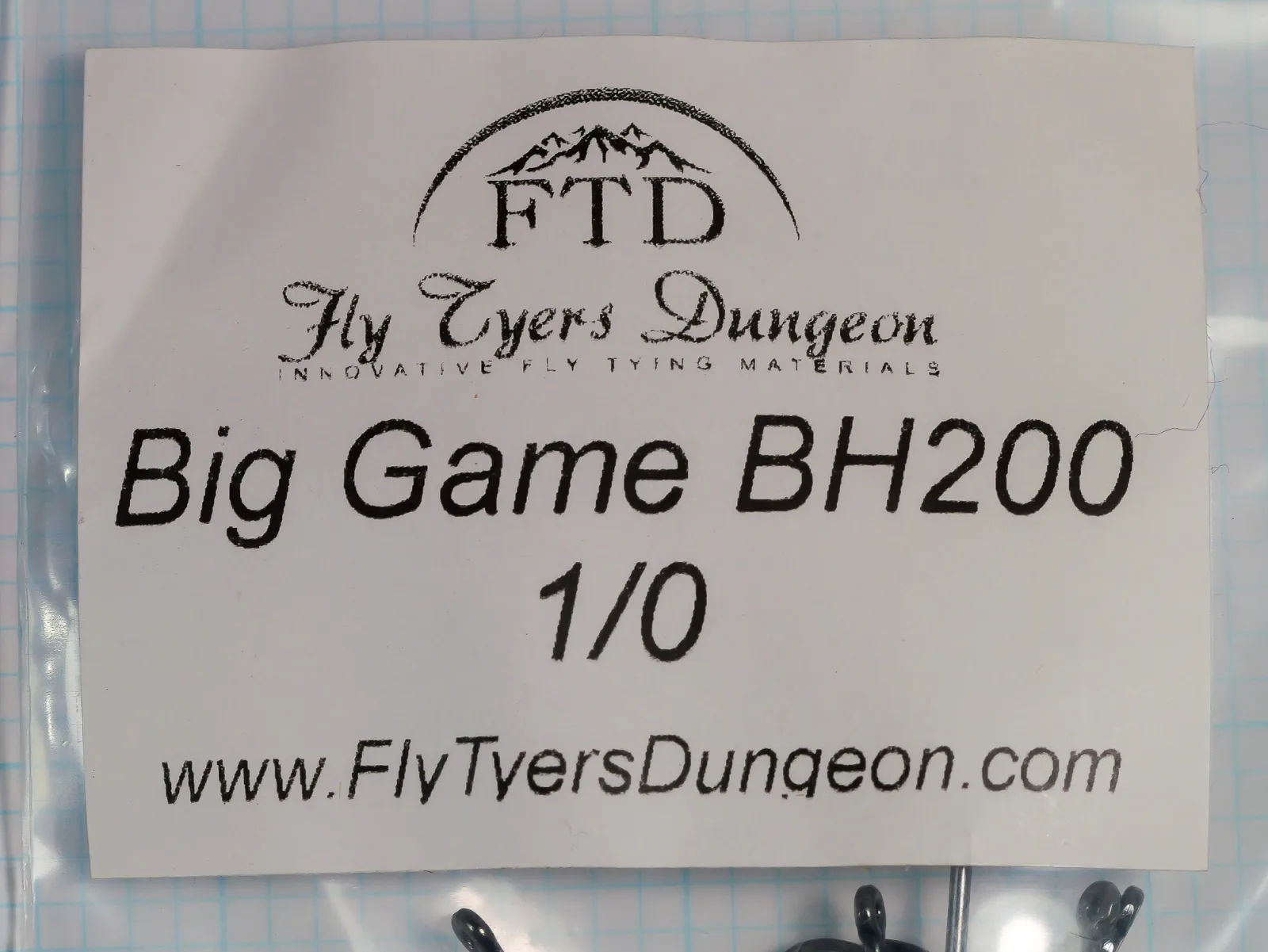

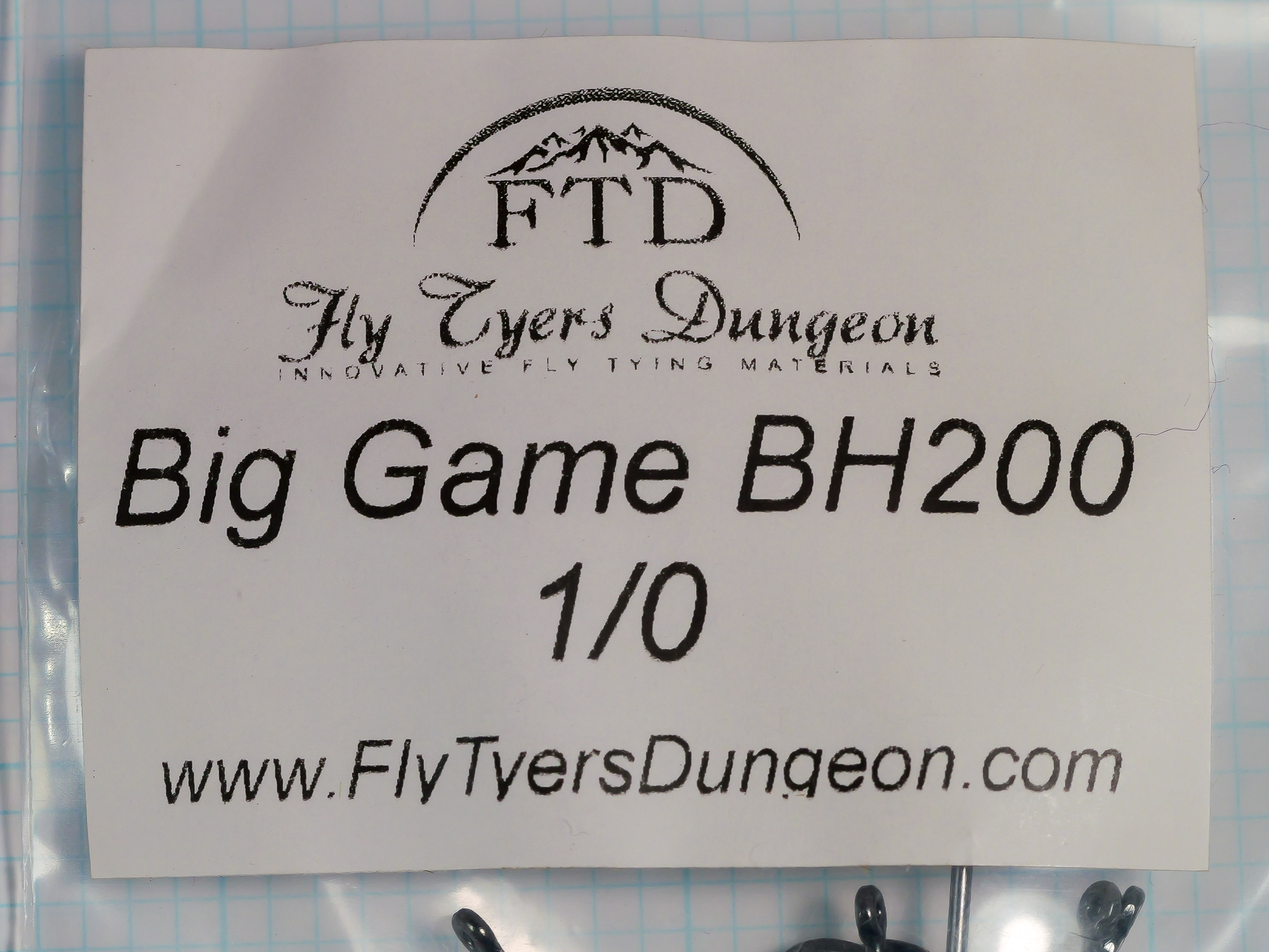

The size 1/0 packet carries a paper label. At the top is a stippled arch over a mountain silhouette with the letters FTD in serif capitals, followed by the script wordmark Fly Tyers Dungeon and a tagline in widely spaced capitals P.

The model name and code are printed together as Big Game BH200 in large italic type, with the size on the line below and the web address at the bottom P.

Technical profile and measurements

Features of the model, as recorded
Feature	Recorded	Evidence
Eye	Ball Eye, Straight / Inline Show noteHide note Closed eye, rounded head slightly thicker than the wire, in line with the shank P. A diagonal groove crosses the wire behind the head; the opening is not seen face-on.	OBS-1
Wire	Standard, Forged	CMP-3CMP-3 compared with 220 catalogued hooks classified Standard
Shank	Standard — Plain	CMP-1CMP-1 compared with 208 catalogued hooks classified Standard
Bend	Limerick, Standard gap Show noteHide note Shank runs straight, then curves in one continuous round arc through the bottom with no angular corner; the point returns toward the eye side P.	OBS-2
Point	Standard / Spear Show noteHide note One cut barb on the inside of the point P. The maker also lists two tiny barbs on top of the shank V; the photograph does not resolve them.	OBS-4OBS-5SRC-3
Finish	stated on packaging Show noteHide note Black nickel on carbon steel per the maker's current listing V. The specimen shows a glossy dark finish with silver highlights P; the photograph shows color and gloss only.	SRC-1OBS-6

The shank is straight, with no visible ridges, kinks, or bait-holder cuts P. The point leaves the bend on a straight line angled slightly toward the shank and tapers to a fine, faceted tip with no curve at the end P.

Fly Tyers Dungeon describes the BH200 as slightly offset, with a straight point and a shank slightly longer than the MS100’s V. The direction of the offset is not stated.

A flat side view cannot show an offset, so the supplied photograph neither confirms nor excludes it.

Measurements

Per size, with how each dimension was taken
Size	Overall length	Shank length	Gap width	Bend depth	Wire diameter	Weight
1/0Specimen S1	41.2 mm PcaliperMEA-1	30.4 mm PcaliperMEA-2	13.3 mm PcaliperMEA-3	—	1.6 mm PcaliperMEA-4	—

Calibrated SVG True-scale preview

Overall length: Eye to the farthest point of the bend.
Shank length: Eye to the start of the bend.
Gap: Point to shank, at right angles to the shank.
Bend depth: Shank to the bottom of the bend.
Wire diameter: Across the wire, measured by caliper where possible.

Specimens, packaging, and label

This record documents one specimen. It describes that specimen only, not every example of the model.

Open full size

S1 · Packet of size 1/0

Size: 1/0 (printed on the label)
Container: Packet
Hook condition: Finish intact. A few fine surface scratches and small dark specks show on the outer bend and near the lower edge of the shank. No rust, pitting, or bent wire seen.
Packaging condition: Very Good — light wear, fully legible
Wear: label right edge, upper to mid-height: Paper edge looks slightly wavy; a fine hair-like line runs from the edge out across the bag at about mid-height. LBL-6
Wear: label face, below the tagline, left of centre: One tiny orange-brown speck. LBL-7
Measured: size 1/0
Photographs: IMG-1 IMG-2

The bag holds more than one hook; at least three eyes show below the label and the count is out of frame P. The loose hook in the side-view photograph is probably from the same packet. The label's right edge is slightly wavy, a fine hair-like line crosses the bag at mid-height, and one tiny orange-brown speck sits on the label face P.

What the label says

LBL-1 trademark · label top, centred arch logo, under the mountain silhouette from IMG-2

FTD

LBL-2 trademark · label upper middle, script wordmark from IMG-2

Fly Tyers Dungeon

LBL-3 printed · label upper middle, line directly under the script wordmark from IMG-2

INNOVATIVE FLY TYING MATERIALS

LBL-4 printed · label centre, large italic type, two lines from IMG-2

Big Game BH200
1/0

LBL-5 printed · label bottom, italic line from IMG-2

www.FlyTyersDungeon.com

Trademark: Fine stippled arc across the top of the label with a jagged multi-peak mountain silhouette beneath it and the serif capitals FTD under the mountains. Below is a script wordmark with swash capitals, then a tagline in widely spaced capitals.

As entered on the specimen record

FTD
Fly Tyers Dungeon
INNOVATIVE FLY TYING MATERIALS
Big Game BH200
1/0
www.FlyTyersDungeon.com

Layout: Top to bottom: arched logo with FTD, script wordmark, tagline in spaced capitals, model name and code, size on its own line, web address.
Typeface: FTD in serif capitals; wordmark in script with swash capitals; tagline in widely spaced capitals; model line and web address in italic type.
Later marks: None seen.

Condition

Finish intact with a few fine surface scratches and small dark specks on the outer bend and lower shank edge. No rust, pitting, or bent wire visible P.

Pattern history and manufacturer context

Series

Fly Tyers Dungeon lists the BH200 in its big game hook line, together with the MS100, ST5500, OS700, CARP, and PK 25 V. One size list covers all of these models, so the sizes made in the BH200 alone are not stated V.

The maker’s page says the hooks in the line are made in China V. The listing is undated, and no dated source for the introduction of the BH200 has been found.

Fly Tyers Dungeon Read the maker’s history →

Use

Saltwater
Other

Primary application

Fly Tyers Dungeon describes its big game hook line as made for large predator fish, including musky, pike, bass, gar, peacock bass, dorado, bowfin, and many saltwater species V. The page makes no application statement for the BH200 alone.

Collecting and buying

1 / 10CollectabilityRarity: Common

Rated 1 because the maker lists the BH200 in packs of 25 V. Nothing in the evidence points to scarcity or collector demand, so nothing raises the rating.

Basis: Listed by the maker in packs of 25 V; no scarcity or collector demand is documented.

No sold sales are recorded for this model, so no value range is shown.

Where to find

Fly Tyers Dungeon lists the BH200 on its own website in packs of 25 V. The listing is undated, so current availability is not established.

Modern equivalents and related hooks

Hook Model	Match	Analysis	Compare
3121-J No. 9/0 — Limerick	74%	Matches: Bend, Wire, Gap, Eye, Eye Orient. +4 moreDiffers: Shank: Standard vs 1X Long; Finish: Other vs Black Japanned; Forging: Forged vs Round +4 more	Compare
3101 No. 2, 9/0 — 3101 Limerick Hook	73%	Matches: Bend, Wire, Gap, Eye, Eye Orient. +3 moreDiffers: Shank: Standard vs 1X Long; Point: Standard / Spear vs Superior; Finish: Other vs Bronzed +1 more	Compare
3100 A No. 2, 10 — Mustad-Limerick	72%	Matches: Bend, Shank, Gap, Eye, Eye Orient. +3 moreDiffers: Wire: Standard vs Fine (1X Fine); Point: Standard / Spear vs Superior; Finish: Other vs Black Japanned +4 more	Compare
3306 No. 18 — Mustad 3306 Cincinnati Bass Hooks	70%	Matches: Bend, Shank, Gap, Eye, Eye Orient. +4 moreDiffers: Wire: Standard vs Fine (1X Fine); Finish: Other vs Bright / Uncoated Steel; Forging: Forged vs Round +4 more	Compare
No. 7 No. 7 — Limerick Hook	70%	Matches: Bend, Shank, Gap, Eye, Eye Orient. +5 moreDiffers: Wire: Standard vs Heavy (1X Heavy); Finish: Other vs Black Japanned; Application: Saltwater, Other vs Salmon, Sea Trout, Bait +2 more	Compare

Hook Model	Match	Compare
31604 — Kirby Hooks	71%	Compare
4064 No. 2/0 — Spear O'Shaughnessy	69%	Compare
23407 D No. 1/0 — O'Shaughnessy Hooks Ringed Duratin	69%	Compare
3116 B No. 7 — Mustad-Limerick	68%	Compare
3407DT No. 5/0 — Mustad 3407DT	67%	Compare

Sources, open questions, and record notes

Sources & Documentation

This specimen and its packaging — photographed, 2 images

Supports: size documentedconstructiongap widthmeasurements availablemeasurement noteseyebendbarbfinishcondition notespackagingmeta titlemeta descriptionprimary search termssummaryidentificationtechnical notes

Fly Tying Materials | Fly Tying Recipes | Fly Tying Supplies | Fly Tyers Dungeon (Big Game Hooks page) — BH200 entry and the page's introductory paragraph; page undated, opened 2026-10-27 VSupports: Finish Notes, Finish Confidence.
Fly Tying Materials | Fly Tying Recipes | Fly Tying Supplies | Fly Tyers Dungeon (Big Game Hooks page) — BH200 entry; page undated, opened 2026-10-27 VSupports: Offset / Kirbed, Tech Specs Notes, Shank Features, Barb Notes, Related Models.
Fly Tying Materials | Fly Tying Recipes | Fly Tying Supplies | Fly Tyers Dungeon (Big Game Hooks page) — page introduction; page undated, opened 2026-10-27 VSupports: Country Of Origin, Series History, Hook Type / Application, Primary Application.
Fly Tying Materials | Fly Tying Recipes | Fly Tying Supplies | Fly Tyers Dungeon (Big Game Hooks page) — BH200 entry and size list; page undated, opened 2026-10-27 VSupports: Quantity per Package, Where To Find, Rarity — Basis.
Fly Tying Materials | Fly Tying Recipes | Fly Tying Supplies | Fly Tyers Dungeon (Big Game Hooks page) — shared size and price list under the model names; page undated, opened 2026-10-27 VSupports: Series History, Related Models.

Quick facts

Maker: Fly Tyers Dungeon
Model: BH200
Bend: Limerick
Eye: Ball Eye, Straight / Inline
Point: Standard / Spear
Sizes: 1/0

This record

2 photographs
1 specimen
7 labels & marks
1 source

Confidence marks

Photographically verified — Directly observable in the photograph(s) on this page.
Verified by documentation — Confirmed by manufacturer catalog, spec sheet, or published reference.
Inferred — A logical deduction from observable or documented evidence, not directly stated.
Estimated — An approximation based on visual comparison, proportional analysis, or limited data.
Speculative — A reasoned hypothesis that cannot be confirmed from available evidence.

Unmarked claims are the compiler’s synthesis; see Sources. Photographs are taken on a grid of 0.1″ (2.54 mm) squares. Tags such as IMG-1 name the photograph (IMG), label region (LBL), observation (OBS), measurement (MEA), or source (SRC) a statement rests on; CMP marks a classification compared with every measured hook in the catalog. Glossary

Entry last updated October 27, 2026. Entries are updated as new specimens, measurements, or documents come to light.
