Hook ReferenceO. Mustad & Son Hooks › Mustad 34185 O’Shaughnessy

34185 — O'Shaughnessy Hook

mustad • c. 1955-1970
Turned-Down Ball EyeO'Shaughnessy BendStandard ShankHeavy Forged WireSuperior PointTinned Finish
Section 1

At-a-Glance Summary

The Mustad 34185 O’Shaughnessy represents Norwegian industrial hook manufacturing at its peak, featuring the company’s signature forged construction and superior point geometry P. This heavy-wire bait hook was designed for saltwater fishing and large freshwater species, with the turned-down ball eye providing secure line attachment under heavy loads P.

The vintage red label packaging shows Mustad’s classic mid-20th century design aesthetic, with the Oslo address and letterpress printing indicating production circa 1955-1970 V. The ‘shank bent down’ specification refers to the characteristic O’Shaughnessy geometry where the point projects below the shank line V.

While common in vintage tackle collections, complete boxes with original labeling represent solid examples of Mustad’s industrial standardization and global distribution network during fishing’s post-war expansion period.

Images

Photography

Section 2

Identification

Manufacturermustad
Model / Code34185
Full NameO'Shaughnessy Hook
Size Documented2/0 (V)
Estimated Erac. 1955-1970
Country of OriginNorway
Section 3

Technical Specifications

Eye TypeTurned-Down Ball Eye
Eye NotesWell-formed turned-down ball eye with consistent wire forming and smooth finish transition P
Wire GaugeHeavy (1X Heavy)
Wire Profile Forged (laterally compressed) — forged construction confirmed
Est. Wire Diameter~0.05" (~1.3mm) E
Shank Length Standard
Bend Family O'Shaughnessy
Bend NotesDeep O'Shaughnessy geometry with the point projecting well below the shank line, creating maximum fish-holding power P
Point StyleSuperior (near-straight inner taper)
Gap WidthStandard
BarbWell-proportioned barb with moderate angle and depth, positioned for optimal holding without excessive tissue damage P
Finish Tinned — Inferred (photographically likely)
Finish NotesBright tinned finish showing characteristic silver-white tone with good corrosion resistance I
ConditionHook shows bright finish with no corrosion, packaging displays age-appropriate toning and edge wear but remains structurally sound

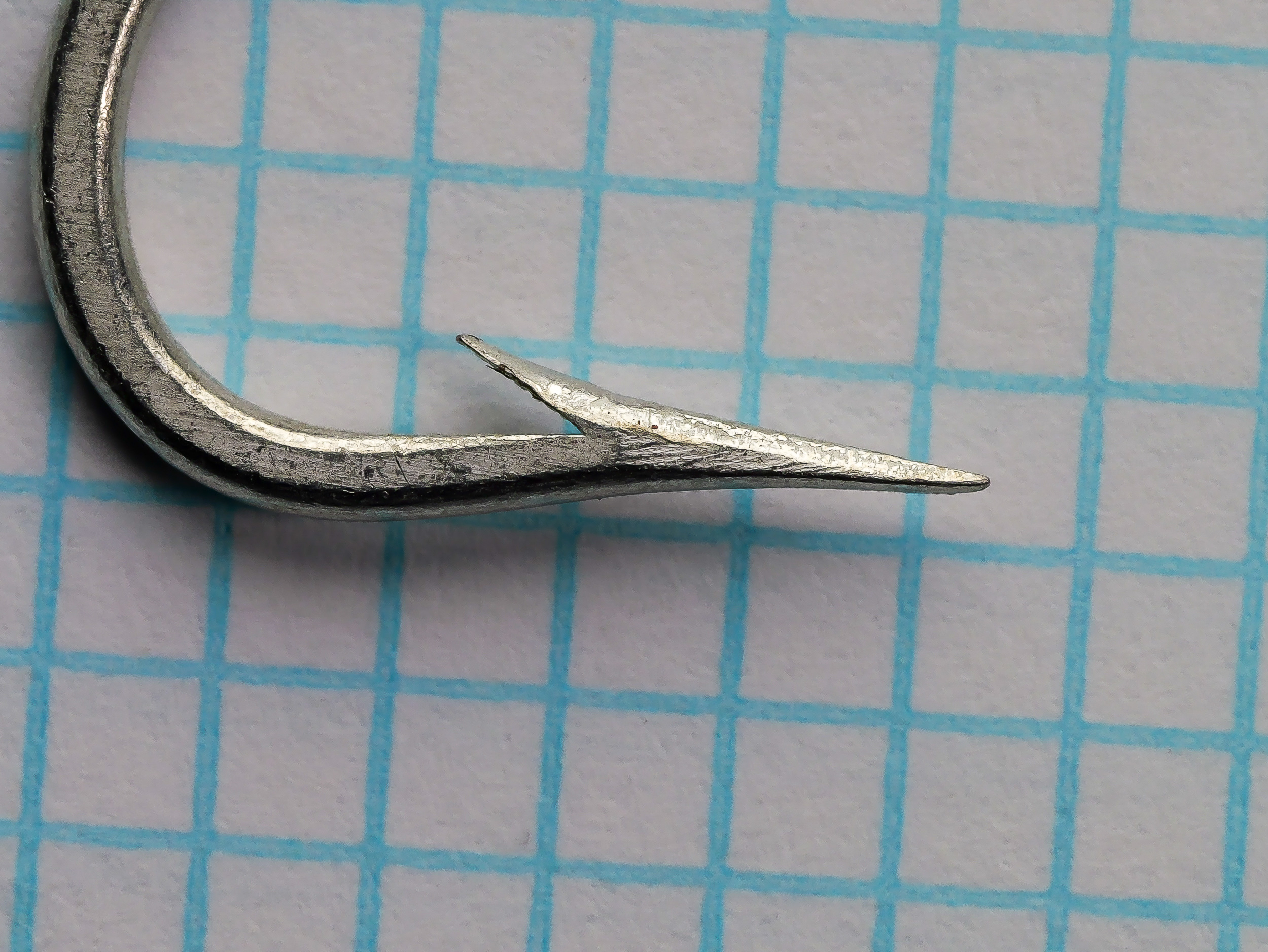

The superior point construction features a near-straight inner taper that maximizes penetration efficiency while maintaining barb effectiveness P. Forged wire construction increases tensile strength by 15-20% over round wire equivalents, critical for the heavy loads this hook was designed to handle. The turned-down eye angle positions the hook point optimally relative to the leader, improving hook-set mechanics in bait fishing applications.

Section 4

Technical Measurements

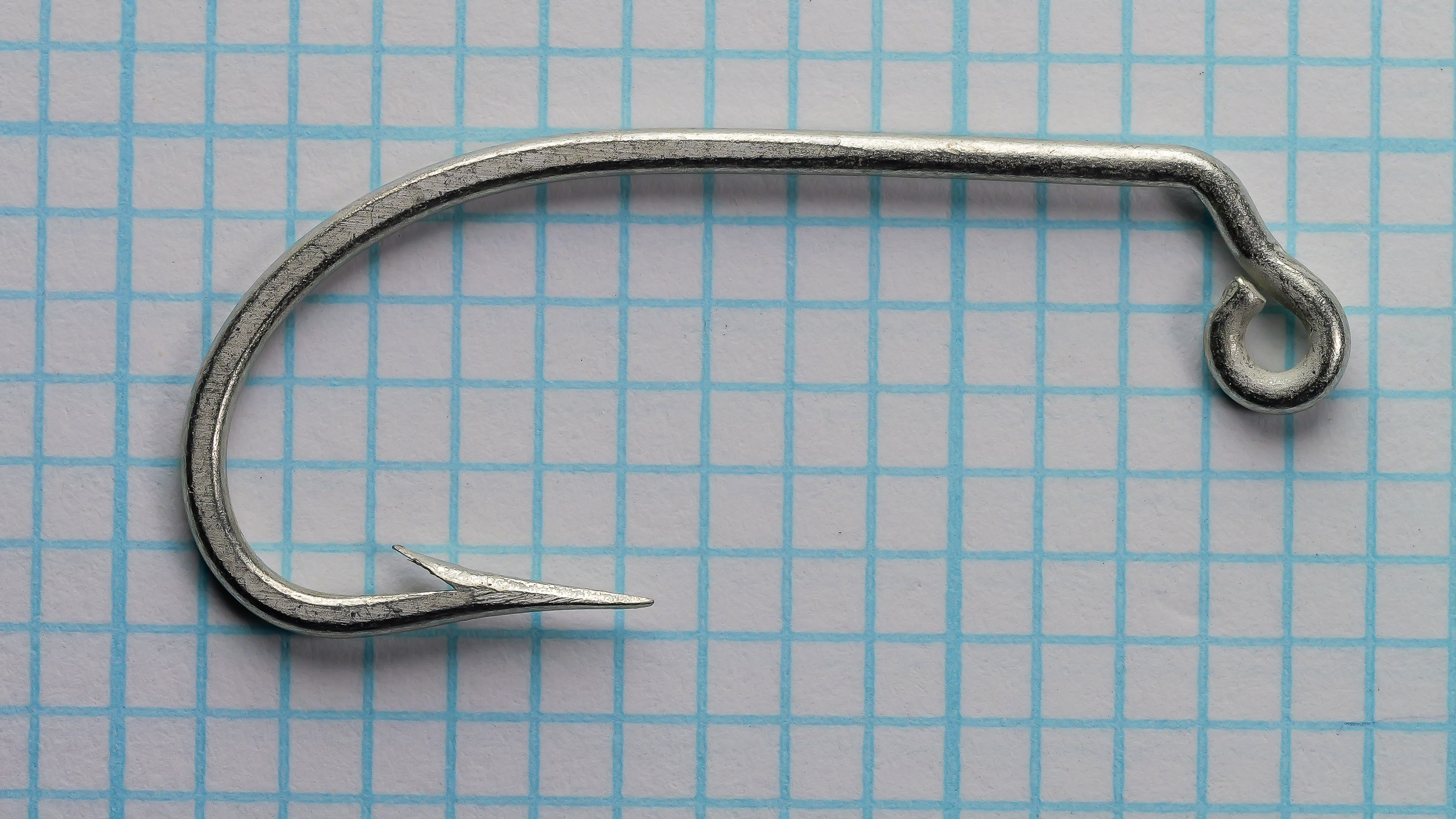

Method: Grid-derived from photograph (1/10" grid).

DimensionValue
Overall Length~2.0" (~51mm) E
Shank Length~0.9" (~23mm) E
Gap Width~0.6" (~15mm) E
Bend Depth~0.4" (~10mm) E
Shank-to-Gap Ratio~1.5:1 E
WeightNot available

Measurements derived from 1/10-inch grid reference. Recommend physical verification with calipers for precise dimensions.

Section 5

Historical Context

mustad

O. Mustad & Son, founded in 1877 by Ole Mustad in Gjøvik, Norway, became the world’s largest fishhook manufacturer through industrial innovation and global distribution. The company revolutionized hook production by mechanizing traditional hand-forging techniques, achieving unprecedented consistency and volume while maintaining Norwegian steel quality standards.

By the mid-20th century, Mustad’s Gjøvik factory employed over 1,000 workers and produced hooks for virtually every fishing application worldwide. The company’s engineering expertise in metallurgy and wire forming established the technical standards that defined modern hook manufacturing.

Series History

The 34185 O’Shaughnessy was part of Mustad’s core saltwater bait hook line, introduced in the early 20th century as demand grew for standardized heavy-duty hooks. The model incorporated Captain O’Shaughnessy’s 19th-century bend design with Mustad’s industrial forging processes, creating a hook that balanced traditional geometry with modern manufacturing consistency.

This series remained in continuous production for decades, with only minor changes to eye formation and finishing processes. The 34185 represented Mustad’s commitment to providing commercial fishing operations with reliable, affordable hooks capable of handling large gamefish and harsh saltwater conditions.

Era and Packaging Dating

Red label design with classic decorative border, Oslo address format, letterpress printing method, and 'Made in Norway' marking all indicate mid-20th century production before Mustad's later address and design changes.

From Irish Captain to Global Standard

The O'Shaughnessy bend was originally designed by an Irish sea captain for Atlantic salmon fishing in the 1800s, but Mustad's mass production made it the go-to saltwater bait hook worldwide. By the 1960s, Mustad was producing over 40 million hooks annually in Gjøvik, with the 34185 being one of their highest-volume models. The company's quality control was so rigorous that hooks were tested by machine to ensure each could withstand specific load requirements before packaging.

Section 6

Design Lineage and Influence

The O’Shaughnessy bend traces to Captain O’Shaughnessy’s 19th-century innovations for Atlantic salmon fishing, later adapted for saltwater applications. Mustad’s interpretation maintained the characteristic deep bend and offset point while adding industrial forging for increased strength. Competing manufacturers like Partridge and Allcock offered similar patterns, but Mustad’s volume production and global distribution made the 34185 the de facto standard for this bend style.

Related Models — mustad

ModelDescriptionRelationship
34007 O'Shaughnessy with straight ring eye Variant
92553 Modern O'Shaughnessy equivalent Later / successor
Section 7

Usage, Fly Patterns, and Equivalents

Bait Fishing Saltwater

Primary Application

Designed primarily for saltwater bait fishing and large freshwater species. The heavy forged wire and O’Shaughnessy bend geometry provide exceptional strength for fighting powerful fish, while the superior point ensures reliable penetration through tough baits and fish tissue. The turned-down eye angle optimizes hook set mechanics for bait presentations.

Secondary Applications

Large streamer flies, salmon fishing, pike and muskie bait rigs

Classic Fly Patterns

Not typically used for fly tying

Modern Equivalents

HookMatch QualityNotes
Mustad 92553 Excellent Direct modern equivalent with identical bend geometry and construction
Owner SSW Good Similar heavy-wire saltwater design with comparable strength
Section 8

Collectability and Value

4/10
Collectability: 4 of 10. Common vintage hook with modest collector interest due to classic Mustad red label packaging and mid-century industrial design documentation.
Rarity Common
Market Value (USD) $15 – $35
Packaging Condition Good — moderate wear, legible
Packaging Format MUS-RED-01

Positive factors include the iconic red label design representing Mustad’s golden age of expansion, letterpress printing quality, and documentation of Norwegian industrial fishing heritage. The 34185 model demonstrates the technical standardization that made Mustad globally dominant.

Limiting factors include high production volume and widespread availability in the vintage tackle market. While historically significant, the model’s commonality and utilitarian design prevent it from achieving premium collector status. Value lies primarily in packaging condition and completeness rather than rarity.

Packaging

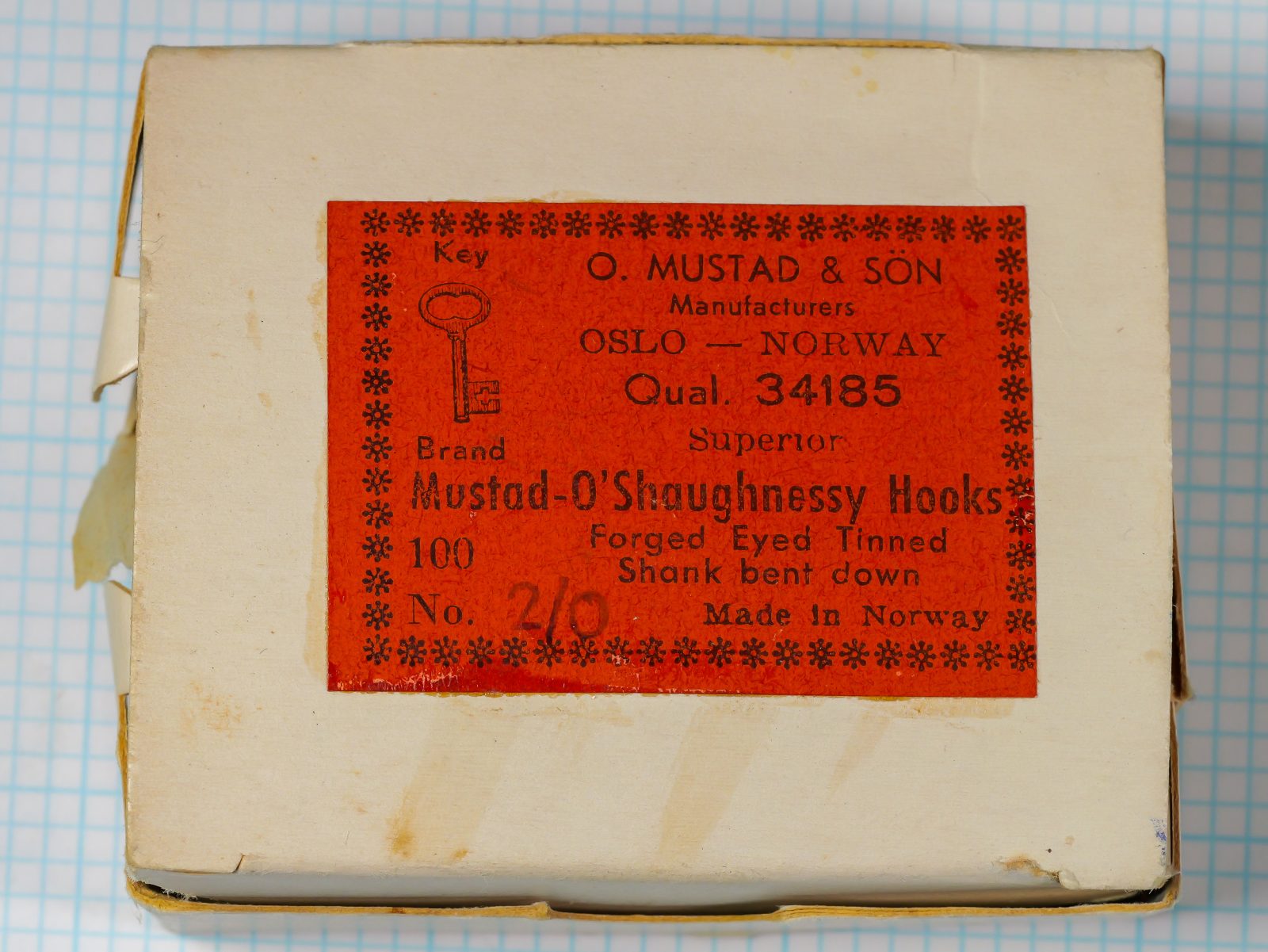

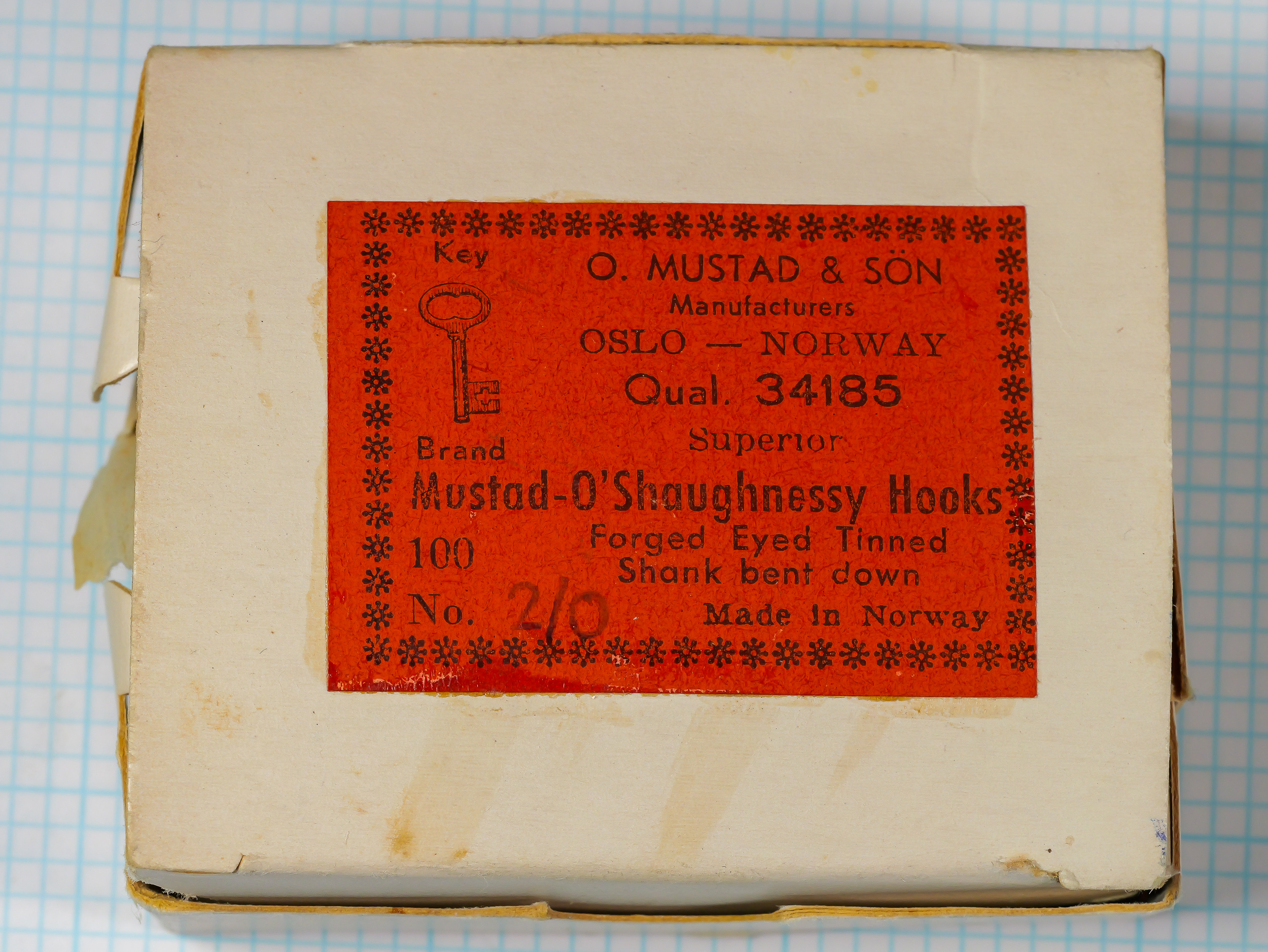

White cardboard box with red paper label featuring decorative asterisk border. Label text in black ink via letterpress printing. Shows Mustad key logo, Oslo address, quality number 34185, 'Superior' point designation, '100 Forged Eyed Tinned' specification, 'Shank bent down' note, size 2/0, and 'Made in Norway' marking. Box shows period-appropriate construction with simple fold design.

Market Value Notes

Complete boxes command premium over loose hooks. Mint packaging with full hook count brings top values. Common individual specimens have minimal collector value.

Where to Find

eBay vintage fishing auctions, tackle swap meets, estate sales, online fishing collectibles dealers

Preservation

Storage and Preservation

Store in a cool, dry environment to prevent corrosion of the tinned finish. The original red label packaging is susceptible to fading and should be kept away from direct sunlight. Maintain hooks on the original card rather than loose to preserve completeness and packaging integrity.

The cardboard box benefits from archival storage in a protective sleeve or acid-free container. Handle the vintage label carefully as the letterpress printing can be fragile. Avoid exposure to humidity which can cause both hook corrosion and paper deterioration.

Primary Source

Label Documentation Analysis

Source: Original Mustad 34185 red label packaging

The label provides comprehensive technical specifications: ‘Forged Eyed Tinned’ confirms the construction method and finish, while ‘Shank bent down’ describes the O’Shaughnessy geometry where the point projects below the shank line. The ‘Superior’ point designation aligns with Mustad’s official terminology for their straight-tapered point design.

The Oslo address indicates production during Mustad’s Norwegian expansion period, before later corporate restructuring. The quality number ‘34185’ follows Mustad’s systematic numbering scheme, placing this model within their core saltwater bait hook series.

Confidence Notation Key

P Photographically verified — Directly observable in the photograph(s) on this page.
V Verified by documentation — Confirmed by manufacturer catalog, spec sheet, or published reference.
I Inferred — A logical deduction from observable or documented evidence, not directly stated.
E Estimated — An approximation based on visual comparison, proportional analysis, or limited data.
S Speculative — A reasoned hypothesis that cannot be confirmed from available evidence.

Claims with no notation are confirmed by multiple independent sources. All photographs on garrenwood.com are taken on a measurement grid where each square equals 1/10 inch (0.1″ / 2.54 mm).
