Fly Tyers Dungeon MS 100 — Big Game

Big Game hook silhouette
Hook Reference › Fly Tyers Dungeon › Fly Tyers Dungeon MS 100 — Big Game

Fly Tyers Dungeon MS 100

Big Game

Evidence reviewed October 28, 2026. Marks: P photographically · V verified · I inferred · E estimated · S speculative What they mean

↔ Compare this hookPrint size chart

Summary

The MS 100 is a big game fly hook sold by Fly Tyers Dungeon under the name Big Game. The maker lists it as an all-purpose hook for fresh and salt water V.

The recorded specimen is a size 1/0 package with a printed paper label.

Photographic record

2 photographs

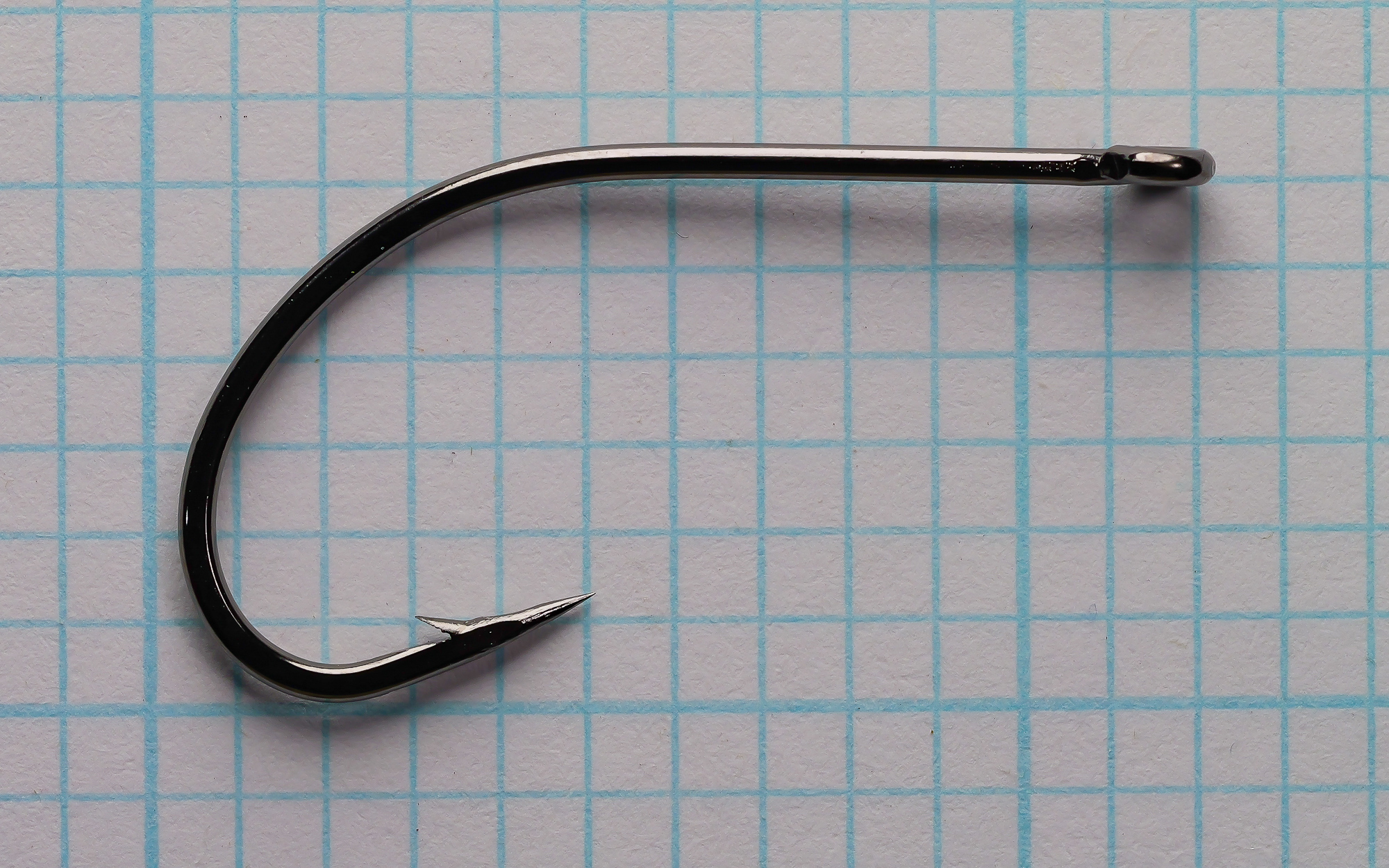

Side view of a dark, glossy fishhook with a straight eye, round bend and barbed point, lying on blue ruled paper.
IMG-1Fly Tyers Dungeon — New entry — image 1 Loose hook assigned to specimen S1, shown in side view on ruled paper. It probably belongs with the size 1/0 package, but nothing in the photographs confirms this.

How to identify it

The recorded package prints the name and code together as Big Game MS 100, with the size on the line below P. The maker’s own page spells the code MS100, without a space V.

The arched FTD logo and the web address on the label identify the maker P. The code separates the model from BH200, ST5500, OS700, CARP and PK 25, which the maker lists alongside it V.

Technical profile and measurements

Features of the model, as recorded
FeatureRecordedEvidence
EyeBall Eye, Straight / Inline
Show noteHide note

Small closed eye in line with the shank P. A short flattened-looking collar with fine surface marks sits just behind it P.

OBS-1
WireFine (1X Fine), Forged
ShankShort (1X–2X Short) — Plain
BendWide gap
Show noteHide note

Smooth, continuous round bend. The curve starts well behind the eye and ends in a point turned back toward the shank P.

OBS-3
PointStandard / Spear
Show noteHide note

Single small barb cut on the point, set back from the tip and angled toward the bend P.

OBS-5
Finishstated on packaging
Show noteHide note

The maker lists the finish as black nickel V. The specimen is dark gray-black and glossy; the photograph cannot identify the coating P.

SRC-1OBS-6

The maker lists the MS100 as carbon steel with a stinger-type gap V. It describes the point as slightly offset and upturned V.

The maker gives no direction for the offset. Viewed from the eye down the shank, an offset to the left is kirbed and one to the right is reversed.

On the recorded specimen the shank is straight, smooth and plain from the eye to the start of the bend P. The point is straight and tapered and turns back toward the shank P. A flat side view cannot show offset, so the photograph neither confirms nor rules it out.

Measurements

Per size, with how each dimension was taken
SizeOverall lengthShank lengthGap widthBend depthWire diameterWeight
1/0Specimen S129.6 mm EcaliperMEA-119.7 mm EcaliperMEA-211.6 mm EcaliperMEA-3—1.1 mm EcaliperMEA-4—
Calibrated SVG True-scale preview

How hook dimensions are measuredA hook outline with dimension lines for overall length, shank length, gap, bend depth, and wire diameter.Overall lengthShank lengthGapBend depthWire diameter
Overall length
Eye to the farthest point of the bend.
Shank length
Eye to the start of the bend.
Gap
Point to shank, at right angles to the shank.
Bend depth
Shank to the bottom of the bend.
Wire diameter
Across the wire, measured by caliper where possible.

Specimens, packaging, and label

This record documents one specimen. It describes that specimen only, not every example of the model.

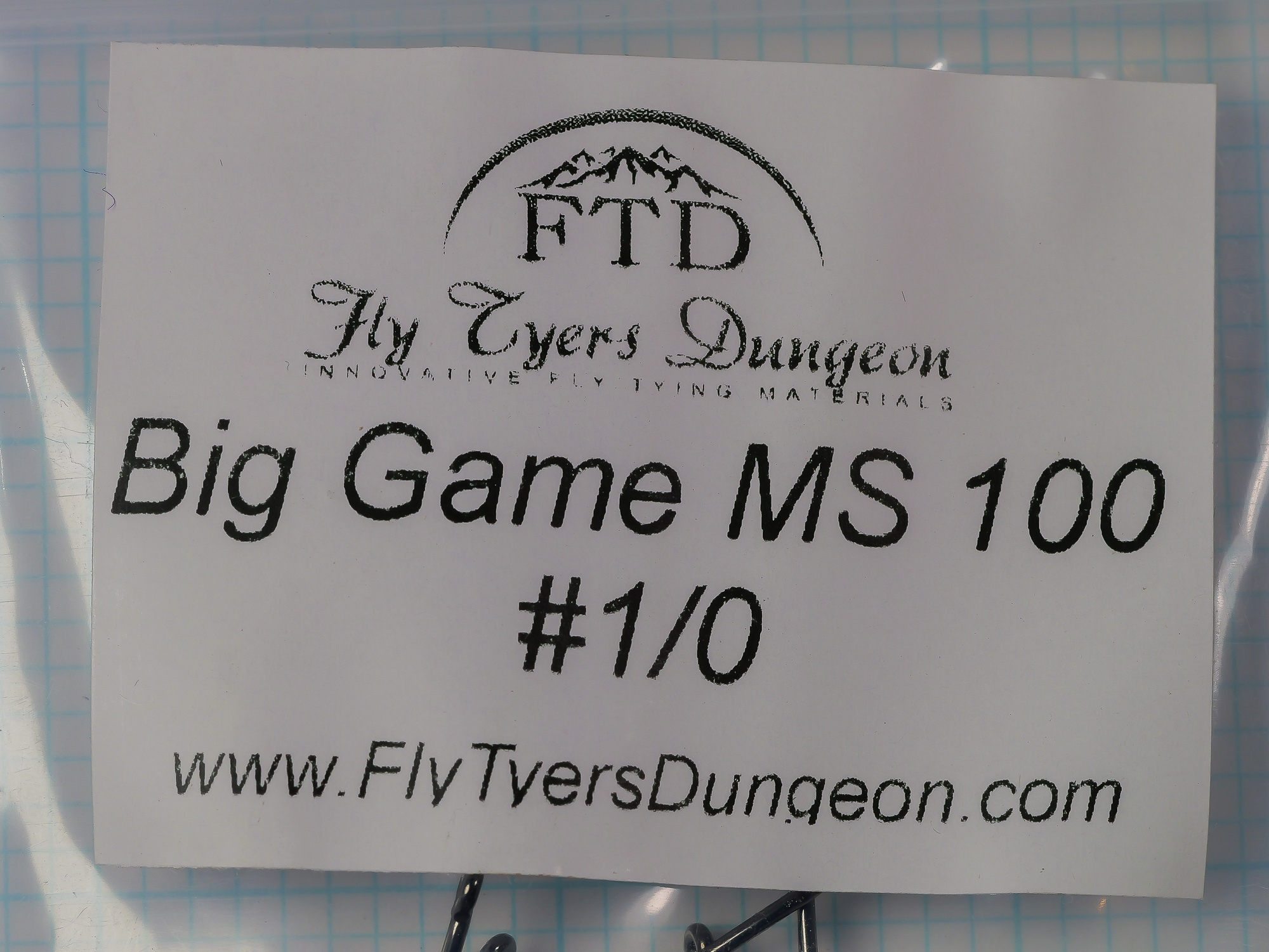

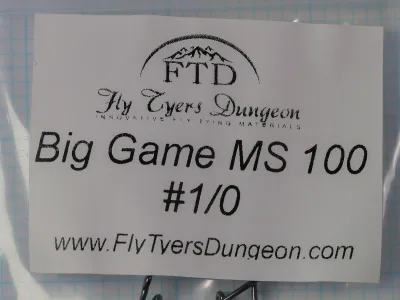

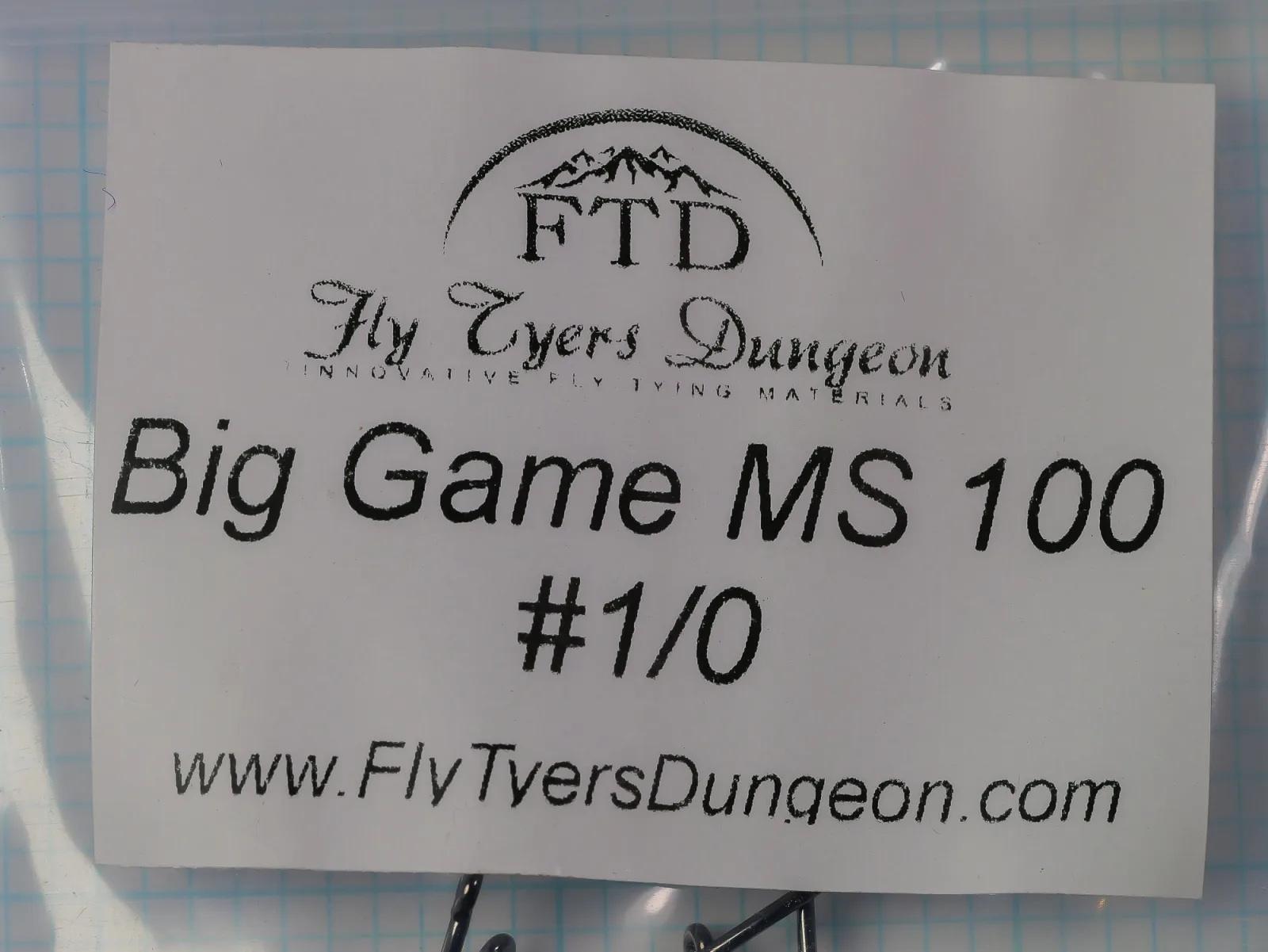

White paper label on a clear plastic bag reading Big Game MS 100 and #1/0, with an arched FTD logo and a Fly Tyers Dungeon wordmark.
Open full size

S1 · Plastic bag, size 1/0

Size
1/0 (printed on the label)
Container
Other
Hook condition
Loose hook in the photograph assigned to this specimen shows no rust, pitting or coating loss (P). Its link to the bag is probable, not established. Only the ends of the hooks inside the bag are visible (P).
Packaging condition
Very Good — light wear, fully legible
Wear
clear plastic bag, left and right of the label: Creases and glare bands in the plastic sheeting; right edge of the label paper slightly bowed. LBL-5
Measured
size 1/0
Photographs
IMG-1IMG-2

Clear plastic bag with a white paper label seen through the plastic. The plastic has creases and glare bands at left and right of the label, and the right edge of the label paper is slightly bowed P. Ends of at least three hooks show below the label; the count is not visible P.

What the label says

LBL-1 trademark · label, top center, arched logo from IMG-2
FTD
LBL-2 printed · label, upper center, script wordmark with spaced tagline beneath from IMG-2
Fly Tyers Dungeon
INNOVATIVE FLY TYING MATERIALS
LBL-3 printed · label, center, two large italic lines from IMG-2
Big Game MS 100
#1/0
LBL-4 printed · label, bottom line from IMG-2
www.FlyTyersDungeon.com
Trademark
Arched FTD logo: a thin speckled arc over a line of stylized mountain peaks, with the letters FTD in a serif face beneath the peaks. Below it is a script wordmark and a letter-spaced tagline.
As entered on the specimen record
FTD
Fly Tyers Dungeon
INNOVATIVE FLY TYING MATERIALS
Big Game MS 100
#1/0
www.FlyTyersDungeon.com
Layout
Paper label with centered text. From the top: arched FTD logo; script wordmark with a spaced tagline beneath; the name and code on one large line; the size on the next line; the web address on the bottom line P.
Typeface
The name, code and size lines are large and italic P. The FTD letters are in a serif face P. The tagline is in letter-spaced capitals P. The wordmark is a script whose swash initial on Tyers resembles a C; the web address prints a plain T P.
Later marks
None visible P.

Pattern history and manufacturer context

Series

The maker lists the MS100 in a line of six big game hooks that share one size list, #8 to #7/0. Size #1/0 is on the list, which does not show which sizes each model comes in V.

The maker states that the hooks on that page are made in China V. No factory, designer or introduction date is documented.

Fly Tyers Dungeon — A November 2024 article says the maker's owner added hooks to the product line about a year earlier V. It names no model, size or year, so it does not date the MS 100. Read the maker’s history →

Use

  • Saltwater
  • Other

Primary application

The maker presents the MS100 as an all-purpose big game hook for fresh and salt water, from trout to tarpon V.

Collecting and buying

1.5 / 10CollectabilityRarity: Common

Easy to find. Nothing recorded shows collector demand beyond use.

Basis: Offered for sale by its maker V.

No sold sales are recorded, so no value range is given.

Where to find

Fly Tyers Dungeon's own website V. No other sellers are recorded.

Modern equivalents and related hooks

Best matchRelated by Attribute

Computed automatically from catalog data — updated as new hooks are added.

SilhouetteHook ModelMatchAnalysisCompare
37187 No. 1/0 — 37187 silhouette37187 No. 1/0 — 3718772%Matches: Wire, Gap, Eye, Eye Orient., Point +4 moreDiffers: Shank: Short (1X–2X Short) vs Standard; Finish: Other vs Bronzed; Forging: Forged vs Round +3 moreCompare
189 No. 1/0 — No. 189 English Bait Hook silhouette189 No. 1/0 — No. 189 English Bait Hook69%Matches: Shank, Wire, Gap, Eye, Eye Orient. +3 moreDiffers: Point: Standard / Spear vs Hollow Point; Finish: Other vs Gold-Plated; Forging: Forged vs Round +4 moreCompare
37142 No. 6/0 — Mustad 37142 silhouette37142 No. 6/0 — Mustad 3714265%Matches: Shank, Wire, Gap, Eye, Eye Orient. +3 moreDiffers: Point: Standard / Spear vs Hollow Point; Finish: Other vs Gold-Plated; Forging: Forged vs Round +4 moreCompare
100 No. 14 — Kinsey Hook silhouette100 No. 14 — Kinsey Hook63%Matches: Shank, Gap, Eye, Eye Orient., Point +3 moreDiffers: Wire: Fine (1X Fine) vs Extra-Fine; Finish: Other vs Black Japanned; Forging: Forged vs Round +2 moreCompare
Z1 No. 2 — Jack Hilton Carp Hooks silhouetteZ1 No. 2 — Jack Hilton Carp Hooks62%Matches: Shank, Gap, Eye, Eye Orient., Point +4 moreDiffers: Bend: Other vs Round / Kendal; Wire: Fine (1X Fine) vs Standard; Finish: Other vs Black Japanned +4 moreCompare

ExploratoryRelated by Shape (SVG)

Ranked purely by silhouette geometry — attribute labels are ignored.

SilhouetteHook ModelMatchCompare
204 CY No. 3, 11 — Hameçons Irlandais-Mustad silhouette204 CY No. 3, 11 — Hameçons Irlandais-Mustad60%Compare

Sources, open questions, and record notes

Sources & Documentation

This specimen and its packaging — photographed, 2 images
Supports: size documentedeyebendbarbfinishoverall lengthshank lengthgap widthwire diameter measuredmeasurement notesmeasurements availablepackagingmeta titlemeta descriptionprimary search termssummarytechnical notesidentification

Entry last updated October 28, 2026. Entries are updated as new specimens, measurements, or documents come to light.
