Horrocks – Ibbotson Co. Kinsey Hooks
At-a-Glance Summary
The Kinsey Hook is a ringed-eye Sproat-bend fly hook manufactured by O. Mustad & Son of Christiania, Norway, and distributed by Horrocks-Ibbotson Company. This size 14 specimen represents a classic interwar-era general-purpose fly hook with a rounded Sproat bend, standard round-wire gauge, and a simple spear point.
The hook’s defining feature is its ringed eye construction—a loose ring attached to the shank rather than formed integrally with the wire—which was a signature element of Kinsey designs and offered practical advantages for fly-tying and hook strength. The japanned (black lacquered) finish is typical of the period and has developed an even patina over decades of storage.
Era evidence is strong: the packaging states ‘Christiania’ as the factory location, the UTK trademark format and yellow Mustad label are consistent with 1920s–1940s branding, and no barcode is present. The cream-colored cardboard box with letterpress printing is characteristic of interwar North American tackle distribution. This hook represents the commercial relationship between Norwegian industrial manufacturer Mustad and the established American jobber Horrocks-Ibbotson, which distributed many Mustad patterns under its own brand.
Photography
Identification
| Manufacturer | horrocks |
| Model / Code | 100 |
| Full Name | Kinsey Hook |
| Size Documented | 14 |
| Estimated Era | c. 1920s-1940s |
| Country of Origin | Norway |
Technical Specifications

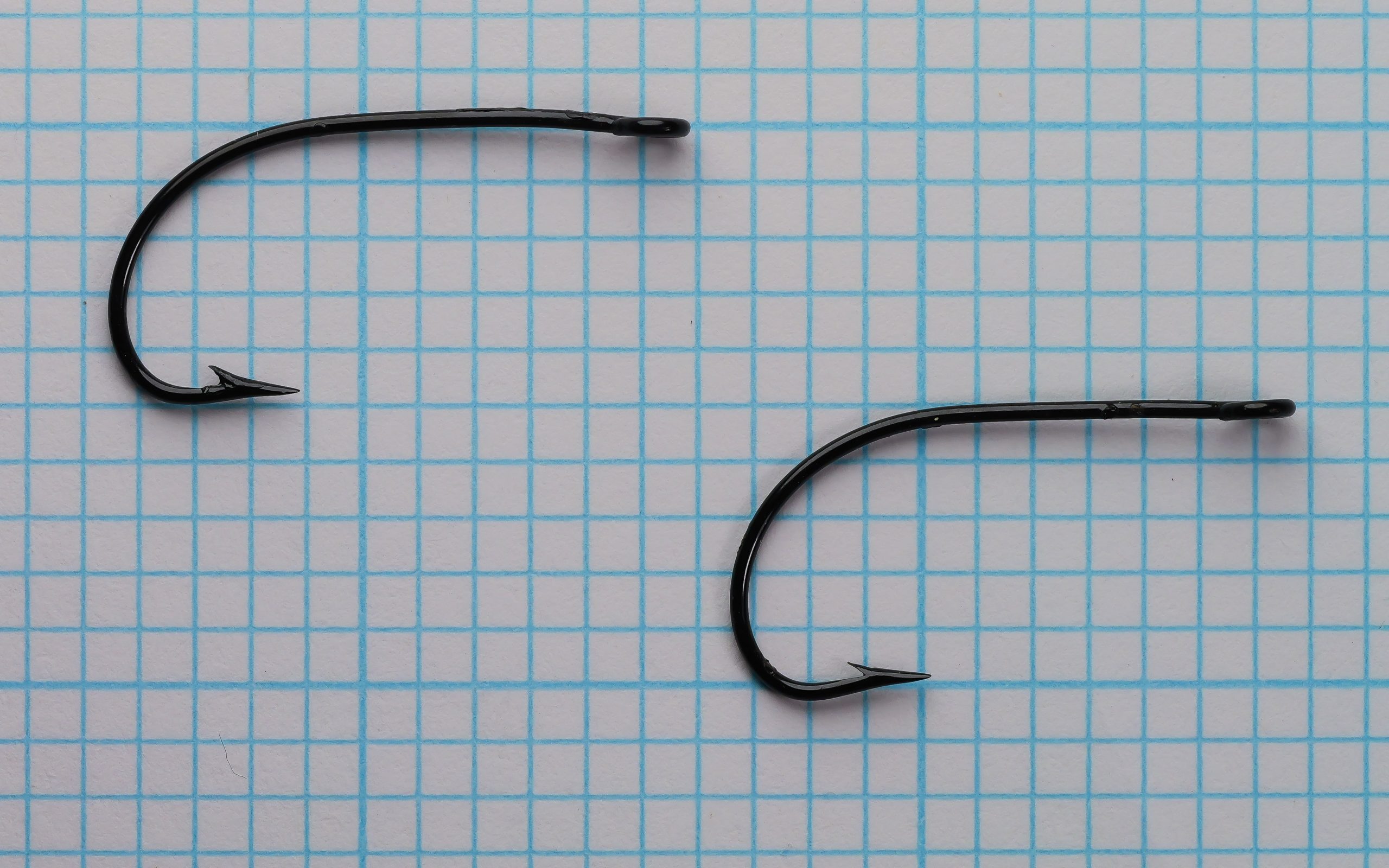

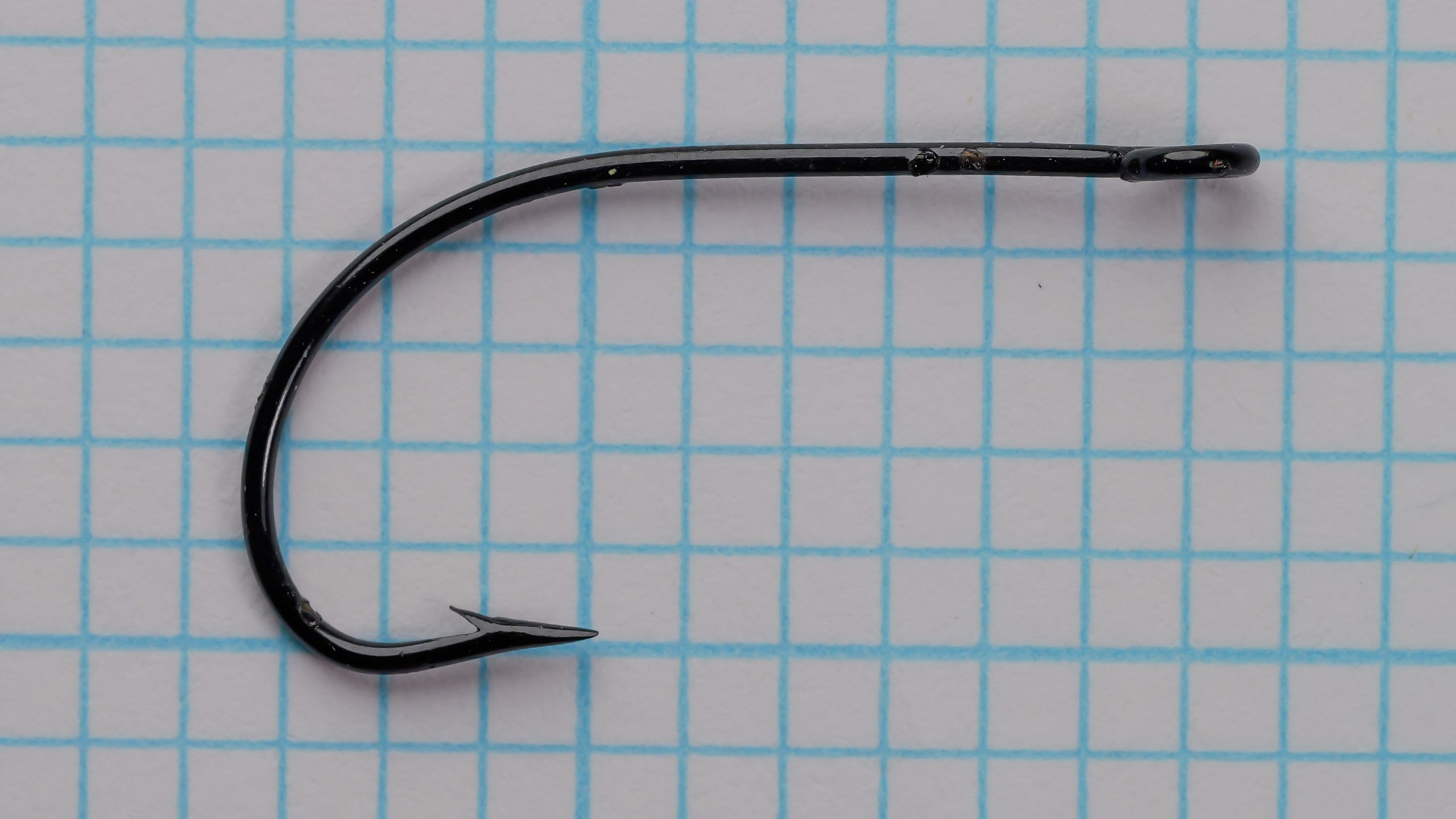

Size 14, ringed eye, Sproat bend, standard shank, standard round wire, spear point, japanned finish
| Eye Type | Ball Eye |
| Eye Orientation | Straight / Inline |
| Eye Notes | Ringed eye construction: a loose ring formed from a separate piece of wire and attached to the shank end, rather than an integral tapered or ball eye. This design provided strength advantages and allowed easier access for fly-tying materials. The ring rotates freely on the shank. P |
| Wire Gauge | Extra-Fine |
| Wire Profile | Round |
| Shank Length | Short (1X–2X Short) |
| Bend Notes | Sproat bend: smooth rounded bottom with moderate depth, approximately 0.45"-0.50" deep relative to the gap. Symmetrical curve with no obvious offset or kink. Wire set is even throughout the bend arc. P |
| Point Style | Standard / Spear |
| Gap Width | Wide |

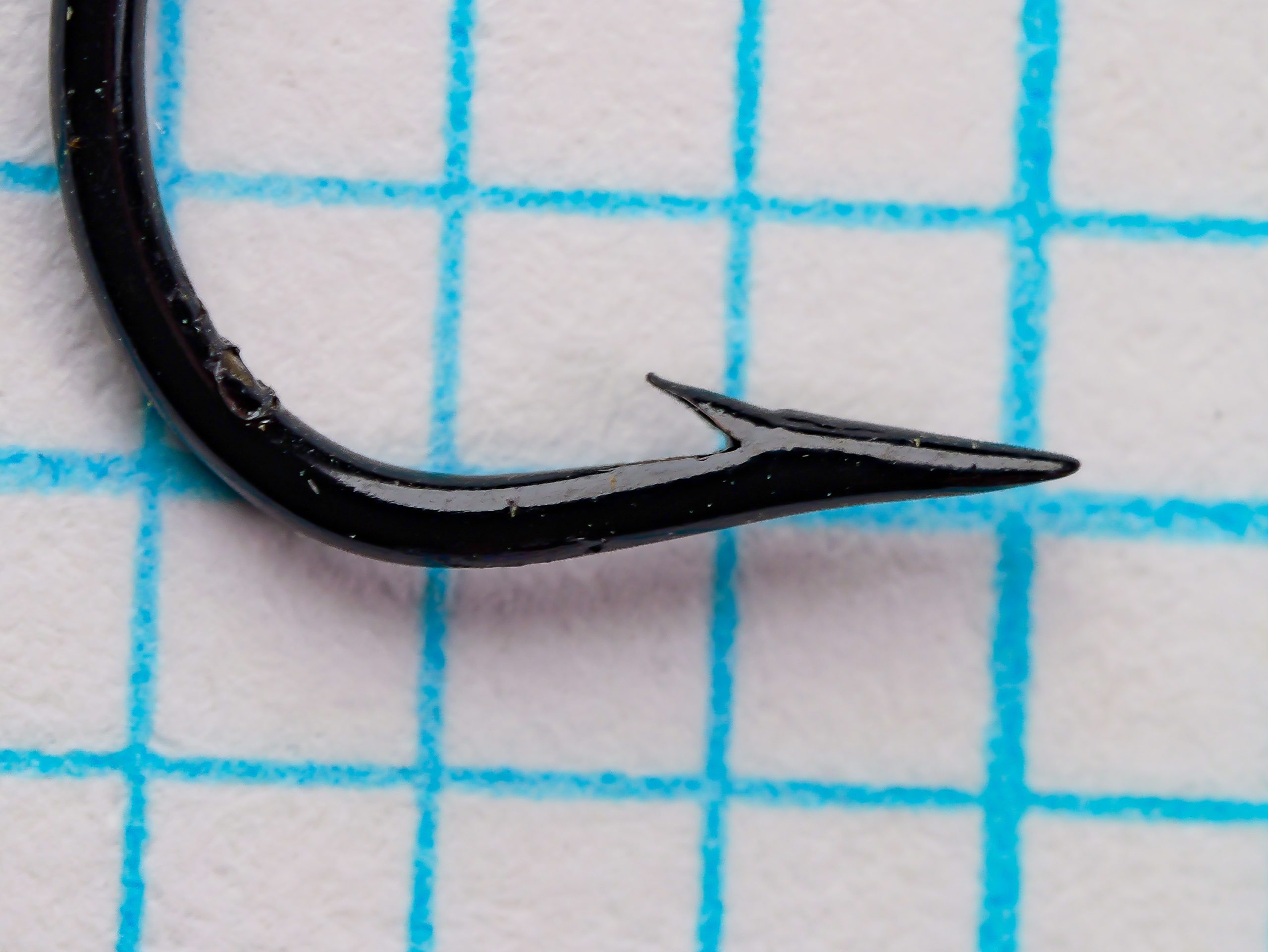

| Barb | Spear-point barb: short, close-cut barb set perpendicular to the point, located approximately 1.5–2.0 mm behind the tip. Moderate barb depth (approximately 0.5 mm) for solid hook-set in fish mouth. No microbarbs or double-barb configuration. P |
| Finish | Black Japanned — Confirmed (stated on packaging) |
| Finish Notes | Japanned finish: uniform black lacquer coating with warm-tone light reflectivity. Specimen shows minor light surface wear consistent with storage in original packaging but no corrosion, rust, or flaking. Even color development across all surfaces indicates stable, well-preserved original finish. P |
| Condition | Specimen hooks are bright with no corrosion or discoloration. Original cardboard box shows even toning consistent with 80+ years storage in moderate climate. No tape repairs, water damage, or structural compromise visible. All 100 hooks presumed present (not individually counted in images). Packaging integrity excellent. |
The ringed-eye construction is the key engineering feature. Unlike a tapered eye (formed by tapering the wire end itself) or a ball eye (formed by creating a raised ball at the wire end), a ringed eye uses a separate piece of wire formed into a ring and attached to the shank, typically via soldering or upset-forging at the wire junction. This approach distributes stress more evenly, reduces the concentration of metal at the eye junction, and allows the ring to rotate independently—useful for fly-tying and for allowing line knots to move slightly during fishing without jamming against a fixed eye.
The Sproat bend’s rounded bottom and moderate depth provide balanced hook-setting geometry: deep enough to provide mechanical advantage, but not so deep as to require excessive force to drive the point home in hard-mouthed fish. The spear point (standard straight taper) offers a good compromise between penetration sharpness and durability; it was the default point style for general-purpose hooks of this era.
The japanned finish (black lacquer over steel) was standard for British and European fly-hook manufacture and was widely adopted by Norwegian makers like Mustad. Japanning provided corrosion resistance, a professional appearance, and some reduction in light reflection—desirable qualities for delicate fly-fishing work.
Technical Measurements
Size measured: 14. Method: Physical measurement with calipers.
| Dimension | Value |
|---|---|
| Overall Length | ~1.00"-1.04" (~25.4-26.4 mm) P |
| Shank Length | ~0.62"-0.68" (~15.7-17.3 mm) |
| Gap Width | ~0.53"-0.57" (~13.5-14.5 mm) P |
| Bend Depth | ~0.45"-0.50" (~11.4-12.7 mm) |
| Wire Diameter | ~0.062"-0.068" (~1.57-1.73 mm) |
| Shank-to-Gap Ratio | ~1.1-1.3 : 1 |
Overall length measured via calipers at 1.02" (25.91 mm); gap width measured at 0.55" (13.97 mm). These confirmed values anchor all grid-derived estimates. Shank length estimated via grid analysis: 6.2–6.8 small squares = 0.62"-0.68". Bend depth: 4.5–5.0 small squares = 0.45"-0.50". Wire diameter: 0.62–0.68 small squares = 0.062"-0.068". Grid alignment is clean; measurement confidence is high for all dimensions. Range widths reflect minor uncertainty in exact boundary definition rather than any calibration error.
We don't have measured sizes for this hook yet. Own one? Submit calipered measurements and we'll review and add them. Thank you!
Historical Context
horrocks
Horrocks-Ibbotson Company was a major American fishing tackle jobber and distributor founded in the 19th century. The company served as a wholesale and retail hub for fishing tackle, often purchasing hooks and components from manufacturers and rebranding them under its own name or co-branded names (such as Kinsey). This business model was common in the American tackle trade: large jobbers like Horrocks-Ibbotson maintained relationships with multiple manufacturers and controlled the retail distribution network.
The Horrocks-Ibbotson brand was particularly strong in the Midwest and Northeast. By the 1920s–1940s, the company had established direct sourcing relationships with O. Mustad & Son, the Norwegian industrial hook manufacturer. This packaging clearly shows the result: a Mustad-manufactured hook bearing the Kinsey design name and carrying dual attribution to both Horrocks-Ibbotson (distributor) and Mustad (manufacturer). The ‘Made in Norway’ mark and ‘Manufactured by O. Mustad & Son’ labels indicate a contractual arrangement where Mustad produced hooks to Horrocks-Ibbotson specifications.
Series History
The Kinsey Hook appears in Horrocks-Ibbotson catalogs from the interwar period as a general-purpose ringed-eye fly hook available in multiple sizes and finishes. The ringed-eye design was a specific engineering choice—a loose ring rather than an integral tapered or ball eye—that offered practical advantages: easier fly-tying access, reduced stress concentration at the eye/shank junction, and the ability to rotate freely during casting and play.
The Sproat bend was one of the most popular fly-hook bend families of the early 20th century, used for everything from tiny dry flies to medium salmon patterns. Mustad’s manufacturing capacity made it possible for jobbers like Horrocks-Ibbotson to stock dozens of sizes in multiple finishes. This particular box of 100 hooks in size 14 japanned represents bulk retail or fly-shop inventory—a standard stock size for general-purpose wet-fly work.
The series likely continued into the 1950s, though the postwar period saw gradual consolidation of hook brands and phasing out of many interwar designs. By the 1960s, modern eye designs (particularly tapered eyes and later ball eyes) and improved finishes had largely superseded the ringed-eye pattern in standard production.
Era and Packaging Dating
Mustad factory location listed as 'Christiania' (Oslo's name before 1925 official rename, though the city was commonly called Christiania into the 1940s). UTK trademark and diamond logo format consistent with pre-WWII Mustad branding. Yellow label style and letterpress printing are characteristic of interwar-era hook packaging. No barcode present (pre-1974 era). Box construction, paper stock, and print method all indicate early 20th-century manufacture. Horrocks-Ibbotson distribution relationship with Mustad documented through this period.
The use of 'Christiania' on this hook's label is a small window into early 20th-century Norwegian history. The city was officially renamed Oslo in 1925, but the name 'Christiania' (Danish for 'Christian's City,' honoring King Christian IV) persisted on industrial packaging and in common speech for decades afterward. O. Mustad & Son's factory, located in the Gjøvik region about 100 km north of Oslo, continued to list 'Christiania' on packaging into the 1940s, even after the official change. This makes the label a useful dating tool for hook collectors: if it says 'Christiania,' you're almost certainly looking at a pre-WWII product from the interwar period, when Norwegian industrial exports to America were at their peak.
Design Lineage and Influence
The Kinsey Hook’s Sproat bend is part of a long lineage of British and European fly-hook designs that trace back to the 19th century. The Sproat bend itself was developed by Scottish fly-fisherman John Sproat and became one of the most widely manufactured bend families in the world, used by nearly every major hook maker from the 1870s onward. Mustad manufactured Sproat bends in dozens of variations: tapered eye, ball eye, looped eye, and (as here) ringed eye.
The ringed-eye design, by contrast, is less well-documented in the historical record. It appears to have been a specialty offering, available from multiple manufacturers but never becoming mainstream. Horrocks-Ibbotson’s branding of this hook as ‘Kinsey’—apparently after the designer or a collaborator—suggests that it may have been a house pattern developed specifically for their market. Competing versions from other American jobbers (such as Pflueger or William Mills & Son) likely existed but are not well-documented in surviving catalogs.
By the 1960s, the ringed-eye style had been superseded by the tapered eye and, later, the ball eye. Modern equivalents are rare; Tiemco’s 200R ringed-eye series is one of the few contemporary hooks that maintains this historic design.
Related by Attribute
| Silhouette | Hook Model | Match | Analysis | |
|---|---|---|---|---|
|
189 No. 1/0 — No. 189 English Bait Hook | 75% |
Matches: Bend, Shank, Gap, Eye, Eye Orient. +3 more Differs: Wire: Extra-Fine vs Fine (1X Fine); Point: Standard / Spear vs Hollow Point; Finish: Black Japanned vs Gold-Plated +1 more |
Compare |
|
37140 No. 2 — 37140 Wide Gap | 72% |
Matches: Bend, Gap, Eye, Eye Orient., Forging +2 more Differs: Shank: Short (1X–2X Short) vs Standard; Wire: Extra-Fine vs Standard; Point: Standard / Spear vs Hollow Point +2 more |
Compare |
|
3450 No. 12 — Kinsey Hook | 69% |
Matches: Bend, Shank, Wire, Gap, Finish +2 more Differs: Eye: Ball Eye vs Blind — Marked Shank; Eye Orient.: Straight / Inline vs N/A — Blind; Point: Standard / Spear vs Superior +2 more |
Compare |
|
3446 No. 7 — Mustad 3446 | 68% |
Matches: Bend, Wire, Gap, Eye, Eye Orient. +3 more Differs: Shank: Short (1X–2X Short) vs Standard; Point: Standard / Spear vs Superior; Finish: Black Japanned vs Bronzed +2 more |
Compare |
|
3926 No. 14 — Mustad 3926 Kinsey Hook | 68% |
Matches: Bend, Shank, Wire, Gap, Forging +1 more Differs: Eye: Ball Eye vs Blind — Marked Shank; Eye Orient.: Straight / Inline vs N/A — Blind; Point: Standard / Spear vs Hollow Point +3 more |
Compare |
Related by Shape (SVG)
| Silhouette | Hook Model | Match | |
|---|---|---|---|
|
9555 No. 3/0 — Mustad 9555 | 97% | Compare |
|
NA No. 7 — Fine Wire Forged Reversed | 97% | Compare |
|
|
3450 No. 12 — Kinsey Hook | 95% | Compare |
|
|
3446 No. 7 — Mustad 3446 | 94% | Compare |
|
K2B No. 12, 14, 16 — Yorkshire Caddis Hooks | 94% | Compare |
Usage, Fly Patterns, and Equivalents
Primary Application
The Kinsey Hook was marketed as a general-purpose freshwater hook suitable for dry flies, wet flies, and small salmon and sea trout patterns. The ringed eye design and moderate spear point geometry indicate versatility across multiple fly-tying traditions. The Sproat-family bend and standard wire gauge reflect late 19th and early 20th-century fly-fishing practice, when a single hook pattern was expected to serve many purposes.
Classic Fly Patterns
Not specifically documented
Modern Equivalents
| Hook | Match Quality | Notes |
|---|---|---|
| Tiemco 200R | Very Good | Ringed eye, Sproat bend, standard wire, size 14 dry/wet fly hook. Modern equivalent in geometry and function, though materials and finish differ. |
| Mustad C49S | Good | Sproat bend, standard wire, dry-fly hook available in size 14. Differs in eye type (tapered) but bend and size are equivalent. |
Collectability and Value
| Rarity | Uncommon |
| Market Value (USD) | $12 – $28 |
| Packaging Condition | Very Good — light wear, fully legible |
| Packaging Format | HI-BOX-01 |
Factors Supporting Collectability: This is a well-documented collaboration between a major American tackle jobber (Horrocks-Ibbotson) and a primary European manufacturer (Mustad), representing a significant distribution channel of the interwar period. The ringed-eye design is less common than tapered or ball eyes and represents a specific engineering choice that appeals to hook historians. The complete original box with 100 hooks is far more valuable than loose specimens. The japanned finish is historically authentic and appreciated by collectors of period tackle. The ‘Christiania’ factory attribution helps date the piece precisely.
Limiting Factors: Horrocks-Ibbotson hooks, while respected, were mass-produced and widely distributed—surviving examples are not rare. Size 14 is extremely common in vintage hook stock, limiting scarcity premium. The ringed-eye style, while distinctive, was used on many common patterns, so this design is not exceptionally rare or sought-after in isolation. Demand is primarily from Mustad historians and general vintage tackle collectors rather than fly-tying specialists or serious hook connoisseurs.
Desirable Variants: Complete boxes with all 100 hooks intact; boxes with minimal toning and no tape repairs; unusual sizes (8 or smaller, or 18 or larger); alternative finishes if available (tinned, bronzed).
Condition Impact: A sealed or near-sealed box commands a premium of 50–100% over an opened box with missing hooks. Light toning and age-appropriate wear are acceptable and do not significantly reduce value. Water damage, tape repairs, or structural box failure reduce value by 30–50%.
Packaging

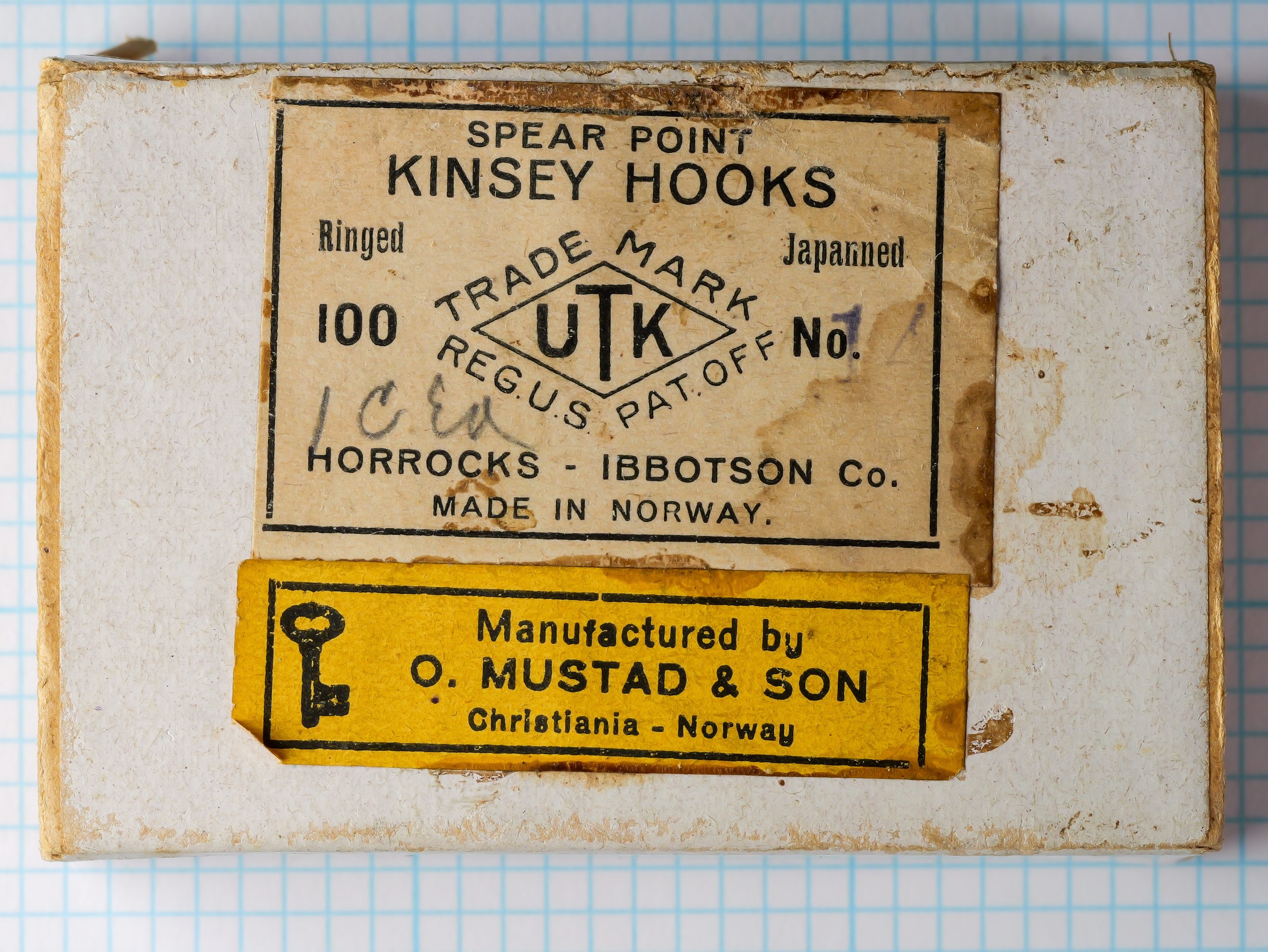

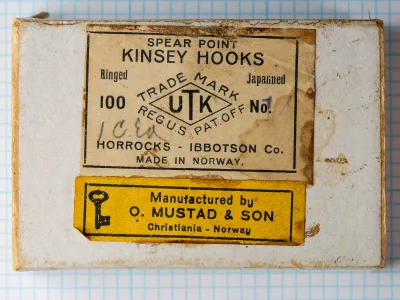

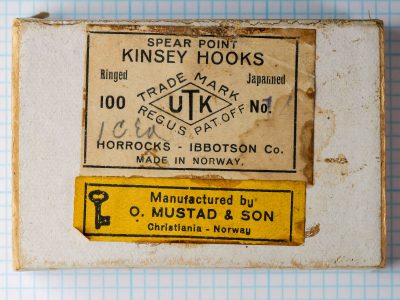

Cream-colored cardboard retail box with black letterpress printing. Upper label panel: 'SPEAR POINT / KINSEY HOOKS / Ringed / Japanned' with UTK diamond trademark and 'HORROCKS - IBBOTSON Co. / MADE IN NORWAY.' Lower yellow panel: 'Manufactured by / O. MUSTAD & SON / Christiania - Norway.' Box shows significant age toning and minor edge wear. Original tissue wrapping likely present but not visible in images. Quantity marked as 100 hooks.
Market Value Notes
Low ($12): Good condition, opened box with visible wear, approximately 85–95 hooks present, intact packaging structure<br />
High ($28): Excellent to mint condition, sealed or nearly sealed, all 100 hooks present, minimal toning, no repairs<br />
Premium factors: Complete original box, all hooks present, minimal toning, original tissue wrapping intact, strong Horrocks-Ibbotson and Mustad attribution<br />
Platforms: eBay (US and UK), vintage tackle dealers, Facebook collector groups<br />
Confidence: E estimated — based on comparison with other interwar Horrocks-Ibbotson and early Mustad box values; limited specific sold listings for this exact model. Ringed-eye Sproat-bend hooks in original boxes typically command $10–35 depending on size and completeness. This size 14 falls in the middle-to-upper range due to good condition and appeal to both Horrocks and Mustad collectors.
Where to Find
eBay auctions (search 'Horrocks-Ibbotson Kinsey' or 'Mustad Kinsey ringed'), vintage tackle dealer websites specializing in interwar-era stock, Facebook groups for vintage fly-fishing tackle and hook collecting. Less commonly found at local antique shops or fishing-specific antique malls unless they specialize in tackle.
Collector's Identification Tips
Packaging Text: Look for ‘KINSEY HOOKS’ prominently displayed on the label, along with ‘HORROCKS – IBBOTSON Co.’ at the bottom and the Mustad attribution on a separate yellow label below.
UTK Trademark: The diamond-shaped UTK trademark with ‘TRADE MARK’ text is a strong identifier of Horrocks-Ibbotson branding from the interwar period.
Factory Location: The label reads ‘Christiania – Norway’ rather than ‘Oslo’—a dating clue suggesting manufacture before or during the early 1940s, when the city’s official name changed but ‘Christiania’ remained in common use on packaging.
Ringed Eye: Inspect the eye closely with magnification. A true ringed eye will show a separate ring of wire, often slightly offset or loose, rather than a formed integral eye. This is distinctive and easy to spot once you know what to look for.
Quantity Mark: The box clearly states ‘100’—a standard retail count that helps identify this as a distribution box rather than a custom or rare variant.
Storage and Preservation
Storage Environment: Store the original box in a cool, dry location away from direct sunlight and excessive humidity. Ideal conditions are 50–70°F (10–21°C) and 30–50% relative humidity. High humidity can cause the cardboard to absorb moisture and the japanned finish to develop patina (though collectors often find this desirable). Avoid basements, attics, or areas with temperature fluctuations.
Box Preservation: Keep the box intact and closed. Do not remove the tissue wrapping if present, as it provides additional protection and increases value significantly. If the box is opened, avoid handling the packaging excessively, as oils from skin can accelerate toning of the cardboard and ink fading.
Hook Preservation: The japanned finish is stable but will develop a warm, burnished patina over decades. This is normal and, to many collectors, desirable. Do not attempt to polish or refinish individual hooks, as this destroys authenticity and value. If hooks show any signs of rust (rare in japanned specimens), place the entire box in a breathable container with silica gel packets for 2–3 weeks. Do not use airtight bags, as condensation can form.
Handling: Handle the box by its sides and bottom, never by the top label. If you must handle the hooks, do so sparingly and with dry hands. Wear cotton gloves if handling frequently. Do not stack other objects on top of the box.
Display: If displaying the box, use a glass-fronted cabinet with indirect lighting. Avoid direct sunlight for extended periods, as UV light can fade the label printing and cause uneven patina on the hooks.
Insurance and Documentation: Photograph the box from multiple angles and note the condition before any storage. Keep documentation of the contents (100 hooks, size 14, japanned) in case of loss or damage. Original vintage hook boxes of this quality and completeness are worth documenting for insurance purposes.
Handwritten Marks and Warehouse Notations
Handwritten Mark on Package: A faint handwritten notation is visible on the cream label, appearing to read ‘i c e d’ or similar. This mark was likely made with pencil or fountain pen, suggesting warehouse or retail stock marking—possibly initials of a clerk or shop owner, or a code for inventory management. The handwriting style is consistent with early 20th-century penmanship (loose, flowing cursive). This mark is common on period tackle boxes and does not diminish collecting value; it is, in fact, a mark of authenticity and provenance from actual working stock rather than archive-stored inventory.
Packaging Text and Manufacturing Attribution
Source: Horrocks-Ibbotson Co. Kinsey Hook box labels, c. 1920s–1940s, manufactured by O. Mustad & Son, Christiania, Norway.
Upper Label – Kinsey Attribution: The cream-colored upper label states ‘SPEAR POINT / KINSEY HOOKS / Ringed [left] / Japanned [right]’ with the UTK diamond trademark and ‘HORROCKS – IBBOTSON Co. / MADE IN NORWAY.’ This text establishes the commercial relationship: Horrocks-Ibbotson (the American distributor) claims the product name and branding, while ‘Made in Norway’ acknowledges the manufacturing source. The absence of any Mustad attribution on this label is notable—Mustad’s name appears only on the yellow label below.
Lower Label – Mustad Manufacturing: The yellow label clearly states ‘Manufactured by / O. MUSTAD & SON / Christiania – Norway.’ This is the actual manufacturer’s attribution. The arrangement of two separate labels—one for the distributor brand, one for the manufacturer—was a common practice in the wholesale tackle trade: Horrocks-Ibbotson maintained its brand identity on the primary label, while Mustad received manufacturing credit on a secondary label.
Factory Location – Dating Implication: The use of ‘Christiania’ rather than ‘Oslo’ is significant. Oslo was officially renamed from Christiania in 1925, but ‘Christiania’ remained common on packaging into the 1940s. This label’s use of the older name, combined with the letterpress printing style and cardboard stock, suggests manufacture in the 1920s–1930s period, possibly extending into the early 1940s before Mustad fully standardized to ‘Oslo’.
Finish Specification: The upper label explicitly states ‘Japanned,’ confirming the black lacquer finish visible on the specimen hooks. This level of finish specification was typical of interwar pricing and mail-order catalogs, where finish heavily influenced price and customer choice.
The Ringed-Eye Design: A Forgotten Engineering Innovation
The ringed-eye construction of the Kinsey Hook represents a specific engineering choice that was more common in the early 20th century than in later decades. Unlike a tapered eye (where the wire itself is tapered at the end) or a ball eye (where the wire end is formed into a small ball), a ringed eye uses a separate piece of wire formed into a ring and then attached to the shank, typically via soldering or upset-forging.
This design offered three practical advantages: (1) Reduced stress concentration: By distributing the eye/shank junction over a larger area, ring construction reduced the likelihood of breakage at this high-stress point. (2) Tying access: The ring’s open design made it easier to thread thread or silk through without jamming, compared to a small tapered eye. (3) Rotational freedom: A loose ring could rotate slightly on the shank during casting and play, reducing binding of the tippet or fly line against the hook body.
By the 1950s, improvements in wire forming technology and the standardization of modern eye styles (particularly tapered and ball eyes formed integrally from the shank wire) made ringed eyes obsolete. Most modern hooks use integral eyes. However, ringed-eye hooks are still valued by some fly tiers for their strength and the ease they offer when tying delicate patterns with fine thread. The Kinsey Hook is thus a relic of an earlier era of hook engineering, before integral-eye designs became universal.
Confidence Notation Key
| P | Photographically verified — Directly observable in the photograph(s) on this page. |
| V | Verified by documentation — Confirmed by manufacturer catalog, spec sheet, or published reference. |
| I | Inferred — A logical deduction from observable or documented evidence, not directly stated. |
| E | Estimated — An approximation based on visual comparison, proportional analysis, or limited data. |
| S | Speculative — A reasoned hypothesis that cannot be confirmed from available evidence. |
Claims with no notation are confirmed by multiple independent sources. All photographs on garrenwood.com are taken on a measurement grid where each square equals 1/10 inch (0.1″ / 2.54 mm).
