Mustad Signature Fly Hook, model R50-94840, size 14. A mid-century dry fly hook featuring a Perfect bend (shallow, symmetrical rounded profile) and chemically sharpened needle point. Forged wire in standard gauge (0.02″ diameter) with turned-down ball eye. Bronzed finish. Packaged in original manufacturer box (50 hooks), unusual for the period — most retail stock of this era came on printed cards.
Production era: c. 1960–1975. Dating evidence includes absent barcode (pre-1974 standard), mid-century Mustad logotype and blue/white color scheme on the box, and the “chemically sharpened” specification that Mustad emphasized from the late 1950s onward. The Signature line was introduced as a premium offering positioned above commodity hooks but below specialty patterns, marketed directly to fly tyers and mail-order retailers in North America and Britain.
Collector significance: Rated 4.5/10 for scarcity and demand. The Signature line maintains modest collector interest among fly tyers and hook historians, particularly for the reputation of its sharpened needle points. Original manufacturer boxes are genuinely scarce — most surviving examples are loose hooks or cards — making boxed specimens worth 2–4× the equivalent card value. Size 14 is less common than larger sizes (10–12) but not rare. Excellent condition (sealed or near-sealed) examples command premium prices; worn or incomplete boxes are substantially discounted.
2 cataloged imagesSelect any record to load it above.
2 images shown

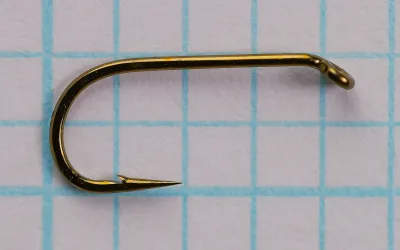

Turned Down Ball Eye | Perfect | Needle Point | Bronzed
The needle point represents a geometrical refinement of the standard spear point, achieved by grinding or honing the two sides of the taper to a nearly symmetrical edge. Chemical sharpening — Mustad’s claimed process — likely involved acid etching or electrochemical honing to achieve the fine edge without removing excess steel, preserving point durability. The Perfect bend’s shallow, rounded geometry distributes hook load evenly across the bend arc, reducing point fracture risk compared to deeply angled bends. Forged wire, created by hammering or pressing the round blank into a flattened cross-section, increases tensile strength and resistance to bending under load; it is particularly beneficial in smaller sizes (14–20) where thin wire might otherwise flex excessively. The standard wire gauge (0.02″ = 0.51 mm at size 14) provides adequate strength for dry fly fishing without excessive mass — important for proper fly flotation and natural presentation. The turned-down ball eye minimizes bulk at the eye, reducing drag resistance on the leader and allowing compact head wrapping for small dry flies. Together, these specifications — forged wire, chemically sharpened needle point, minimal eye profile — define the Signature line’s design intent: a sharp, strong, lightweight dry fly hook suitable for precise presentation of traditional patterns on moderate-flow trout streams.
Known manufactured size range: 10-20 V
Physical measurement with calipers
This pattern was made in sizes 10-20 (V). We have measurement for size 14. Know the others? Submit calipered measurements and we'll review and add them. Thank you!
Sources: this specimen and its packaging.
The Mustad Signature Fly Hook line was introduced in the late 1950s as a mid-premium offering positioned above commodity hook ranges but below specialty patterns. The series emphasized chemically sharpened needle points and precision proportions — marketing language reflecting Mustad’s investment in point-honing processes. Signature hooks came in standard forged wire at multiple bend profiles (Sproat, Perfect, Limerick) and eye styles, packaged in distinctive branded boxes rather than simple cards. The line was marketed directly to fly tyers and mail-order tackle retailers across North America and Britain. Size range extended from 10 to 20 for dry flies, with separate series for wet flies and streamers. The Signature line remained in Mustad’s catalog through the 1970s with stable tooling and consistent packaging design, though production volumes gradually declined as competition from Japanese manufacturers (Daiichi, Tiemco) increased in the 1980s. Surviving original boxes in good condition reflect relatively modest production compared to commodity lines, making the Signature series moderately collectible among hook historians and traditional fly tyers.
No barcode present on box — strong pre-1974 indicator. Packaging design (blue/white color scheme, registration mark placement, italic script logotype) consistent with Mustad mid-century branding. "Precision Proportions" logo in blue appears on late 1950s–1970s Mustad cards. "Chemically Sharpened" claim on packaging reflects Mustad's marketing emphasis on point sharpness from the 1960s onward. Hand-circled category marking ("DRY") suggests field or warehouse notation, common on 1960s–1970s packaged stock. Overall form and print method (offset lithography with hand annotation) places production c. 1960–1975. Signature line itself dates to late 1950s; this specimen's box design and terminology place it in the 1960–1975 window.
The "Signature" branding on Mustad's mid-century fly hooks reflected the company's competitive response to the prestige of British hand-forged hooks from Redditch makers like Partridge and Allcock. Norwegian manufacturing advocates used the signature script motif to suggest personal craftsmanship and individual attention to quality, even though production was fully mechanized. The chemically sharpened needle point was marketed as a scientific advance over traditional hand-ground points, appealing to fly tyers eager for the sharpest possible hook. Ironically, by the 1980s, Japanese manufacturers like Tiemco had adopted even more aggressive chemical honing and laser-sharpening processes, eventually displacing Mustad's claims to point superiority. The Signature line's boxes — particularly those marked with field notations like the hand-circled "DRY" on this specimen — now serve as time capsules of mid-century tackle distribution, revealing how large boxes moved through retail inventory and were sometimes repurposed for warehouse organization.
The Perfect bend — a rounded bottom profile with shallow, symmetrical geometry — originated in nineteenth-century Redditch, England, and became a standard dry fly bend across British and Continental manufacturers. Mustad adopted the Perfect profile early in the twentieth century and refined it through forging optimization. The Signature line’s Perfect bend represents the mid-century Norwegian refinement of this classical geometry. Predecessor hooks include the Mustad 94840 (earlier designation for the same pattern) and standard Mustad hooks from the 1940s–1950s lacking the sharpened-point specification. Competing designs from the period include the Partridge L2A (tapered eye, similar proportions), the Allcock Pennell (longer shank), and the Tiemco 100 (Japanese post-1970s equivalent). The Signature’s needle point — a fine two-sided taper — was Mustad’s answer to British preference for extremely sharp points; later designs including the Tiemco 100 and Daiichi 1170 adopted similar geometries. The line’s influence is visible in subsequent Mustad dry fly offerings through the 1980s, though modern automated honing has supplanted the chemical sharpening process.
| Silhouette | Hook Model | Match | Analysis | Compare |
|---|---|---|---|---|
|
B175 No. 6 — Trout Heavy Traditional | 82% | Compare | |
|
S82-3906B No. 16 — Signature Fly Hooks | 77% | Compare | |
|
Blue Label 2x Fine TDE No. 14 — Blue Label | 76% | Compare | |
|
R50 No. 10 — Signature | 75% | Compare | |
|
W172 No. 14 — Allcocks W172 | 74% | Compare |
| Silhouette | Hook Model | Match | Compare |
|---|---|---|---|
|
CS7 HW BL No. 10 — CS7 Wide Gape Captain Hamilton International Heavyweight | 79% | Compare |
|
4xFF — 4x Fine Forged | 74% | Compare |
|
7947 B No. 12 — Mustad 7947 B | 72% | Compare |
|
|
S82-3906B No. 16 — Signature Fly Hooks | 70% | Compare |
|
L3A No. 12 — Captain Hamilton Dry Fly (Down Eye) | 70% | Compare |
| Hook | Match Quality | Notes |
|---|---|---|
| Tiemco TMC 100 | Excellent | Direct modern equivalent — Perfect bend, needle point, turned-down eye, standard proportions for size 14 dry flies. |
| Daiichi 1170 | Very Good | Japanese precision equivalent with similar bend geometry and point style; slightly finer wire in equivalent sizes. |
| Tiemco TMC 5210 | Very Good | Alternative Perfect bend profile with needle point; marginal size variation but functionally equivalent. |
| Ahrex FW500 | Good | Modern forged wire dry fly hook with Perfect bend; contemporary honing replaces chemical sharpening process. |
| Dai-Riki 300 | Good | Japanese standard dry fly hook with similar specifications; available in equivalent size range. |
Rated 4.5/10 — a mid-era Mustad dry fly hook with solid collector interest among fly tyers and hook historians, but not rare. The Signature line's quality reputation and chemically sharpened needle point drive modest collector demand. Larger sizes (10–12) remain common; size 14 is less frequently encountered. Original manufacturer box packaging is uncommon and adds significant premium over loose hooks.
Positive factors: Mustad’s mid-century Signature line is recognized for quality construction and sharp needle points. The chemically sharpened specification (printed on packaging) appeals to tyers seeking historical point geometry. Forged wire adds strength and collector interest. Original manufacturer box, rather than card, is a meaningful scarcity — boxes are rarer than cards and command 2–4× the equivalent card value.
Limiting factors: Mustad industrial production volumes mean few examples reach true rarity status regardless of age. Size 14 is less common than sizes 10–12 but not scarce. The Signature line was produced across multiple decades with stable tooling, reducing dating significance. Unboxed loose hooks have minimal premium.
Condition impact: Sealed box in excellent condition: high premium (museum-quality storage). Opened box with complete hook count: substantial value. Missing hooks or box damage: significant deduction. Packaging condition is the primary value driver for this format.

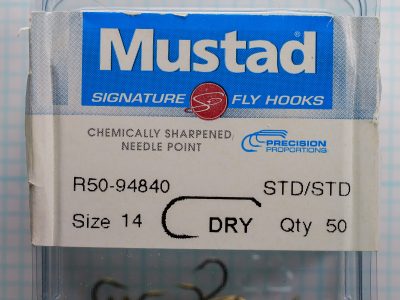

Manufacturer box — rigid two-piece construction (lid and base). Exterior: bright blue upper panel with large white sans-serif "Mustad" logotype and registered trademark. Center band: italic white text "SIGNATURE FLY HOOKS" flanking a red circular medallion with signature script motif. Lower panel: white stock with black sans-serif printing. Text elements: "CHEMICALLY SHARPENED" (emphasized); "NEEDLE POINT"; "Precision Proportions" logo in blue; model code "R50-94840" left-aligned; specification "STD/STD" right-aligned; size designation "Size 14" centered; hook category "DRY" circled in black pen (likely field marking); quantity "Qty 50" right-aligned. Box shows light creasing on edges; lid exhibits minor crease line. Overall condition: very good. No barcode visible (pre-1974 indicator). Interior lining not visible in photographs.
Low ($8): Good condition — opened box, complete or near-complete hook count (48–50 of 50), minor box wear acceptable.
High ($28): Excellent/Mint condition — sealed or near-sealed box, full hook count, minimal wear to packaging and hooks.
Premium factors: Original manufacturer box (2–4× card value); sealed status; full hook count; sharp needle points still evident; Signature brand recognition among tyers.
Platforms: eBay (US and UK), specialized tackle dealers, online vintage hook retailers.
Confidence: E estimated — limited specific eBay sold data for this exact model in box format; estimate based on comparable Mustad dry fly boxes and card equivalents scaled for rarity of box format.
eBay (both US and UK sites); specialized vintage fly tackle dealers; online vintage hook retailers; periodic listings on regional tackle swap sites and fishing heritage forums.
| P | Photographically verified — Directly observable in the photograph(s) on this page. |
| V | Verified by documentation — Confirmed by manufacturer catalog, spec sheet, or published reference. |
| I | Inferred — A logical deduction from observable or documented evidence, not directly stated. |
| E | Estimated — An approximation based on visual comparison, proportional analysis, or limited data. |
| S | Speculative — A reasoned hypothesis that cannot be confirmed from available evidence. |
Unnotated claims are the compiler’s synthesis; see Sources. All photographs on garrenwood.com are taken on a measurement grid where each square equals 1/10 inch (0.1″ / 2.54 mm).
